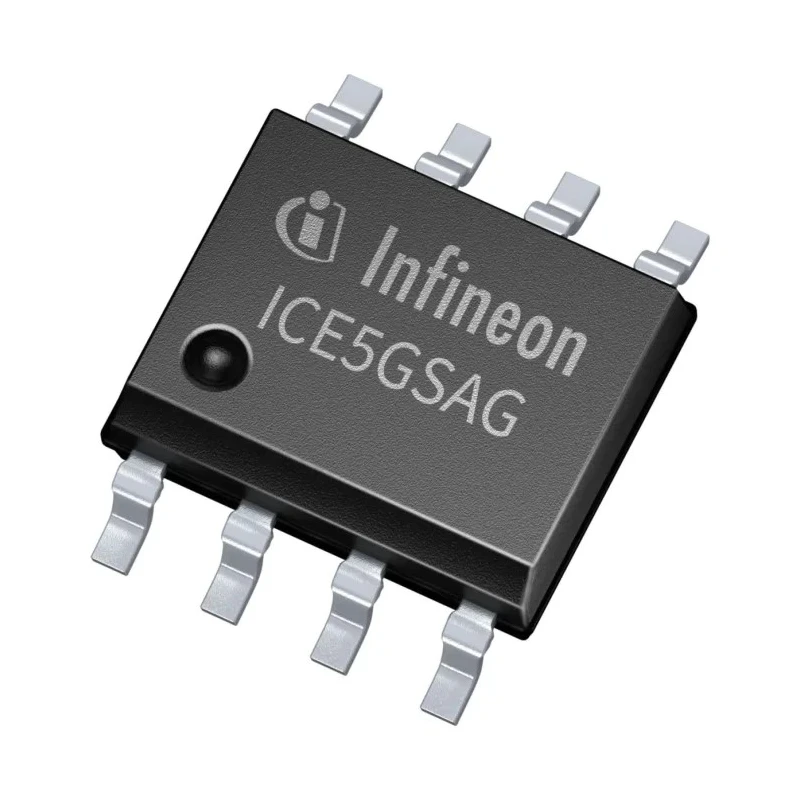

Infineon AC/DC Converter Flyback Topology Surface Mount 8-Pin DSO Package 125kHz Switching Frequency 108W ICE5GSAGXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon AC/DC Converter Flyback Topology Surface Mount 8-Pin DSO Package 125kHz Switching Frequency 108W ICE5GSAGXUMA1

Name: Infineon AC/DC Converter Flyback Topology Surface Mount 8-Pin DSO Package 125kHz Switching Frequency 108W ICE5GSAGXUMA1
Brand: Infineon
SKU: 170469
Price: 0.69 USD
Availability: InStock



Category AC/DC Converter Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.75mm
Length	5mm
Model	ICE5GSAGXUMA1
Width	6.2mm
Output Power	108W
Mount Type	Surface
Maximum Duty Cycle	75%
Series	ICE5xSAG
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Switching Frequency	125kHz
Maximum Input Voltage	300V ac
Standards/Approvals	RoHS
Maximum Output Voltage	13V
Minimum Input Voltage	85V ac
Pin Count	8
Minimum Output Voltage	8V

Key Features

Operates with input voltage range of 85V to 300V AC.
Provides output voltage between 8V and 13V with 108W output power.
Utilizes an 8-pin DSO package ensuring compact footprint.
Switching frequency is fixed at 125kHz for optimal performance.
Maximum duty cycle of 75% for stable operation.
Functions reliably within temperature range of -40°C to 150°C.
Complies with RoHS standards for environmental safety.
Compact dimensions with 5mm length, 6.2mm width, and 1.75mm height.

Product Description

The Infineon ICE5GSAGXUMA1 is a high-performance AC/DC Converter designed for power management applications. This device uses a flyback topology and operates with a fixed frequency pulse-width modulation (PWM) controller featuring enhanced active burst mode, aimed at minimizing standby power consumption. The 8-pin DSO surface mount package provides a compact footprint suitable for modern electronic designs.

It accepts a wide input voltage range from 85V AC minimum to 300V AC maximum and delivers an output voltage between 8V and 13V, supporting an output power of up to 108W. The fixed switching frequency of 125kHz ensures efficient power conversion and reduced electromagnetic interference. With a maximum duty cycle of 75%, this converter maintains stable operation under varying load conditions.

Operating temperature is rated from -40°C to 150°C, allowing robust performance in demanding industrial and commercial environments. The product complies with RoHS standards ensuring environmental compliance and safety.

The compact physical dimensions of 5mm length, 6.2mm width, and 1.75mm height make it suitable for applications where space is premium, including power supplies for telecommunications, consumer electronics, and industrial controls.

Operates with input voltage range of 85V to 300V AC. Output voltage range between 8V and 13V with 108W power capacity. Flyback topology ensures efficient power conversion. 8-pin DSO surface mount package with compact dimensions.

Fixed switching frequency of 125kHz for stable switching. Maximum duty cycle of 75% for operational stability. Wide operating temperature range from -40°C to 150°C. RoHS compliant for environmental safety. Suitable for use in industrial, commercial, and electronic device power supplies.
