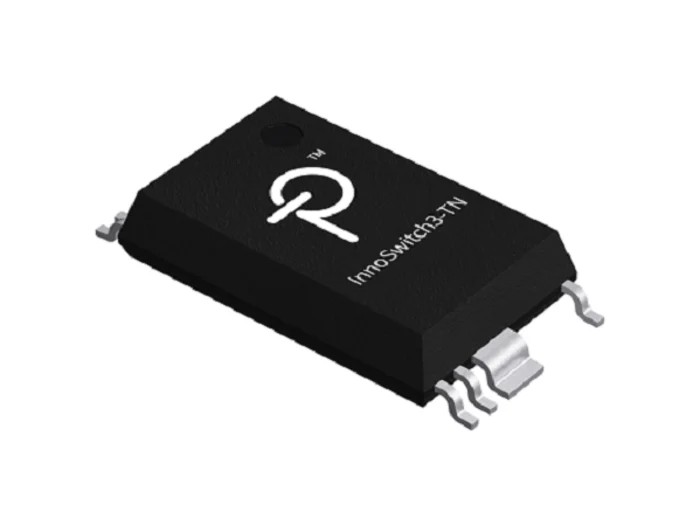

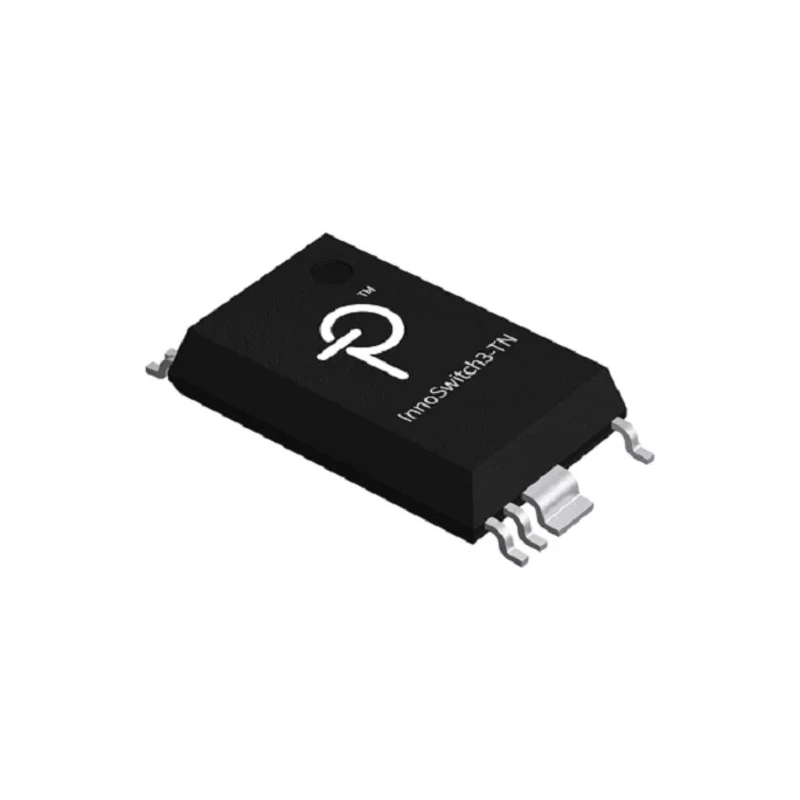

Power Integrations AC/DC Converter 3 A 5V 16-Pin MinSOP INN3074M-H606-TL

Power Integrations INN3074M-H606-TL AC/DC Converter is a high efficiency off-line flyback switcher IC capable of delivering 3 A output current at 5V output voltage. It comes in a compact 16-pin MinSOP surface mount package designed to maximize power density and reduce PCB area. This converter supports a wide input voltage range from 85V to 265V, enabling its use in diverse power environments.

The device operates at a switching frequency of 95kHz, which allows achieving optimal efficiency of up to 90% across the full load range and very low no-load power consumption. Its robust thermal performance with minimum and maximum operating temperatures from -40°C to 150°C ensures reliable operation in harsh industrial and consumer product conditions.

This converter IC complies with strict international standards including VDE 0884-17 (EN60747-17), CQC (GB4943.1), EN61000-4 suite, UL1577, and TUV (EN62368-1) ensuring safety and electromagnetic compatibility. Its flyback topology is suitable for isolated and non-isolated power supplies, making it ideal for auxiliary power supplies in appliances, consumer electronics, and industrial applications.

The MinSOP package integrates features such as output over-voltage protection and open-gate detection to improve system safety and efficiency. This device supports surface mount technology enabling compact PCB designs in power supply modules.

Typical applications include industrial power supplies, consumer product adapters, and compact appliance power supplies requiring efficient AC/DC conversion with thermal stability and safety standards.

Supports maximum input voltage of 265V and minimum input voltage of 85V. Provides output power of 21W with surface mount type package. Operates at switching frequency of 95kHz for efficient power conversion. Designed to function reliably in temperature range from -40°C to 150°C.

Meets multiple standards including VDE 0884-17, CQC, EN61000-4 suite, UL1577, and TUV certifications. Compact MinSOP package reduces PCB area allowing smaller designs. Ideal for auxiliary power supplies in appliances, consumer products, and industrial equipment.

Features integrated output over-voltage protection and open-gate detection for SR FET.
