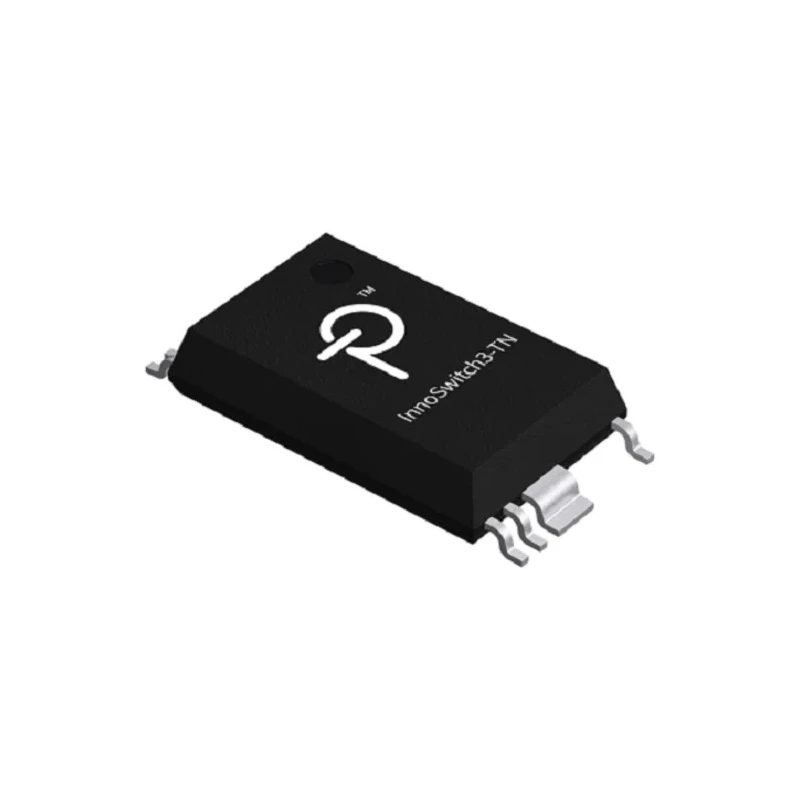

Power Integrations AC/DC Converter 3 A, 5V, 16-Pin MinSOP InnoSwitch3-TN Series INN3072M-H606-TL

Power Integrations INN3072M-H606-TL is a high efficiency AC/DC converter IC designed for off-line flyback power supplies. This 16-pin MinSOP package device belongs to the InnoSwitch3-TN series and supports a maximum input voltage of 265 volts with a minimum input voltage of 85 volts, making it suitable for a wide range of power systems.

The converter delivers a stable 5 volt output at up to 3 amperes output current with a total output power rating of 10 watts. It operates at a switching frequency of 90 kHz, which enhances efficiency and reduces power loss. The compact MinSOP package is designed for surface mount technology with overall dimensions of 9 mm length, 5.61 mm width, and 1.94 mm height, minimizing PCB space requirements.

The device supports a wide operating temperature range from -40°C to 150°C, ensuring dependable operation under harsh industrial conditions. It features integrated output over-voltage protection and open-gate detection for synchronous rectification FETs to enhance system safety and performance.

Certified to multiple safety and electromagnetic standards, including TUV EN62368-1, UL1577, EN61000-4 series, and VDE 0884-17, this converter meets international compliance for power management ICs.

Maximum input voltage: 265 V. Output voltage: 5 V. Maximum output current: 3 A. Output power: 10 W. Switching frequency: 90 kHz. Package type: 16-pin MinSOP. Operating temperature: -40°C to 150°C.

This AC/DC Converter is ideal for use in industrial power supplies, consumer electronics, commercial appliances, and other applications requiring efficient and reliable isolated or non-isolated power conversion.
