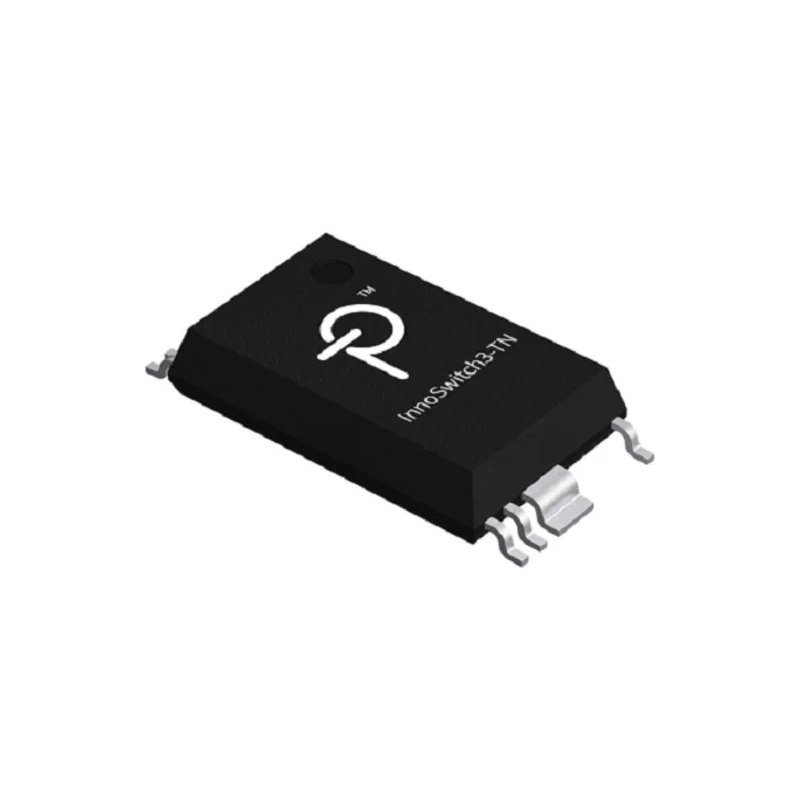

Power Integrations AC/DC Converter 3 A, 5V Output, 16-Pin MinSOP Surface Mount INN3072M-H606-TL

Power Integrations INN3072M-H606-TL is an advanced AC/DC Converter integrated circuit designed for high-efficiency auxiliary power supplies. This IC supports a maximum input voltage of 265V and a stable 5V output at up to 3A current, delivering 10W output power with a compact 16-pin MinSOP surface mount form factor.

The INN3072M-H606-TL incorporates a flyback switching topology allowing up to 90% efficiency at full load and maintains flat efficiency throughout the operating range. Its switching frequency is 90kHz, facilitating reduced electromagnetic interference and improved regulation.

With dimensions of 9mm by 5.61mm by 1.94mm, this surface mount device reduces PCB area requirements, beneficial in space-constrained applications. It functions effectively across a wide temperature range from -40°C to 150°C, supporting reliability in industrial and commercial environments.

Safety features include integrated over-voltage protection and open-gate detection tailored for synchronous rectification FETs, enhancing system protection and performance. The device is certified to standards such as TUV EN62368-1, UL1577, and various EN61000-4 immunity suite tests, ensuring compliance for industrial use.

This converter IC is suitable for isolated and non-isolated power supply designs commonly found in consumer electronics, industrial equipment, and household appliances. Its compact size and efficiency make it an ideal choice for modern power management solutions.

Operates with an input voltage range of 85V to 265V. Provides 10W output power suitable for auxiliary power supplies. Employs high-efficiency flyback switching technology for up to 90% full load efficiency. Supports a switching frequency of 90kHz for stable performance.

Compact dimensions of 9mm length, 5.61mm width, and 1.94mm height minimize PCB footprint. Wide operating temperature range from -40°C to 150°C for harsh environments. Includes integrated output over-voltage protection and open-gate detection for synchronous rectification FETs.

Complies with multiple safety standards including TUV EN62368-1 and UL1577. Ideal for isolated and non-isolated industrial, consumer, and appliance power supply designs. Explore more in the Power Management ICs category at EnvMart for reliable and efficient power conversion solutions.
