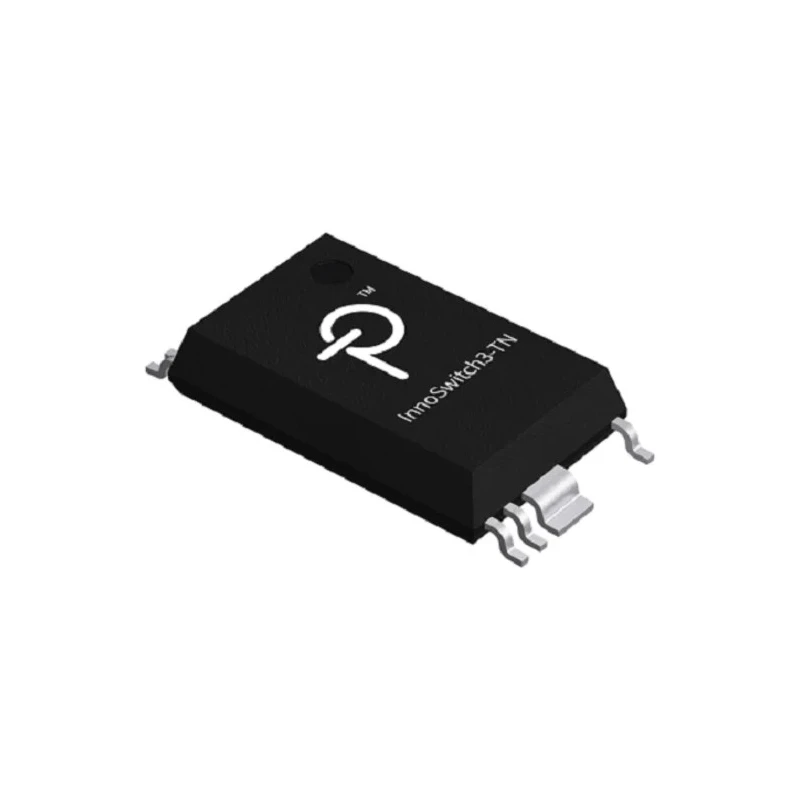

Power Integrations AC/DC Converter 3 A, 5V, 16-Pin MinSOP Surface Mount Flyback Controller INN3074M-H606-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Model | INN3074M-H606-TL |
| Output Power | 21W |
| Mount Type | Surface |
| Series | TN |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | MinSOP |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 95kHz |
| Maximum Input Voltage | 265V |
| Maximum Output Current | 3A |
| Maximum Output Voltage | 5V |
| Minimum Input Voltage | 85V |
| Pin Count | 16 |
Key Features
- The flyback controller IC provides high efficiency and low no-load consumption.
- Designed for use in appliances, consumer products, and industrial applications.
- Supports a wide input voltage range from 85 V to 265 V.
- Operates with switching frequency of 95 kHz ensuring stable performance.
- Compact MinSOP package reduces PCB area consumption.
- Integrated output over-voltage protection enhances device safety.
- Operating temperature ranges from -40°C to 150°C for robust environmental tolerance.
- Meets multiple safety and performance standards including VDE, UL1577, and TUV certifications.
Product Description
Power Integrations INN3074M-H606-TL is a high efficiency off-line flyback switcher integrated circuit designed for isolated and non-isolated AC/DC power conversion applications. The device is packaged in a MinSOP 16-pin surface mount footprint, significantly reducing PCB space and enabling compact designs.
Capable of delivering up to 3 A output current at 5 V output voltage and 21 W output power, this controller IC supports a wide input voltage range of 85 V minimum to 265 V maximum, making it suitable for global power applications. The IC features a switching frequency of 95 kHz enabling efficient power conversion with low losses, achieving up to 90% full load efficiency.
With an operating temperature range from -40°C to 150°C, the INN3074M-H606-TL maintains reliable operation in demanding industrial and consumer environments. It incorporates integrated output over-voltage protection and open-gate detection for synchronous rectifier field-effect transistors (SR FETs), ensuring enhanced circuit protection and energy savings.
The product complies with key industrial safety and performance standards including VDE 0884-17 (EN60747-17), CQC (GB4943.1), multiple EN61000-4 electromagnetic compatibility tests, UL1577 and TUV (EN62368-1) approvals. It belongs to the TN series of Power Integrations flyback controller ICs and is not rated for automotive standard use.
High efficiency flyback controller for isolated and non-isolated AC/DC power supplies. Compact MinSOP 16-pin surface mount package saves PCB space. Wide input voltage range from 85 V to 265 V AC. Up to 3 A output current and 21 W output power capability.
Switching frequency of 95 kHz for stable and efficient operation. Integrated output over-voltage protection and open-gate detection. Operating temperature range -40°C to 150°C for robust applications. Certification compliance with VDE, UL, TUV, CQC, and electromagnetic compatibility standards.
This AC/DC Converter IC is ideal for industrial manufacturing, consumer electronics, embedded power supplies, and appliance power management systems where compact size, efficiency, and safety are critical.
