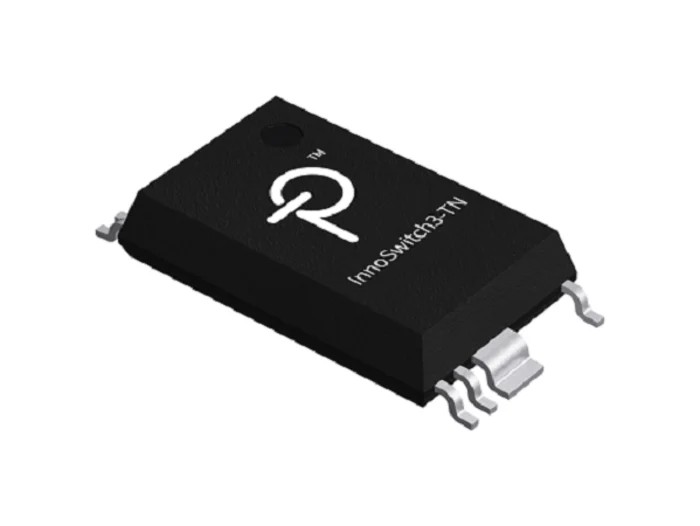

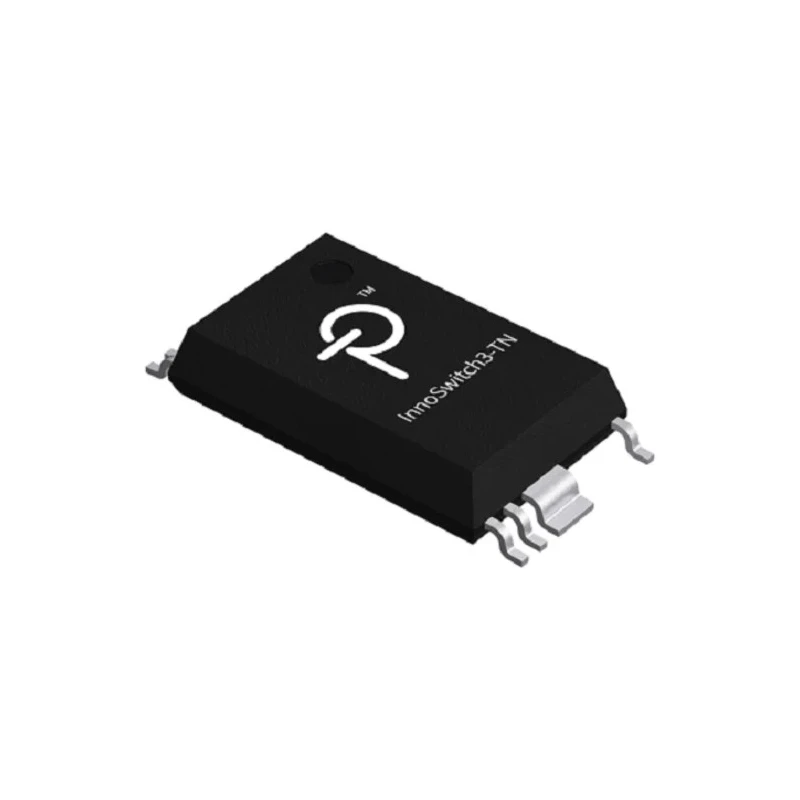

Power Integrations AC/DC Converter 3A 5V 16-Pin MinSOP INN3074M-H606-TL

Power Integrations INN3074M-H606-TL is a high-efficiency AC/DC converter IC that delivers a maximum output current of 3 Amps at 5 Volts. Packaged in a compact 16-pin MinSOP surface mount package, it is engineered for compactness and peak efficiency in auxiliary power supplies.

This power management IC operates with a switching frequency of 95kHz, enabling improved efficiency and reduced electromagnetic interference. Its flyback topology supports both isolated and non-isolated power designs, making it suitable for a wide range of industrial, consumer, and appliance power applications.

Designed to withstand input voltages from 85V up to 265V AC, it supports reliable operation across various power grids. The device maintains operational integrity over an extended temperature range from -40°C to 150°C, making it ideal for industrial and demanding environments.

Safety and compliance are ensured with multiple international certifications including VDE 0884-17 (EN60747-17), CQC (GB4943.1), EN61000-4 electromagnetic compatibility standards, UL1577, and TUV (EN62368-1). Energy-saving Eco Smart technology minimizes power consumption at no load, reducing standby power usage.

The integrated output over-voltage protection and open-gate detection functions enhance device protection and switching efficiency for synchronous rectifier MOSFETs. This makes the converter ideal for applications in power supplies for industrial automation, consumer electronics, home appliances, and telecommunications.

Maximum input voltage rating of 265V for broad input compatibility. Output power rating of 21W with 3A maximum output current. Compact 16-pin MinSOP surface mount package reduces PCB size. Wide temperature range from -40°C to 150°C for harsh conditions.

Meets multiple international safety and EMC standards. Flyback converter topology supports isolated designs. Eco Smart technology for energy-efficient standby operation. Integrated output over-voltage protection for circuit safety.

Open-gate detection improves synchronous rectifier performance.

For designers and engineers looking for a reliable and efficient AC/DC power conversion solution, the Power Integrations INN3074M-H606-TL offers advanced features and robust performance. Explore more products in the AC/DC Converters category on EnvMart for comprehensive power management solutions.
