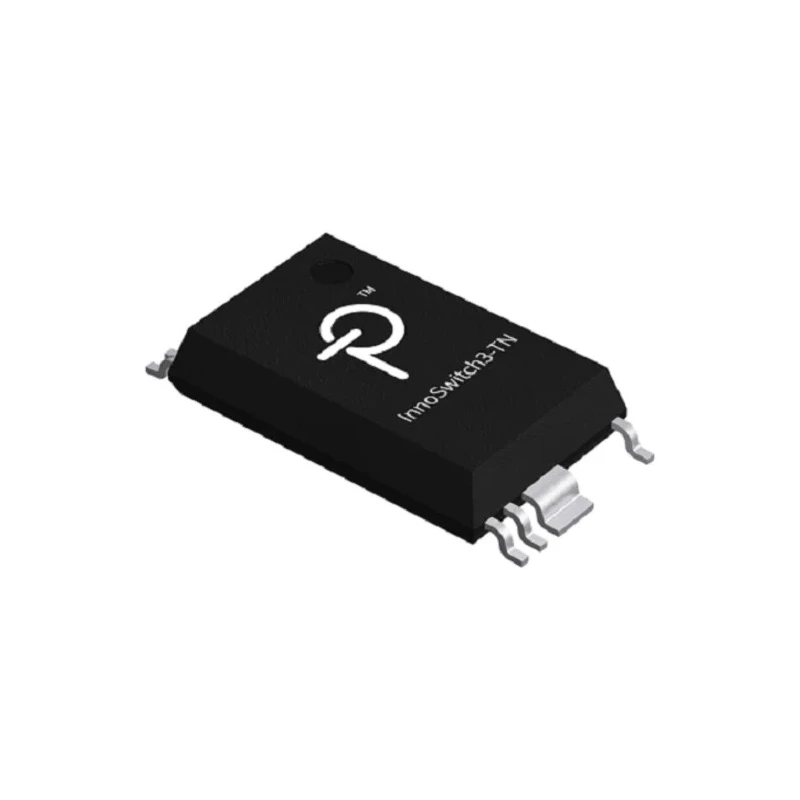

Power Integrations AC/DC Converter 3 A 5V 16-Pin MinSOP Surface Mount Packaging INN3072M-H606-TL

Power Integrations INN3072M-H606-TL AC/DC Converter is a surface mount, 16-pin MinSOP packaged switched-mode power supply controller designed for use in auxiliary power supplies of appliances, consumer electronics, and industrial equipment. It supports a wide input voltage range from 85 V to 265 V and provides a regulated 5 V output with a maximum current of 3 A, delivering up to 10 W output power.

This device operates at a switching frequency of 90 kHz and achieves high efficiency up to 90%, with minimal power loss under load or no-load conditions, making it suitable for energy-efficient, compact power supply designs.

The converter is engineered to operate reliably in harsh environments with an extended operating temperature range from -40°C to 150°C. It is compliant with internationally recognized standards including TUV EN62368-1, UL1577, EN61000-4 suite for electromagnetic compatibility, VDE 0884-17, and CQC GB4943.1 approvals, ensuring safety and performance consistency.

The small MinSOP package with a compact footprint reduces the PCB area required, which is advantageous for space-constrained applications. It supports surface mount technology with 16 pins facilitating secure and efficient PCB integration.

Ideal for both isolated and non-isolated power supply designs, this converter features integrated output over-voltage protection and open-gate detection for synchronous rectifier MOSFETs, enhancing power supply reliability and performance.

Operates with a maximum input voltage of 265 V providing stable output at 5 V. It delivers an output power of 10 W with a 3 A maximum output current. Includes a switching frequency of 90 kHz for high-efficiency regulation.

Encased in a compact MinSOP package, reducing PCB space requirements. Rated for operating temperatures from -40°C to 150°C for robust performance. Built for surface mount mounting with 16 pins for secure connections. Designed to meet multiple safety and electromagnetic standards including TUV, UL, EN, and VDE certifications.

Part of the InnoSwitch3-TN series optimized for industrial and consumer electronics applications.

This AC/DC converter is widely applicable in industrial equipment, consumer electronics, household appliances, and power management systems requiring efficient and compact power supply solutions.
