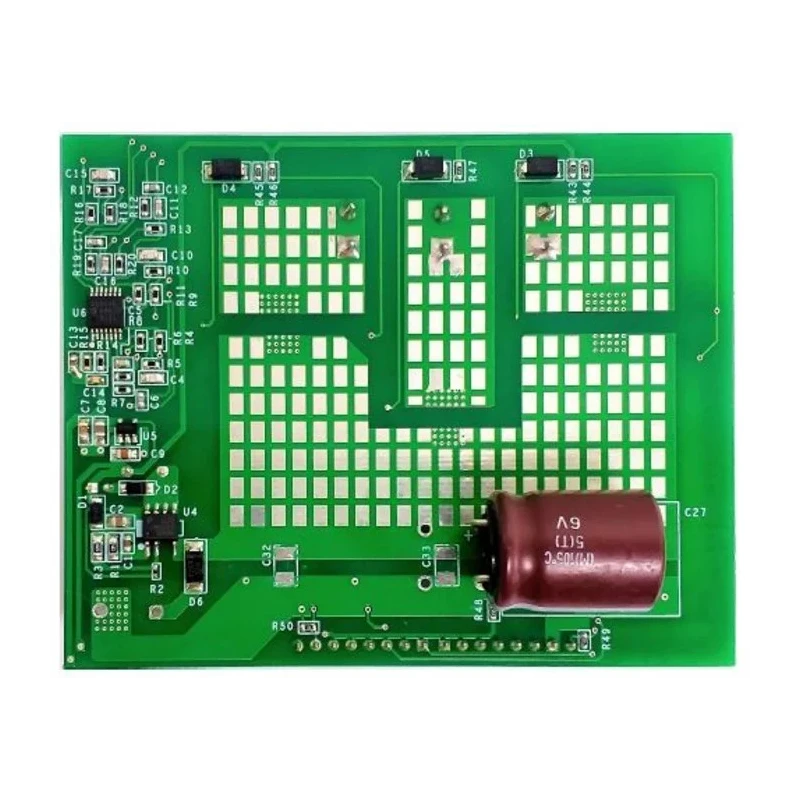

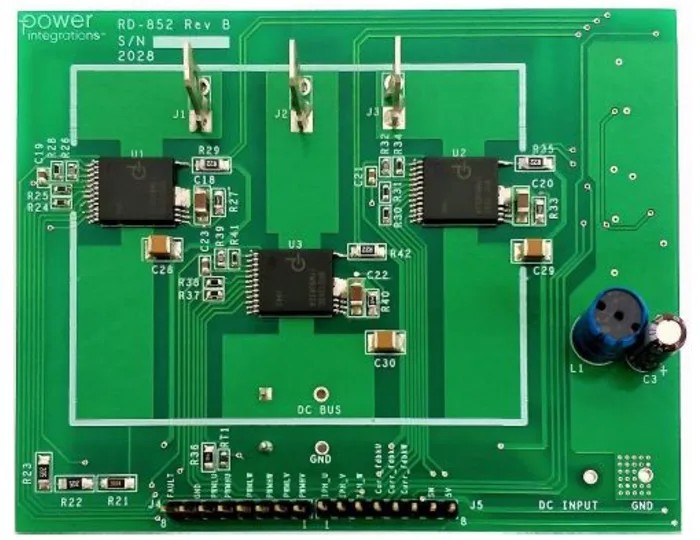

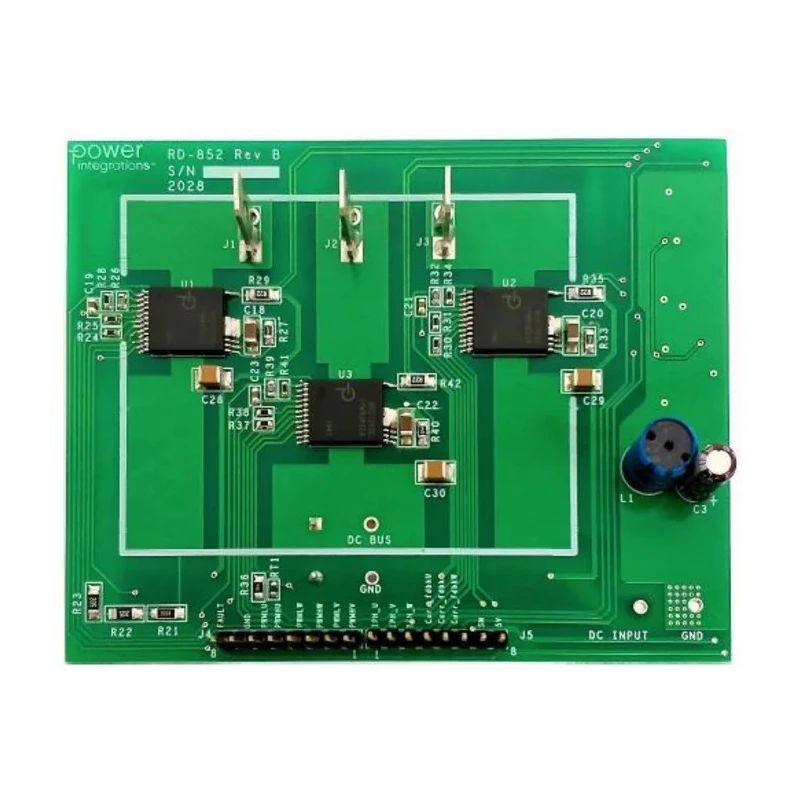

Power Integrations 200 Watt 3-Phase Inverter for Brushless DC Motor RDK-852

Power Integrations RDK-852 is a 200 watt 3-phase inverter development kit designed specifically for brushless DC motor control applications. It features the bridge switch BLDC motor driver IC BRD1263C and the link switch-TN2 LNK3204D operating with field oriented control methods for precise motor drive.

The device supports a 340 volt DC input supply, enabling it to handle demanding operational conditions with reliability.

The link switch in this design supplies the current sense amplifier and optionally provides external bias for the bridge switch, contributing to a fully self-biased operation that reduces the need for additional external components.

System level temperature monitoring is integrated to ensure operational safety and to prevent overheating during use. Communication with the inverter is facilitated through a single wire status update bus, simplifying system diagnostics and control.

Fault protection is provided by the high level of integration of the bridge switch half bridge motor driver IC, enhancing the overall robustness of the inverter circuit.

This reference design development kit aids engineers and developers in creating efficient brushless DC motor control systems, suitable for industrial, robotics, and automation applications.

The inverter supports a 340 volt DC input for robust operation. Uses a bridge switch BLDC motor driver IC BRD1263C for efficient motor driving. Incorporates link switch-TN2 LNK3204D for current sense amplification and biasing.

Features fully self-biased operation to reduce external components. Provides system level temperature monitoring for enhanced reliability. Includes single wire status update communication bus for system integration. Offers fault protection via high integration of bridge switch half bridge motor driver IC.

Classified as a reference design development kit for power management applications.
