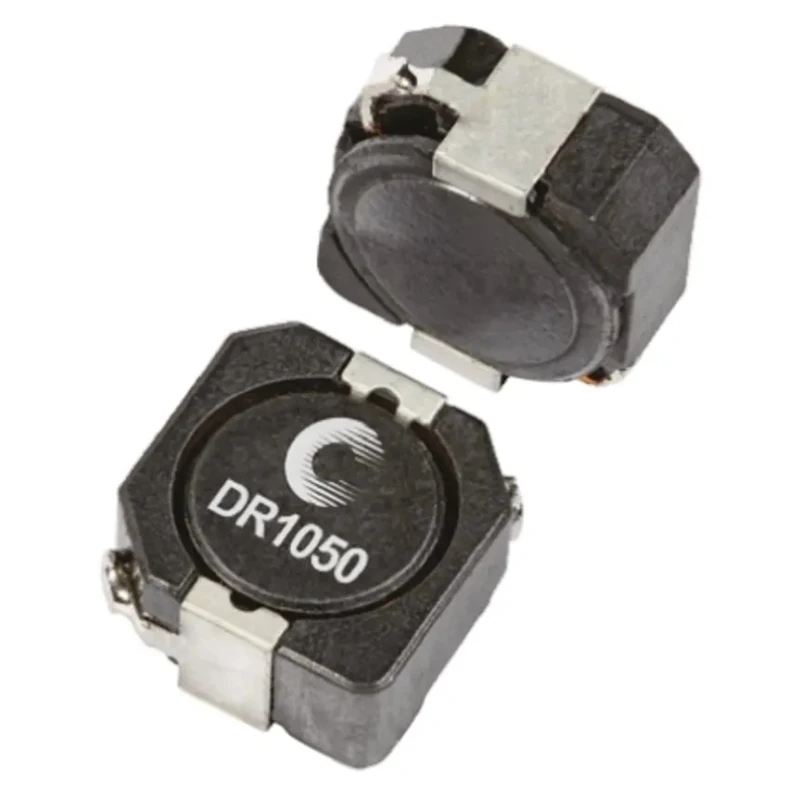

Eaton Shielded Wirewound Surface Mount Inductor 10 μH ±30 % 4.8 A Idc Ferrite Core DR1050

Eaton DR1050 shielded wirewound surface mount inductor with a ferrite core delivers a 10 μH inductance value, ideal for applications requiring robust noise filtering and power management.

This inductor supports a maximum DC current of 4.8 A and operates efficiently up to 125°C, making it suitable for demanding industrial, electronics manufacturing, and consumer device applications.

The DR1050 series offers magnetically shielded wirewound chokes in a low profile SMD format with dimensions 10.5mm × 10.3mm × 5.0mm, fitting compact PCB designs.

Its construction employs wirewound inductors with a ferrite core providing effective electromagnetic interference reduction, perfect for use in computers, DVD players, notebook power supplies, LCD panels, DC-DC converters, buck, boost, forward and resonant converters.

Designed with a surface mount termination style and delivered on reels, this component provides ease of integration for automated assembly lines. The inductance tolerance of ±30 % allows for flexibility in various electrical environments while maintaining performance integrity.

Compliance with RoHS ensures this Eaton component meets environmental and regulatory standards necessary for global markets. Low profile and magnetically shielded ferrite core design. Inductance of 10 μH with ±30 % tolerance.

Maximum DC current rating at 4.8 A. Suitable maximum operating temperature of 125°C. Compact dimensions facilitate space-saving circuit layouts. Surface mount termination for efficient PCB assembly. RoHS compliant for environmental safety.

Maximum self-resonant frequency of 1 MHz.

This Eaton DR1050 inductor is ideal for industrial and commercial electronic applications such as power supplies, filtering components, and advanced circuit designs. Explore the extensive range of high-performance Inductors and related electronic components at EnvMart to find solutions optimized for your projects.
