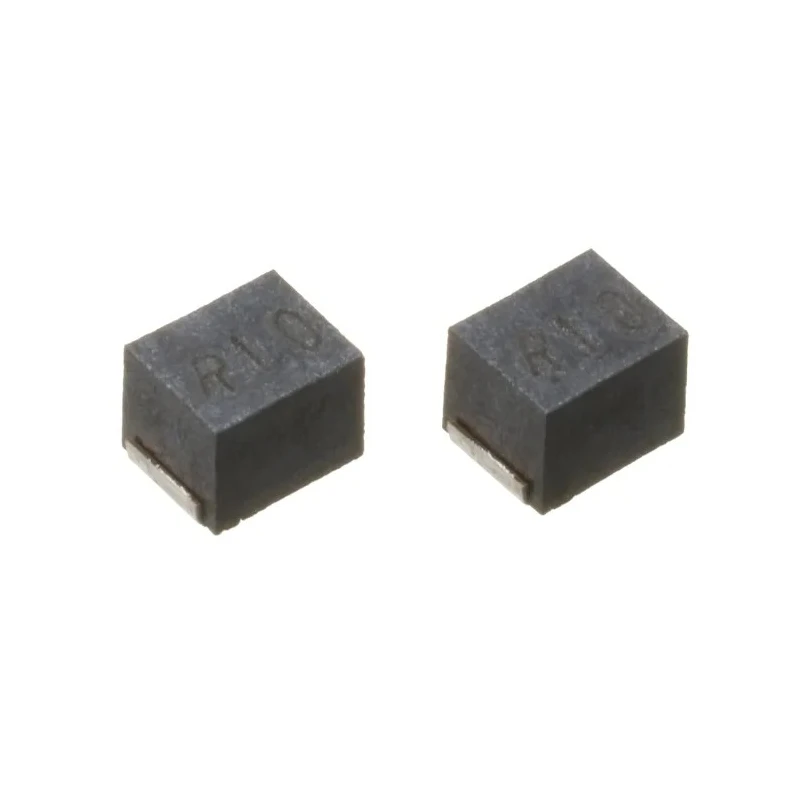

TDK 3225 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±10% 450 mA Idc Q:15 NLCV32T-100K-EF

Free Delivery in India | Lowest Global Shipping Charges

TDK 3225 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±10% 450 mA Idc Q:15 NLCV32T-100K-EF



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	2.2mm
Length	3.2mm
Model	NLCV32T-100K-EF
Depth	2.5mm
Packaging	Tape & Reel
Series	NLCV-EF
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	3225
Maximum DC Current	450mA
Pin Count	2
Maximum DC Resistance	360mΩ
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	30MHz
Minimum Quality Factor	15
Inductor Construction	Wirewound

Key Features

Constructed with a ferrite core for optimal magnetic performance.
Wirewound design enhances reliability and current handling.
Maximum DC current of 450 mA suitable for low-power circuits.
Compact 3225 package measuring 3.2 mm x 2.5 mm x 2.2 mm.
RoHS compliant, ensuring environmental safety.
Operates reliably from -40°C up to 105°C.
Inductance tolerance of ±10% for precise filtering applications.
Maximum DC resistance of 360 mΩ minimizes loss.

Product Description

TDK NLCV32T-100K-EF is a 3225 unshielded wirewound surface mount inductor designed with a ferrite core, providing an inductance of 10 μH with ±10% tolerance and a quality factor (Q) of 15. It supports a maximum DC current of 450 mA and operates efficiently across a temperature range from -40°C to 105°C.

This inductor is packaged in a compact 3225 case measuring 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, making it suitable for space-constrained electronic designs. The wirewound construction ensures high reliability and consistent inductance values, ideal for power line filtering and signal processing in industrial and consumer electronics.

Featuring RoHS compliance and a solder termination style, this inductor supports standard surface mount technology assembly processes. Its maximum DC resistance of 360 mΩ ensures low power loss, while the maximum self-resonant frequency of 30 MHz allows for use in moderately high-frequency circuits.

Typical applications include audio-visual equipment, digital cameras, onboard automotive electronics, and other industrial electronic devices where stable inductance and compact size are critical. The high temperature rating up to 105°C supports demanding operating environments.

Constructed with ferrite core material for stable inductance. Wirewound surface mount design for durability and performance. 10 μH inductance with ±10% tolerance ensures precision. Supports 450 mA maximum DC current for low to moderate power applications.

Compact 3225 package for efficient PCB space usage. Operating temperature range from -40°C to 105°C suitable for harsh environments. RoHS compliant for environmental and regulatory standards. Solder termination style compatible with standard SMT processes.

Maximum DC resistance of 360 mΩ limits power dissipation. Maximum self-resonant frequency of 30 MHz enables versatile circuit integration.

This surface mount inductor from TDK is ideal for industrial, automotive, consumer electronics, and manufacturing applications. Browse more Surface Mount Inductor products on EnvMart to find complementary components and design solutions.
