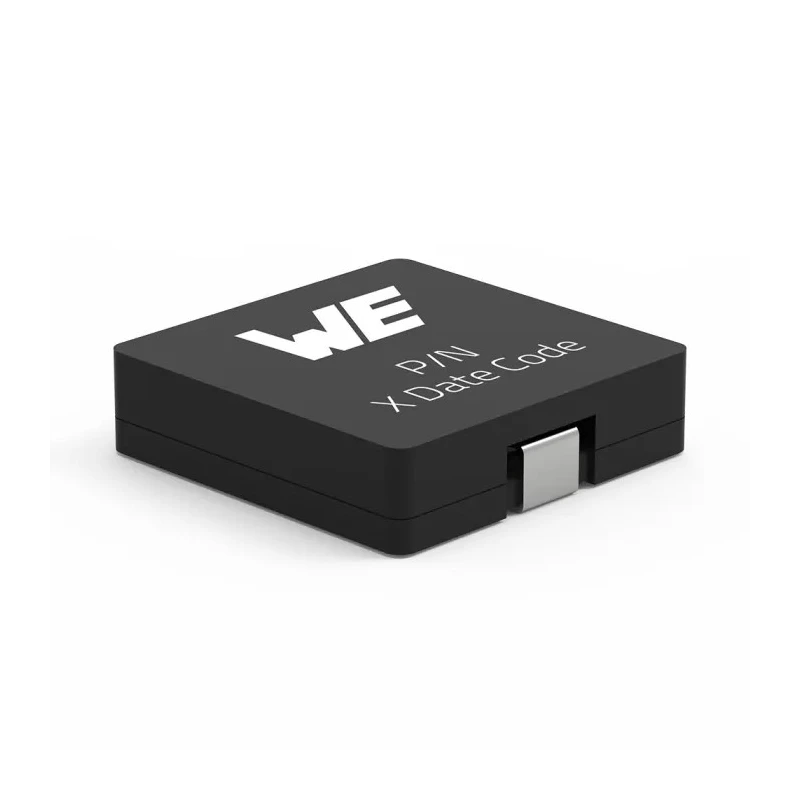

Wurth Elektronik WE-HCI 2212 Shielded Wirewound Surface Mount Inductor 68μH 7.5A Manganese Zinc Ferrite Core 74435586800
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 12mm |
| Length | 22.5mm |
| Depth | 22mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 68μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 2212 |
| Maximum DC Current | 7.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 27.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a compact 2212 package case suitable for surface mounting.
- It includes magnetic shielding to minimize interference and ensure stable operation.
- The flat wire winding design provides low DC resistance and high current handling.
- Operates reliably between -40°C to 125°C temperature range.
- Inductance tolerance is ±20%, supporting various industrial applications.
- Compliance with AEC-Q200 automotive standard ensures quality and durability.
- Available in tape and reel packaging for manufacturing efficiency.
- Ideal for use in DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators.
Product Description
Wurth Elektronik 74435586800 WE-HCI series shielded wirewound surface mount inductor offers an inductance value of 68μH utilizing a manganese zinc ferrite core. Rated for a maximum DC current of 7.5A, this inductor is built to handle high current loads efficiently in demanding industrial and electronic applications.
Packaged in a 2212 case style with surface mount termination, it features magnetic shielding to reduce stray electromagnetic fields and improve circuit stability. The flat wire winding construction yields very low DC resistance of 27.3mΩ and a maximum self-resonant frequency of 5MHz, suitable for high-frequency filtering tasks.
This inductor operates reliably across a wide temperature range from -40°C to 125°C, meeting the rigorous AEC-Q200 automotive standard for dependable performance in automotive and industrial electronics. Its ±20% inductance tolerance makes it suitable for versatile circuit designs requiring precise inductance values.
The device is molded and supplied on tape and reel packaging, facilitating automated PCB assembly processes. It complies with industry standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, ensuring environmentally responsible manufacture and material safety.
Shielded wirewound design minimizes electromagnetic interference. High current capability for DC-DC converters and switching regulators. Flat wire winding supports low DC resistance and thermal efficiency. Suitable for industrial computers, graphic cards, and motherboards.
Automotive grade quality with AEC-Q200 compliance. Compact 2212 case for high-density PCB layouts. Wide operating temperature allows harsh environment usage. Manganese zinc ferrite core enhances magnetic properties and stability.
This Wurth Elektronik WE-HCI inductor is ideal for applications in industrial, automotive, computing, and power management contexts. Explore more Inductors and components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inductor has an inductance value of 68μH, which is suitable for various industrial applications.
The maximum DC current rating for this model is 7.5A, allowing it to handle high current loads efficiently.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
The maximum DC resistance of this inductor is 27.3mΩ, which contributes to its low power loss during operation.
The maximum self-resonant frequency for this inductor is 5MHz, suitable for high-frequency filtering tasks.
The dimensions of the 2212 package are 22.5mm in length, 22mm in depth, and 12mm in height.
It uses a manganese zinc ferrite core, which enhances its magnetic properties and stability.
This inductor complies with several standards, including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS.
It is packaged on tape and reel, facilitating automated PCB assembly processes.
The inductance tolerance for this model is ±20%, allowing for versatile circuit designs.
Yes, it meets the AEC-Q200 automotive standard, ensuring quality and reliability for automotive use.
This inductor features a surface mount termination style, suitable for high-density PCB layouts.
