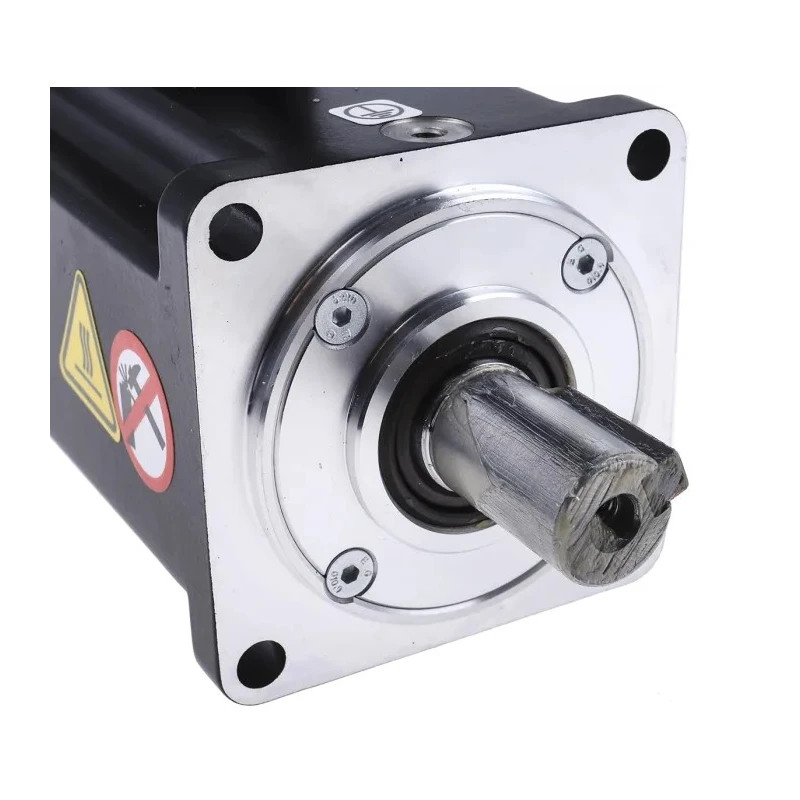

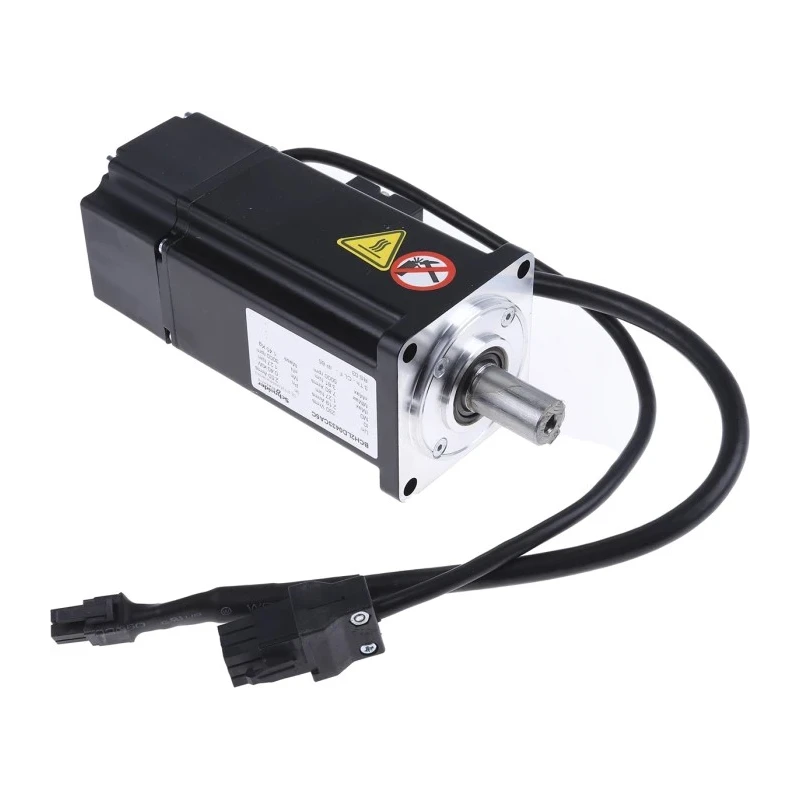

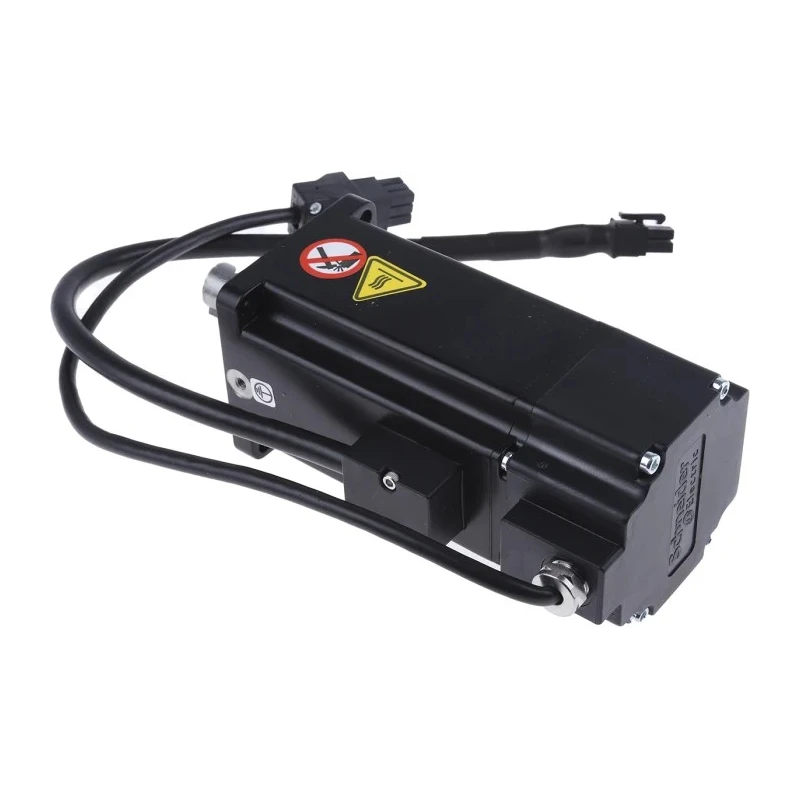

Schneider Electric 220V DC 400W Servo Motor 5000rpm 3.81 Nm Max Output Torque 14 mm Shaft Diameter BCH2LD0433CA5C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 159mm |
| Model | BCH2LD0433CA5C |
| Depth | 73.5mm |
| Width | 60mm |
| Mount Type | Screw, Flange |
| Current Rating | 7.76Arms |
| Series | Lexium |
| Power Rating | 400W |
| Output Speed | 5000rpm |
| Shaft Diameter | 14mm |
| Shaft Length | 30mm |
| Supply Voltage | 220V dc |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 3.81Nm |
| Stall Torque | 1.27Nm |
| Rotor Inertia | 0.27kg.cm² |
Key Features
- High performance 220V DC servo motor rated at 400 watts power output.
- Maximum output torque of 3.81 Nm with stall torque of 1.27 Nm for reliable load handling.
- Rotates at 5000 rpm with a shaft diameter of 14 mm and shaft length of 30 mm.
- Mount type includes screw and flange mounting for versatile installation options.
- Compact dimensions measuring 159 mm length, 60 mm width, and 73.5 mm depth.
- Equipped with a high resolution 20-bit single-turn absolute encoder.
- Part of the Lexium series, suitable for precise control in printing, packaging, and material handling.
- Complies with RoHS standards ensuring environmentally friendly design.
Product Description
Schneider Electric BCH2LD0433CA5C is a 220V DC, 400W Servo Motor engineered for applications requiring high precision and reliable torque. Operating at 5000 rpm, this servo motor delivers a maximum output torque of 3.81 Nm and features a robust 14 mm diameter shaft with a 30 mm length, making it suitable for a variety of industrial automation tasks.
This servo motor offers flexible mounting options including screw and flange types and has compact dimensions of 159mm in length, 60mm in width, and 73.5mm in depth. It is part of the Lexium series, known for delivering synchronous performance with precision speed control, ideal for industries such as printing, packaging, winding, unwinding, and materials handling.
Equipped with a 20-bit single-turn absolute encoder, it ensures accurate position feedback suitable for critical industrial applications. The motor complies with RoHS environmental standards and operates with a current rating of 7.76 Arms and rotor inertia of 0.27 kg·cm², promoting smooth, efficient operation under varied industrial loads.
High power 400W output supporting demanding servo applications. 220V DC supply matching standard industrial DC power systems. 5000 rpm output speed for rapid and precise motion control. 3.81 Nm max torque enables handling of moderate mechanical loads.
Includes advanced encoder for high-resolution position sensing. Compact size facilitates integration into machinery with spatial constraints. Robust mounting system suitable for secure installation in different setups. Compliance with RoHS regulations ensures environmentally responsible manufacturing.
Part of the reputable Schneider Electric Lexium series delivering proven quality.
This servo motor is widely used in industrial automation, manufacturing, HVAC systems, and material handling equipment. Its precision and reliability make it an excellent choice for engineers and technicians requiring consistent performance in servo-controlled machinery.
Explore more high quality Servo Motors and industrial automation components in the Motors & Pumps category at EnvMart.
