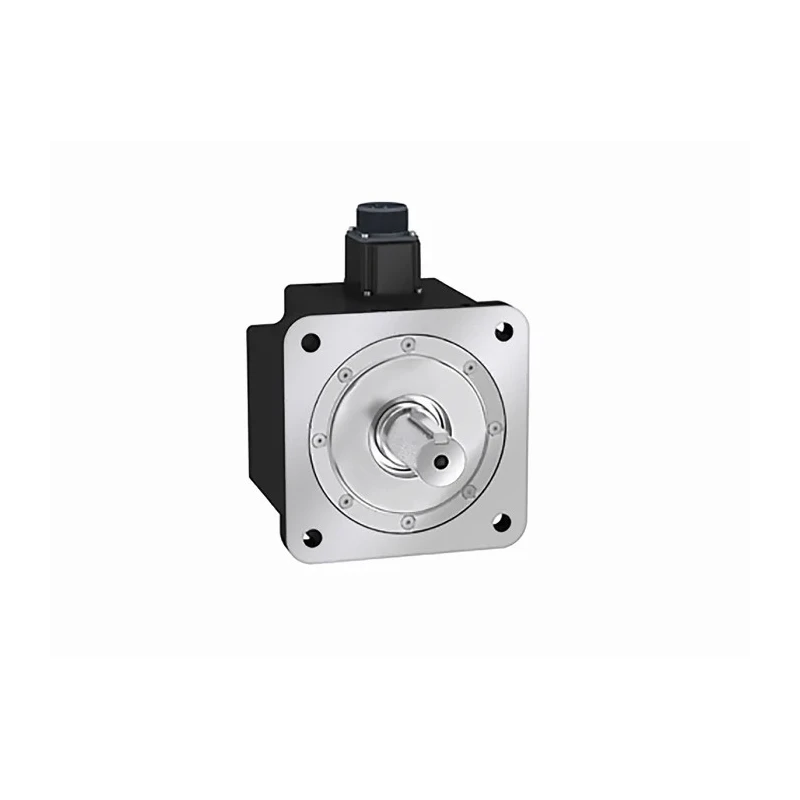

Schneider Electric 3kW Servo Motor, 220V DC, 3000rpm, 57.29Nm Torque, 35mm Shaft BCH2MR3013CA6C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 281mm |
| Model | BCH2MR3013CA6C |
| Depth | 245mm |
| Width | 180mm |
| Mount Type | Screw, Flange |
| Current Rating | 58.4Arms |
| Series | Lexium |
| Cooling | Natural convection |
| Power Rating | 3kW |
| Output Speed | 3000rpm |
| Shaft Diameter | 35mm |
| Shaft Length | 79mm |
| Supply Voltage | 220V dc |
| Encoder | 20bit single-turn absolute |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 57.29Nm |
| Stall Torque | 19.1Nm |
| Rotor Inertia | 53.56kg.cm² |
Key Features
- Rated power of 3kW ensures robust industrial machine performance.
- Operates at 220V DC for compatibility with modern automation systems.
- Offers 57.29Nm maximum output torque suitable for high inertia loads.
- Features a 35mm diameter shaft with parallel keyed and flange mounting.
- Maximum mechanical speed of 3000rpm for precise motion control.
- Integrated high-resolution single-turn absolute encoder improves accuracy.
- Supports natural convection cooling and IP65 protection for rugged environments.
- Compatible with Lexium 28 and Lexium 26D servo drives.
Product Description
Schneider Electric BCH2MR3013CA6C is a high performance brushless DC servo motor engineered for demanding industrial automation applications. As part of the Lexium 28 range, it is designed for machines requiring precise motion control and reliable power delivery, supporting a wide variety of use cases including packaging, printing, winding, and material handling.
With a rated output of 3kW and a supply voltage of 220V DC, the motor delivers robust performance and high torque capabilities. The device achieves a maximum output torque of 57.29Nm and a continuous stall torque of 19.1Nm, making it suitable for high inertia scenarios. Its 35mm diameter shaft is parallel keyed and supports screw/flange mounting, facilitating secure mechanical integration into automated systems. Operating at speeds up to 3000rpm, the BCH2MR3013CA6C maintains accurate positioning via its built-in 20-bit single-turn absolute encoder.
Additional features include a rotor inertia of 53.56kg.cm², MIL connector for electrical connection, and IP65 protection for dust and water resistance, allowing reliable operation in demanding environments. The servo motor is compatible with Lexium 28 and Lexium 26D servo drives and supports Asian standard 180mm flange mount with natural convection cooling. The Lexium 28 range offers optimized servo bundles for compact machines requiring cost effectiveness, energy efficiency, and embedded safety features.
The BCH2MR3013CA6C weighs 18.5kg and has dimensions of 281mm in length, 180mm in width, and 245mm in depth, providing a compact footprint for industrial installations. The encoder delivers high-resolution feedback for precise positioning tasks, while mounting flexibility includes screw and flange options.
This Schneider Electric servo motor is especially suited for applications requiring fast response times, high reliability, and precise positional accuracy, including advanced manufacturing, robotics, process automation, and printing systems.
Industrial use cases: automation lines, packaging machinery, robotic arm control, CNC systems, material conveyance, winding/unwinding stations, and more. Discover more servo solutions in the Servo Motors category from Schneider Electric at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated power of this servo motor is 3kW, ensuring robust performance for industrial applications.
This model offers a maximum output torque of 57.29Nm, suitable for high inertia loads.
It operates at a supply voltage of 220V DC, making it compatible with modern automation systems.
The dimensions of this servo motor are 281mm in length, 180mm in width, and 245mm in depth.
It features a 20-bit single-turn absolute encoder, which improves accuracy in positioning tasks.
The maximum mechanical speed of this servo motor is 3000rpm, allowing for precise motion control.
This unit supports screw and flange mounting, providing flexibility for mechanical integration.
The rotor inertia is 53.56kg.cm², which is relevant for applications requiring high responsiveness.
Yes, it is compatible with Lexium 28 and Lexium 26D servo drives, enhancing its integration capabilities.
It uses natural convection cooling, suitable for various industrial environments.
The continuous stall torque of this servo motor is 19.1Nm, which is important for maintaining performance under load.
This model complies with RoHS standards, ensuring it meets environmental regulations.
