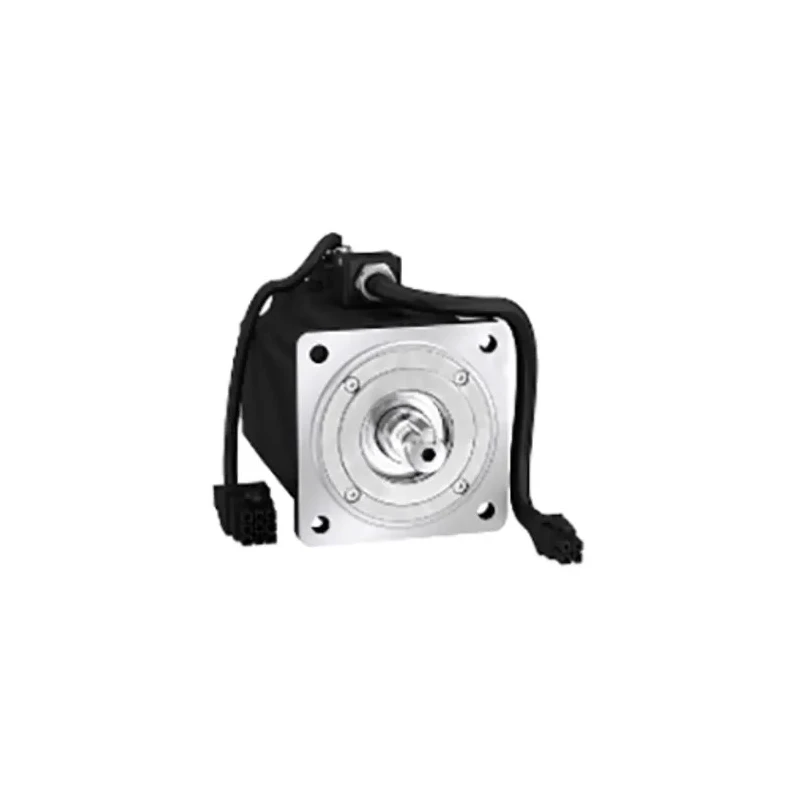

Schneider Electric Lexium BCH2MB0133CA5C Servo Motor 220V DC 100W 5000rpm 0.96Nm Max Torque, 8mm Shaft, Flange Mount

The Schneider Electric Lexium BCH2MB0133CA5C servo motor is a synchronous AC brushless motor designed for industrial automation and precision motion control. With a rated supply voltage of 220V DC and a power rating of 100W, this servo motor delivers high output torque (up to 0.96Nm) and a mechanical speed of 5000rpm, making it an excellent choice for applications such as printing, packaging, materials handling, winding, and other machinery requiring reliable accuracy and performance.

This model features an 8mm diameter shaft with a length of 25mm, providing robust interfacing with compatible drive systems. Its flange and screw mounting options ensure easy and secure installation. The motor is equipped with a high-resolution 20-bit single-turn absolute encoder for precise position and speed feedback, crucial for advanced automation systems. The rotor inertia of 0.075kg.cm² and three available types of motor inertia cater to a range of dynamic requirements. It also offers a stall torque of 0.32Nm.

Documentation indicates compatibility with Lexium 28 and Lexium 26D servo drives, part of Schneider Electric's Lexium range optimized for flexibility and cost efficiency. The compact dimensions - 125mm length, 40mm width, and 55mm depth - make it suitable for space-constrained installations. The motor is furnished with free lead for electrical connection and uses natural convection as its cooling system. Centring collar dimensions are 3mm depth by 30mm diameter, with a 46mm circle diameter for mounting holes.

Its IP65 parallel keyed shaft is designed for environments that demand dust and water protection, and IP50/IP65 ratings (IM V3, IM B5, IM V1 configurations) guarantee resilience and consistent operation. The motor weighs 0.56kg, supporting easy handling during installation or maintenance. The continuous stall current is 0.81A, with a current rating of 2.65Arms.

Schneider Electric BCH2 servo motors offer advanced safety and efficiency for compact machines, enabling precise speed control and positioning. Applications include industrial, laboratory, manufacturing, robotics, and commercial machinery, where precise and reliable motion is essential. The Lexium platform ensures compatibility and streamlined integration with servo drives, supporting various flange sizes and installation standards.
