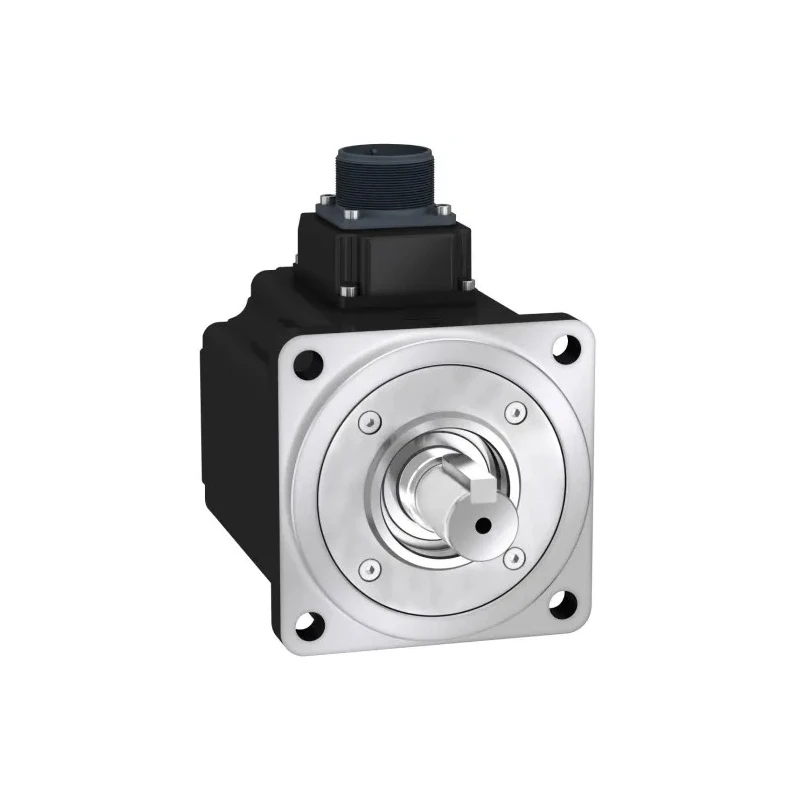

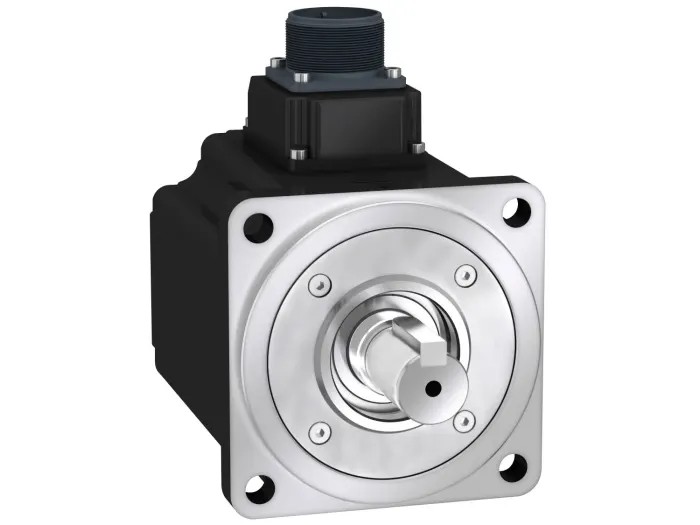

Schneider Electric Servo Motor 220V, 1 kW, 5000rpm, 9.54 Nm Output Torque, 22 mm Shaft Diameter, BCH2LH1033CA6C

The Schneider Electric BCH2LH1033CA6C is a premium synchronous AC servo motor engineered for reliable performance in industrial automation and machine control environments. With a 1 kW continuous power rating at 220V and a maximum mechanical speed of 5000rpm, it delivers both speed and torque necessary for advanced motion applications such as printing, packaging, and materials handling.

This servo motor features a robust maximum output torque of 9.54 Nm allowing for precise movement of heavy loads. The stall torque is specified at 3.18 Nm. With its high-resolution 20-bit single-turn absolute encoder, feedback accuracy is greatly enhanced for demanding positioning workflows.

The mechanical design incorporates a 22 mm shaft diameter and 45 mm shaft length, enabling secure attachment to driven components. The flange mount provides flexible installation options with a standard 100mm Asian flange and MIL electrical connector interface. The motor housing meets IP50 and IP65 protection standards, ensuring durability against dust and water ingress, making it suitable for a broad range of industrial environments.

Supporting Lexium 28 servo drives, the BCH2LH1033CA6C integrates smoothly with coordinated drive solutions. The rotor inertia is 2.4 kg·cm², providing quick response while minimizing overshoot in dynamic operations. The motor is equipped with a natural convection cooling system to maintain optimal performance even during continuous use. The centering collar measures 7 mm depth by 95 mm diameter, and mounting hole spacing is 115 mm, simplifying mechanical integration.

Its continuous stall current is 5.83A and current rating is 18.9 Arms. The physical dimensions are 198.5mm length, 100mm width, and 146mm depth, while the weight is 4.6 kg for manageable handling and installation. This servo motor is part of Schneider Electric's Lexium series, which is designed to offer predeterminate combinations tailored to motion control requirements, optimizing installation performance in compact machines.

The BCH2LH1033CA6C is RoHS and REACH compliant, reflecting commitment to industrial standards. Primary use cases include machine control, packaging lines, printing equipment, winding/unwinding machinery, and material transport systems in manufacturing and automation sectors. Its precision, adaptability and robust features make it an excellent choice for industrial designers and automation engineers seeking reliable and accurate servo solutions.

Browse the full range of Schneider Electric Servo Motors and Lexium drives at EnvMart to discover optimal motion control components for your next automation project.
