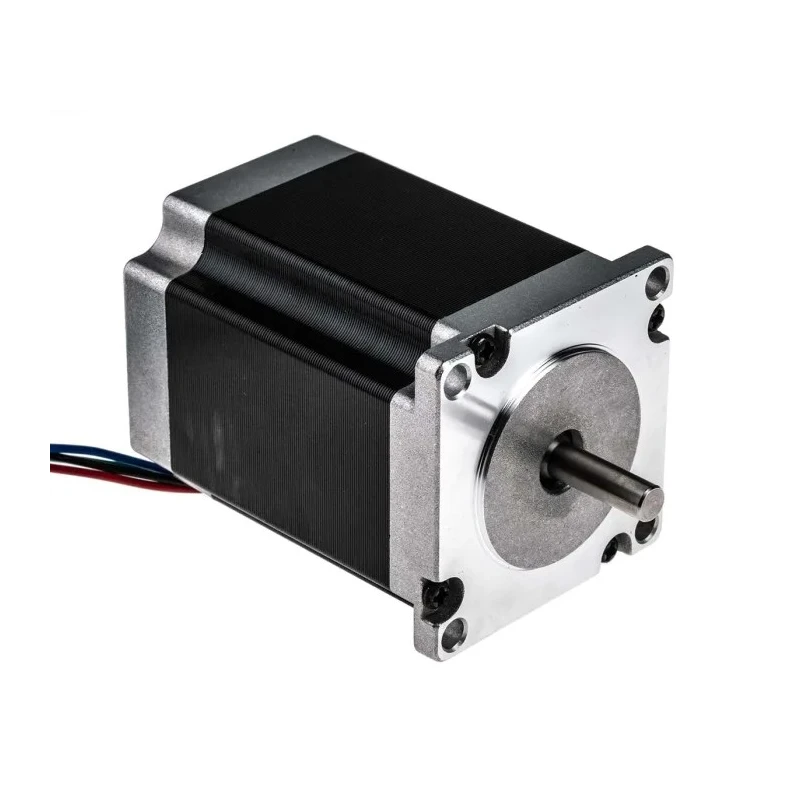

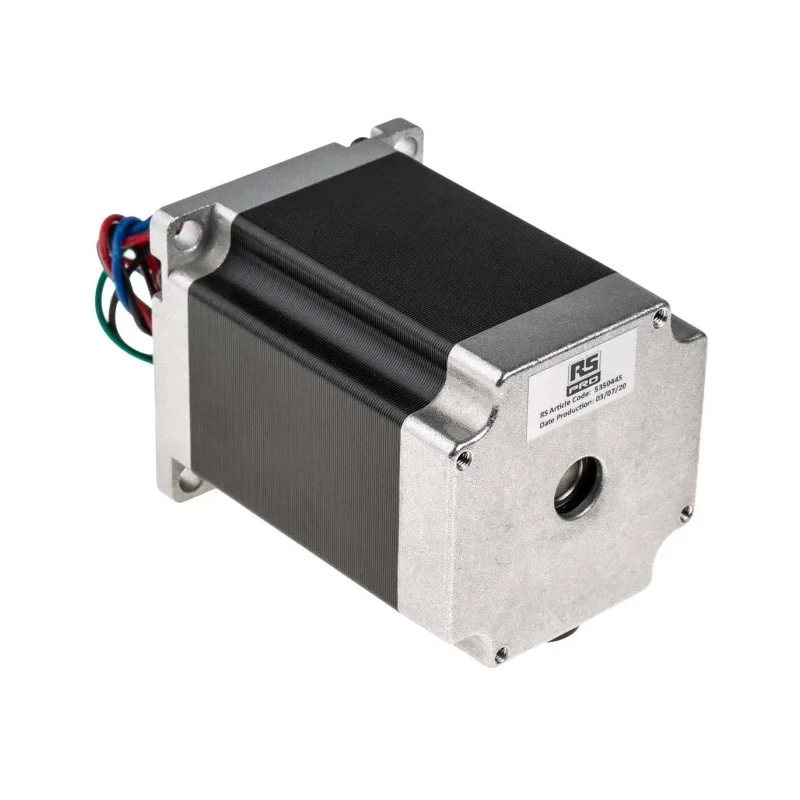

RND RS PRO Hybrid Stepper Motor 3.2V, 1.89Nm Holding Torque, 1.8° Step Angle, 56.4x56.4 mm Frame, 6.35 mm Shaft 535-0445

Free Delivery in India | Lowest Global Shipping Charges

RND RS PRO Hybrid Stepper Motor 3.2V, 1.89Nm Holding Torque, 1.8° Step Angle, 56.4x56.4 mm Frame, 6.35 mm Shaft 535-0445



Category Stepper Motors Brand RND Condition New

Specifications

Country of Origin	India
Voltage	3.2V
Brand	RND
Model	535-0445
Depth	76mm
IP Rating	IP54, IP65
Current Rating	2.8A
Frame Size	56.4 x 56.4 mm
Output Speed	186rpm
Shaft Diameter	6.35mm
Shaft Length	19mm
Standards/Approvals	RoHS Compliant
Step Angle	1.8°
Holding Torque	1.89Nm
Winding Arrangement	Bipolar
Number of Pole Pairs	1
Detent Torque	72mNm

Key Features

The motor operates at 3.2 V, ensuring efficient power usage.
Features a robust 56.4 x 56.4 mm frame size for stability.
Includes a 6.35 mm diameter shaft with 19 mm length for versatile mounting.

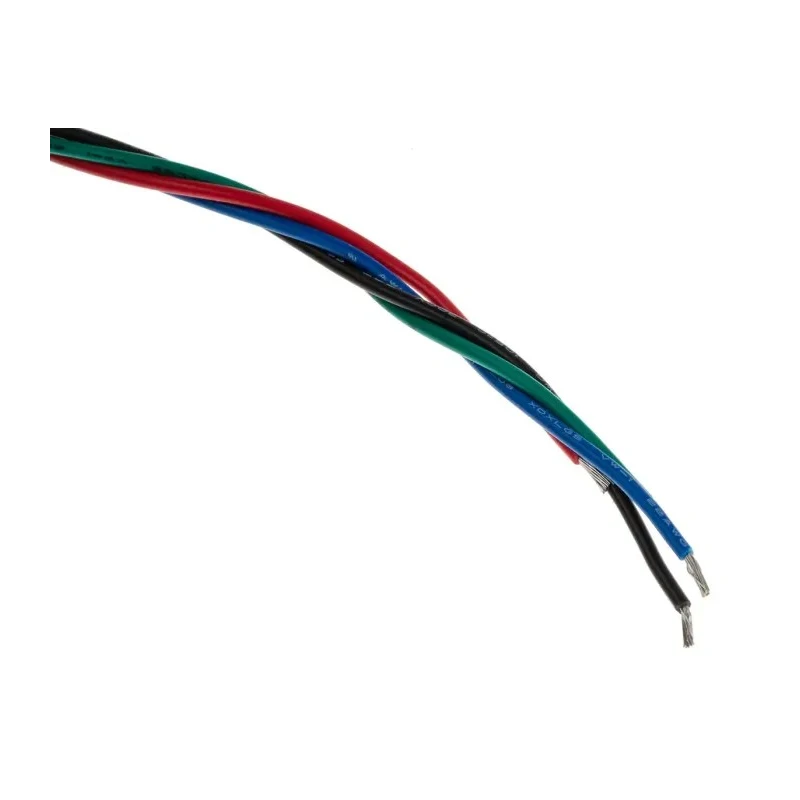

Bipolar winding arrangement supports four-wire configuration for controlled operation.
Has an IP54 and IP65 rating for protection against dust and water.
Maximum output speed reaches 186 rpm suitable for industrial applications.
Offers resistance per phase of 1.13 Ω, ensuring reliable current flow.
Compliant with RoHS standards, ensuring reduced hazardous substances.

Product Description

RND brand presents the RS PRO Model 535-0445 hybrid stepper motor featuring a step angle of 1.8°, holding torque of 1.89 Nm, and voltage rating of 3.2 V. This stepper motor delivers controlled rotational movements ideal for applications requiring precision and repeatability within industrial and automation settings.

The motor has a sturdy frame dimension of 56.4 x 56.4 mm and a shaft diameter of 6.35 mm coupled with a shaft length of 19 mm. It employs a bipolar winding arrangement with four wires, enabling smooth and accurate step function. The IP54 and IP65 ingress protection ratings ensure durability and reliability under dusty and moderately wet environments, making it suitable for diverse use cases.

The hybrid design combines variable reluctance and permanent magnets to maximize torque and efficiency. The 186 rpm maximum output speed supports a wide range of industrial machinery control tasks. Notably, the motor features a detent torque of 72 mNm and resistance per phase of 1.13 Ω, contributing to precise electrical characteristics and mechanical robustness.

Compliance with RoHS directives underscores the product’s environmental safety and reduced hazardous material content. This stepper motor is widely used in automation systems, robotics, 3D printers, camera equipment, and precision positioning devices.

The motor provides a step angle of 1.8° for fine rotational control. It delivers a holding torque of 1.89 Nm for stable positioning. Robust construction with 56.4 x 56.4 mm frame size ensures durability. Bipolar four-wire winding supports reliable electrical control.

IP54 and IP65 ratings protect against dust and water ingress. Maximum output speed of 186 rpm suits many industrial applications. Resistance per phase is 1.13 Ω, maintaining consistent current flow. Detent torque of 72 mNm enhances holding characteristics.

RoHS compliant for safe environmental standards.

This RS PRO hybrid stepper motor is engineered for high performance and reliability, making it an excellent choice for industrial automation, manufacturing, and control gear systems. It combines precision, power, and environmental compliance in a compact and robust footprint.
