Sanyo Denki Single Shaft Bipolar Stepper Motor 24V, 0.43Nm Holding Torque, 1.8° Step Angle, 42 mm Frame DB14S422S
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V |
| Brand | Sanyo Denki |
| Length | 33mm |
| Model | DB14S422S |
| IP Rating | IP65 |
| Current Rating | 1A |
| Frame Size | 42 mm |
| Sub Type | Single Shaft |
| Standards/Approvals | UL, RoHS |
| Step Angle | 1.8° |
| Holding Torque | 0.43Nm |
| Winding Arrangement | Bipolar |
Key Features
- Features a bipolar winding arrangement for efficient 2-phase operation.
- Compact 42 mm frame size suitable for various automation applications.
- Provides IP65 protection for durability and resistance to dust and water.
- Motor length of 33mm enables space-saving installations.
- Operating temperature range from 0°C to 50°C for reliable performance.
- Allowable radial load of 10 N and thrust load of 34 N.
- Includes two-phase stepping driver with pulse train control for precision.
- Manufactured in Japan adhering to UL and RoHS standards.
Product Description
The Sanyo Denki DB14S422S is a high-performance single shaft bipolar stepper motor designed for precise motion control in industrial and automation settings. This motor features a 42 mm square motor flange and a compact length of 33 mm, making it suitable for applications where space is limited.
Operating at a nominal voltage of 24V and a current rating of 1A, this stepper motor delivers a holding torque of 0.43 Nm with a step angle of 1.8°, ensuring accurate positioning and controlled movement. Its bipolar winding arrangement supports efficient two-phase operation.
The motor is rated IP65, offering excellent protection against dust and water ingress, which enhances its durability in challenging industrial environments. The operating temperature range from 0°C to 50°C ensures stable performance under typical working conditions.
Mechanical robustness is further supported by its allowable radial load of 10 N and thrust load of 34 N, making it capable of handling moderate mechanical stresses during operation.

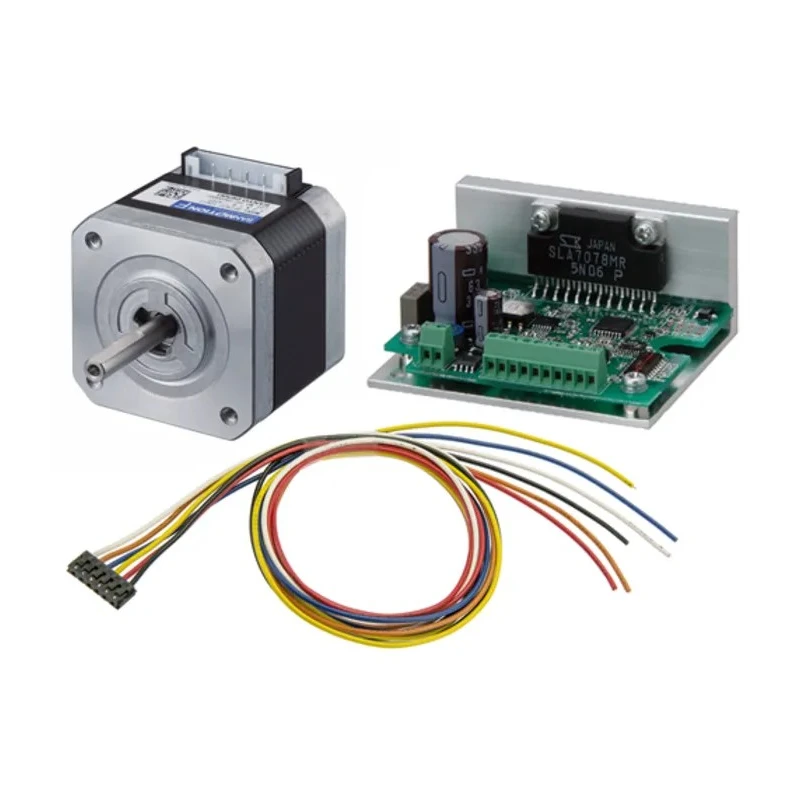

This combo pack includes a two-phase stepping driver with pulse train control functionality and a 50cm connector type motor cable, providing an integrated solution for easy system integration. Manufactured in Japan, this motor complies with UL and RoHS standards, guaranteeing quality and environmental compliance.
The DB14S422S stepper motor is ideal for industrial automation, robotics, CNC machinery, and other applications requiring precise torque and positioning control. Explore EnvMart’s extensive selection of Stepper Motors for additional options and accessories to complement your setup.
Features a bipolar winding arrangement for efficient 2-phase operation. Compact 42 mm frame size suitable for various automation applications. Rated voltage of 24V with a current rating of 1A. Provides IP65 protection for durability and resistance to dust and water.
Motor length of 33mm enables space-saving installations. Operating temperature range from 0°C to 50°C for reliable performance. Allowable radial load of 10 N and thrust load of 34 N. Includes two-phase stepping driver with pulse train control for precision.
Manufactured in Japan adhering to UL and RoHS standards. Browse EnvMart’s stepper motor category for reliable and quality products from leading manufacturers like Sanyo Denki.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of the Sanyo Denki DB14S422S stepper motor is 0.43 Nm.
This stepper motor has a step angle of 1.8°.
It operates at a nominal voltage of 24V.
The current rating for this model is 1A.
This stepper motor features a compact frame size of 42 mm.
The motor has a length of 33 mm, allowing for space-saving installations.
It features a bipolar winding arrangement for efficient two-phase operation.
The DB14S422S is rated IP65, providing protection against dust and water ingress.
The allowable radial load for this stepper motor is 10 N.
This stepper motor can handle an allowable thrust load of 34 N.
The operating temperature range for this motor is from 0°C to 50°C.
It complies with UL and RoHS standards, ensuring quality and environmental compliance.
