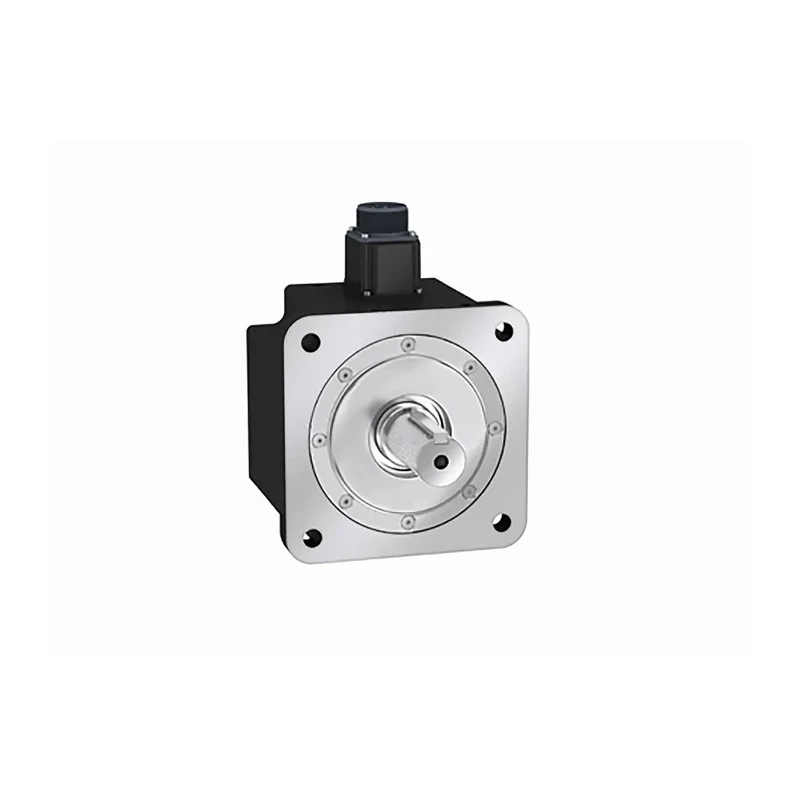

Schneider Electric 220V DC 4.5 kW Servo Motor, 3000rpm, 71.62 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR4513CA6C

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric 220V DC 4.5 kW Servo Motor, 3000rpm, 71.62 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR4513CA6C

Name: Schneider Electric 220V DC 4.5 kW Servo Motor, 3000rpm, 71.62 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR4513CA6C
Brand: Schneider Electric
SKU: 138907
Price: 3889.7 USD
Availability: InStock



Category Servo Motors Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	314mm
Model	BCH2MR4513CA6C
Depth	245mm
Width	180mm
Mount Type	Flange, Screw
Current Rating	57.6Arms
Series	Lexium
Power Rating	4.5kW
Output Speed	3000rpm
Shaft Diameter	35mm
Shaft Length	79mm
Supply Voltage	220V dc
Standards/Approvals	RoHS
Maximum Output Torque	71.62Nm
Stall Torque	28.65Nm
Rotor Inertia	73.32kg.cm²

Key Features

This motor features a flange and screw mount type for secure installation.
Equipped with a 20-bit single-turn absolute encoder for precise position feedback.
The shaft length is 79 mm with a total motor length of 314 mm.
Designed with IP50 and IP65 ratings ensuring protection against dust and water ingress.
Compatible with Lexium 28 servo drives, optimized for compact machine control solutions.
Includes a robust rotor inertia of 73.32 kg.cm², suitable for high-performance applications.
Features a maximum continuous current rating of 57.6 Arms and stall torque of 28.65 Nm.
The motor uses a MIL connector for electrical connection and supports natural convection cooling.

Product Description

Schneider Electric BCH2MR4513CA6C is a high-performance 220V DC servo motor with a power rating of 4.5 kW and a maximum output torque of 71.62 Nm at 3000 rpm. This motor is part of the Lexium 28 range, designed for precise motion control in industrial automation and machine control applications.

The servo motor is equipped with a 20-bit single-turn absolute encoder, providing exceptional position accuracy and reliability. It features a flange and screw mounting system, with a shaft diameter of 35 mm and shaft length of 79 mm, making installation straightforward and secure.

With IP50 and IP65 protection ratings, this motor is robust against environmental factors like dust and water, suitable for demanding industrial conditions. The motor weighs 23.64 kg and has rotor inertia of 73.32 kg.cm², enhancing stable dynamic performance.

This model uses a MIL electrical connector, supports a continuous current of 57.6 Arms, and has a stall torque of 28.65 Nm. It is optimized for compact machines and compatible with Lexium 28 servo drives, especially the LXM26D 4.5 kW 220V three-phase servo drive.

This servo motor features a keyed shaft end without holding brake for smooth operation. The design supports natural convection cooling, reducing the need for additional cooling accessories. It includes a centering collar with dimensions of 4 mm depth and 114.3 mm diameter, with 200 mm mounting hole spacing.

The Lexium 28 servo systems are ideal for printing, packaging, winding/unwinding, and material handling industries. This servo motor offers a reliable and efficient solution for industrial, manufacturing, and automation engineers aiming for precision performance and energy efficiency.

Explore more from the Schneider Electric servo motor range and find compatible accessories and drives on EnvMart for optimized machine control and automation solutions.
