Schneider Electric Motor Protection Circuit Breaker 20A, 25A, 690V, Thermal Magnetic, 3 Poles, IP20, GV2P22

Free Delivery in India | Lowest Global Shipping Charges

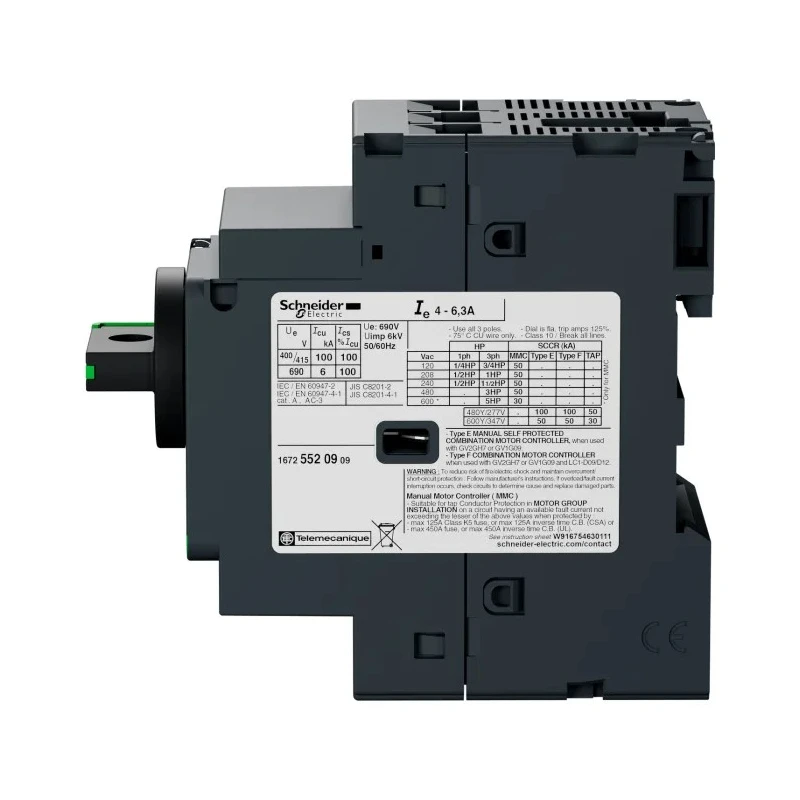

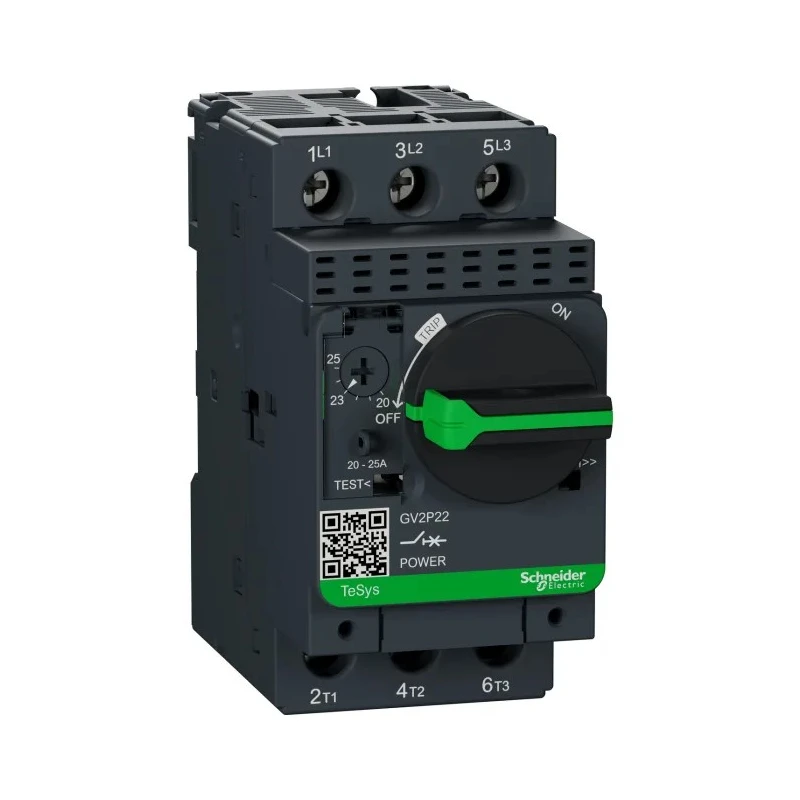

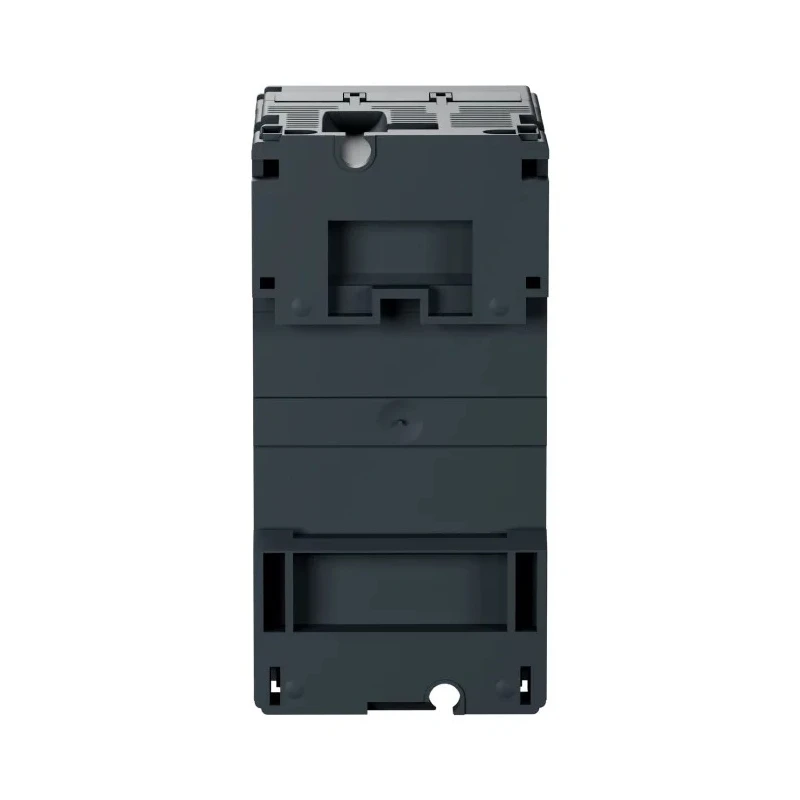

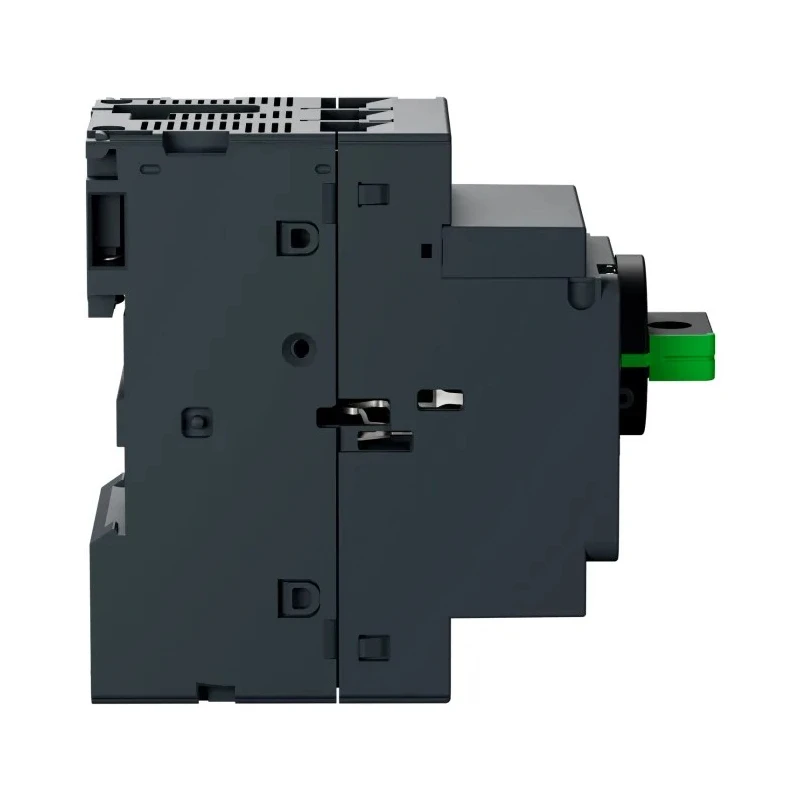

Schneider Electric Motor Protection Circuit Breaker 20A, 25A, 690V, Thermal Magnetic, 3 Poles, IP20, GV2P22

Name: Schneider Electric Motor Protection Circuit Breaker 20A, 25A, 690V, Thermal Magnetic, 3 Poles, IP20, GV2P22
Brand: Schneider Electric
SKU: 123727
Price: 251.72 USD
Availability: InStock



Category Motor Protection Circuit Breaker Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Model	GV2P22
IP Rating	IP20
Overall Length	89mm
Current Rating	20, 25A
Series	TeSyS GV
Overall Width	45mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Sensing type	Thermal Magnetic
Supply Voltage	690V
Number of Poles	3
Overall Depth	97mm
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker

Key Features

Adjustable thermal protection range from 20A to 25A allows precise motor overload settings.
Magnetic trip at 327A enables rapid interruption of fault currents.
Rated operational voltage up to 690V supports a wide range of industrial applications.
Breaking capacity of up to 100 kA at 230/240V ensures reliable fault clearance.
Three-pole design with phase failure sensitivity prevents motor damage due to single phasing.
Screw clamp terminals with 1.7 N·m torque provide secure and reliable conductor connections.
Supports mounting on 35mm DIN rail or panel fixing with rotary manual control handle.
Operates reliably between -20°C to 60°C with high mechanical and electrical endurance.

Product Description

Schneider Electric GV2P22 Motor Protection Circuit Breaker is engineered to safeguard three-phase motors in industrial control panels through thermal magnetic overload and short circuit protection. Designed for operation on low-voltage AC networks up to 690V, this device is suitable for industrial drives and motor control centers requiring reliable switching and protection.

The motor protection system incorporates adjustable thermal protection from 20 to 25 amperes and a magnetic trip feature rated at 327 amperes, facilitating precise and responsive motor overload control and fault current interruption to prevent motor damage.

This three-pole circuit breaker features phase-failure sensitivity that inhibits single-phasing damage, and robust screw clamp terminals tightened to 1.7 N·m ensure secure electrical connections. Suitable for DIN rail mounting or panel fixation, it includes a rotary handle for manual control, adding operational convenience and safety.

Rated for continuous operation between -20°C and 60°C, the breaker handles harsh environmental conditions with an IP20 enclosure and IK04 impact resistance. It also resists shocks up to 30 Gn and vibrations up to 5 Gn across 5 to 150 Hz, ensuring durability in demanding industrial settings.

With a breaking capacity of 100 kA at 230/240V, the GV2P22 delivers high fault clearance capability. It complies with global safety and performance standards such as EAC, DNV GL, CSA, CCC, BV, ATEX, UL, RINA, REACH/RoHS, IECEE CB, and IEC 60947 series, making it suitable for diverse industrial, manufacturing, and automation applications.

Adjustable thermal protection range from 20A to 25A. Magnetic trip at 327A for fast fault current interruption. Rated operational voltage of up to 690V. Breaking capacity up to 100 kA at 230/240V. Three-pole design with phase failure sensitivity.

Screw clamp terminals with 1.7 N·m torque. DIN rail or panel mounting with rotary handle. Operating temperature range from -20°C to 60°C. IP20 rated enclosure with IK04 impact resistance. Compliant with multiple international safety standards.

This motor protection circuit breaker is ideal for industrial drives, motor control centers, automation panels, and retrofit projects requiring compact and reliable motor protection solutions. Browse other high-quality motor protection devices in the Motor Protection Circuit Breaker category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The current rating range of this motor protection circuit breaker is adjustable from 20A to 25A.

This model has a rated operational voltage of up to 690V, making it suitable for various industrial applications.

The breaking capacity of this circuit breaker is up to 100 kA at 230/240V, ensuring reliable fault clearance.

The thermal magnetic sensing type provides overload protection through adjustable thermal settings and rapid fault current interruption via a magnetic trip rated at 327A.

The overall dimensions of this unit are 89mm in length, 45mm in width, and 97mm in depth.

It operates reliably between -20°C and 60°C, accommodating a variety of environmental conditions.

It features screw clamp terminals that require a tightening torque of 1.7 N·m for secure electrical connections.

Yes, this model supports mounting on a 35mm DIN rail or can be panel fixed, providing installation flexibility.

The IP rating of this circuit breaker is IP20, indicating protection against solid objects larger than 12.5mm.

This unit has an IK04 impact resistance rating, which means it can withstand light impacts.

Yes, it complies with multiple international safety and performance standards, including EAC, DNV GL, CSA, and UL, among others.

This motor protection circuit breaker is ideal for industrial drives, motor control centers, and automation panels requiring reliable motor protection.
