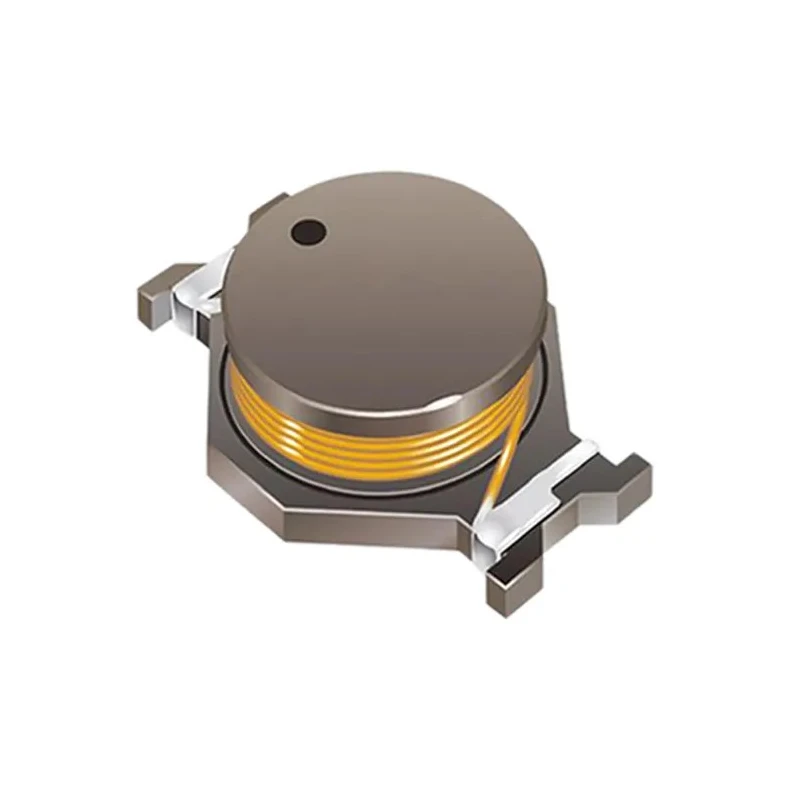

Bourns Wirewound Surface Mount Inductor 10μH ±20% 6.5A Ferrite DR Core 22x15x7mm SDR2207

Bourns SDR2207 wirewound surface mount inductor is designed for efficient power supply filtering applications with a ferrite DR core construction. It provides a nominal inductance of 10μH with ±20% tolerance, capable of handling a maximum DC current of 6.5A, and features a low DC resistance of 17.2mΩ.

With dimensions of 22 mm length, 15 mm depth, and 7 mm height, this compact inductor easily integrates into densely packed SMT PCBs. It operates reliably within a temperature range of -40°C to 125°C, suitable for industrial, commercial, and laboratory electronic assemblies.

The inductor construction is wirewound, ensuring enhanced current capacity and magnetic stability. Its maximum self-resonant frequency of 20 MHz and minimum quality factor of 53 provide efficient suppression of electromagnetic interference and signal integrity in sensitive power circuits.

The SDR2207 series is RoHS compliant, making it environmentally safe and suitable for use in automotive and consumer electronics designs, though not qualified for automotive standards specifically.

Constructed with a Ferrite DR core for high magnetic efficiency. Compact 22 x 15 x 7 mm SMT case size for space-saving PCB integration. Offers a maximum DC resistance of 17.2mΩ for low power losses. Maximum operating temperature up to 125°C ensuring reliable performance.

Suitable for power supply filtering in industrial and commercial electronics. RoHS compliant, supporting environmental safety standards. High self-resonant frequency of 20 MHz extends operational bandwidth.

This surface mount inductor is ideal for electrical engineers designing circuits requiring high current handling and low electrical loss inductors with compact form factors. Browse more Bourns Inductors and electronic components at EnvMart for comprehensive sourcing.
