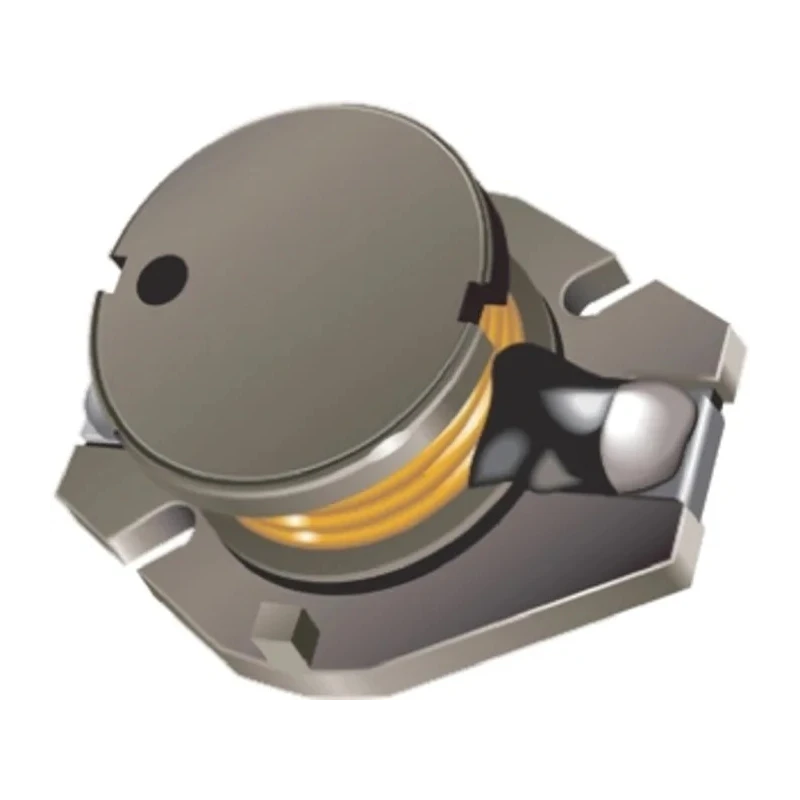

Bourns Wirewound Surface Mount Inductor 100 μH ±10 % 1 A Maximum DC Current Ferrite DR Core 1005 Package SDR1005

Bourns SDR1005 Wirewound Surface Mount Inductor delivers precise inductance of 100 μH with a tolerance of ±10 %. Designed with a Ferrite DR core, this inductor supports a maximum DC current rating of 1 A, making it ideal for power supply and DC/DC converter applications in industrial, electronic, and commercial equipment.

The inductor is built in a compact 1005 surface mount package with a length of 12.7 mm, height of 5 mm, and depth of 10 mm. These dimensions enable easy integration into modern PCB layouts where space-saving is critical. The wirewound construction ensures reliable electrical performance and mechanical stability.

Operating temperature ranges from -40°C to 125°C, allowing use in diverse environmental conditions. The component exhibits a maximum DC resistance of 330 milliohms to reduce power losses and maintain circuit efficiency.

It holds certifications including RoHS and JEDEC, which guarantee compliance with industry environmental and manufacturing standards. The inductor achieves a quality factor of 41 and a self-resonant frequency of 8 MHz, which supports efficient filtering and noise suppression in high-frequency circuits.

This component is sold in reels, supporting automated placement in manufacturing for optimized production processes. Its construction and specifications make it suitable for use in electronic circuits requiring accurate inductance control, particularly in power management and signal filtering within industrial, laboratory, and telecommunications equipment.

Compact 1005 package for surface mount applications. Ferrite DR core enhances magnetic coupling efficiency. Maximum DC current rating of 1 A ensuring reliable operation. Wide operating temperature range from -40°C to 125°C.

Complies with RoHS and JEDEC quality and safety standards. Wirewound construction for improved electrical performance. Maximum DC resistance of 330 mΩ minimizes power loss. High quality factor of 41 for superior filtering capabilities.

Moulded design supports mechanical durability. Maximum self resonant frequency of 8 MHz for high-frequency circuits. Explore more high-quality Inductors and related electronic components in the Electronics Components category of EnvMart.
