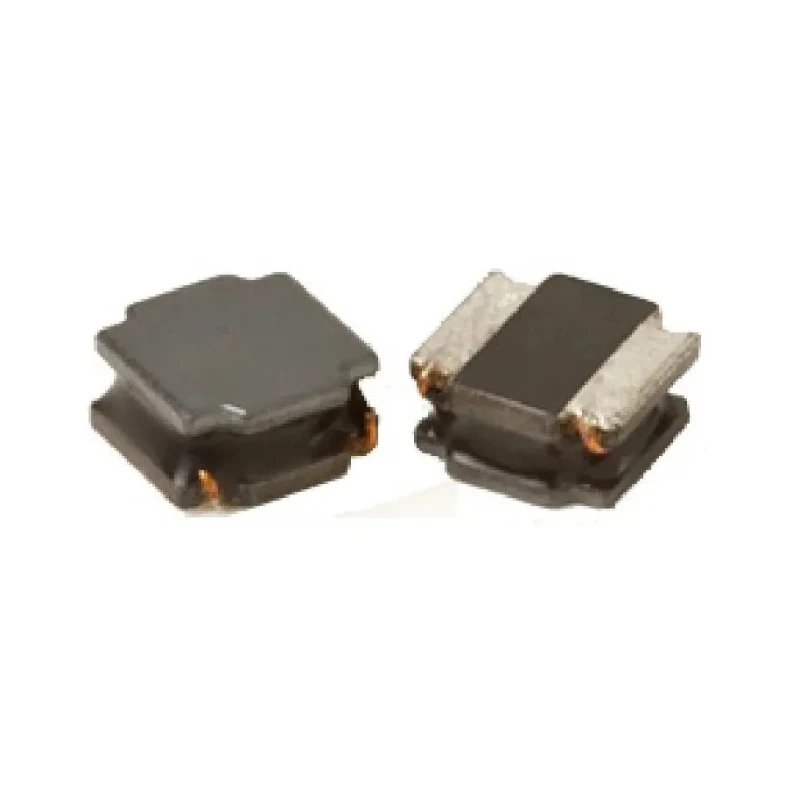

Abracon Shielded Surface Mount Inductor with Ferrite Core 2.2μH ±30% 4.9A DC Current ASPI-4030S-2R2N-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 4mm |
| Model | ASPI-4030S-2R2N-T |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-4030S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 4.9A |
| Pin Count | 4 |
| Maximum DC Resistance | 0.03Ω |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Ferrite core construction ensures magnetic shielding and reduces EMI.
- Flat wire winding provides stable inductance and high current capability.
- Surface mount packaging with tape and reel for efficient PCB assembly.
- Operating temperature range from -40°C to 125°C suitable for diverse environments.
- Low DC resistance of 0.03Ω enhances energy efficiency.
- Compact size with 4mm length, 3mm height, and 3mm depth dimensions.
- Complies with RoHS for environmental safety.
- Ideal for DC-DC converters, portable communication devices, OA equipment, and consumer electronics.
Product Description
Abracon ASPI-4030S-2R2N-T is a shielded surface mount inductor featuring a ferrite core and flat wire winding with an inductance of 2.2μH and tolerance of ±30%. Designed to handle a maximum DC current of 4.9A, this inductor is constructed for demanding electronic applications requiring reduced electromagnetic interference due to its magnetic shielding.
This surface mount inductor comes with a low DC resistance of 0.03Ω, making it energy efficient while maintaining reliable performance across a broad temperature range from -40°C to 125°C. The compact dimensions of 4mm length, 3mm height, and 3mm depth facilitate integration into dense PCB layouts.
Manufactured with a ferrite core and flat wire winding, the component is molded and supplied on tape and reel packaging suitable for automated assembly processes. Its four-terminal surface mount termination style provides strong and consistent PCB bonding.
This device meets RoHS environmental standards, making it suitable for modern electronic manufacturing. Typical applications include DC-DC converters, portable communication equipment, office automation devices, LCD displays, DVDs, modems, and set-top boxes.
The shielded design minimizes radiated noise and interference, essential for high-quality signal integrity in mixed-signal and power circuits. The large terminal area aids in robust PCB solder connections, supporting stable electrical contacts under mechanical stress.
Ferrite core reduces EMI and improves magnetic shielding. Flat wire winding enables high current handling and consistent inductance. Low DC resistance of 0.03Ω supports efficient energy conversion. Wide operating temperature range (-40°C to 125°C) enhances reliability.
Compact dimensions (4x3x3 mm) optimize PCB real estate use. Moulded construction increases mechanical durability. RoHS compliance ensures environmental safety. Tape & reel packaging facilitates high-volume automated assembly.
Four-pin termination style assures solid PCB mounting.
Ideal for industrial, laboratory, and high-reliability electronic circuit applications. Explore more Abracon Inductors and electronic components at EnvMart for advanced electronic assembly and system design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 2.2μH with a tolerance of ±30%.
It can handle a maximum DC current of 4.9A.
The dimensions are 4mm in length, 3mm in height, and 3mm in depth.
The operating temperature range is from -40°C to 125°C.
It features a ferrite core, which helps in reducing electromagnetic interference (EMI).
The DC resistance is 0.03Ω, which enhances energy efficiency.
This inductor is packaged on tape and reel, suitable for efficient automated PCB assembly.
It features a four-pin surface mount termination style for strong PCB bonding.
Yes, it complies with RoHS environmental standards.
Typical applications include DC-DC converters, portable communication devices, and office automation equipment.
The flat wire winding construction provides stable inductance and high current capability.
The country of origin for this inductor is India.
