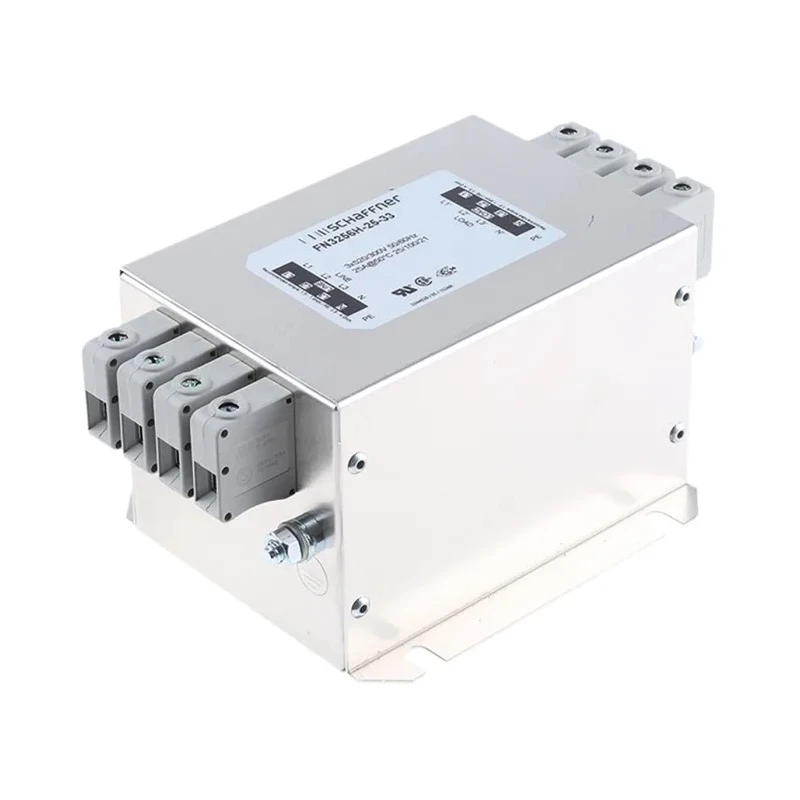

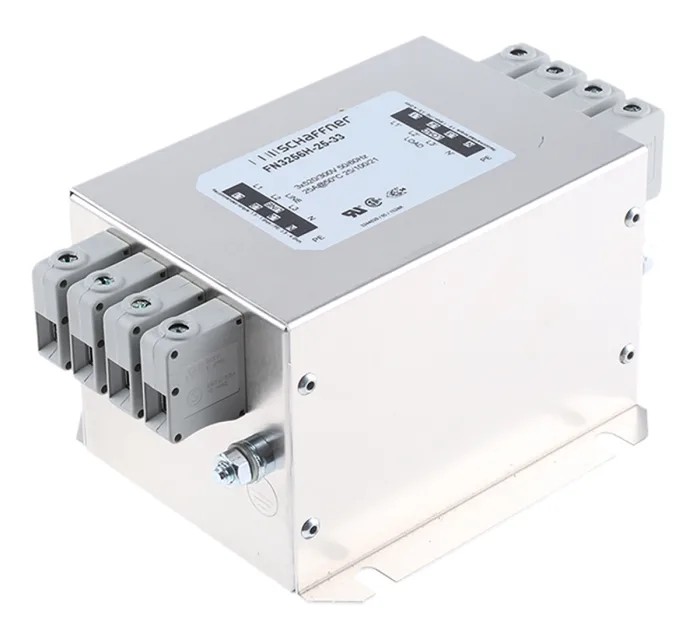

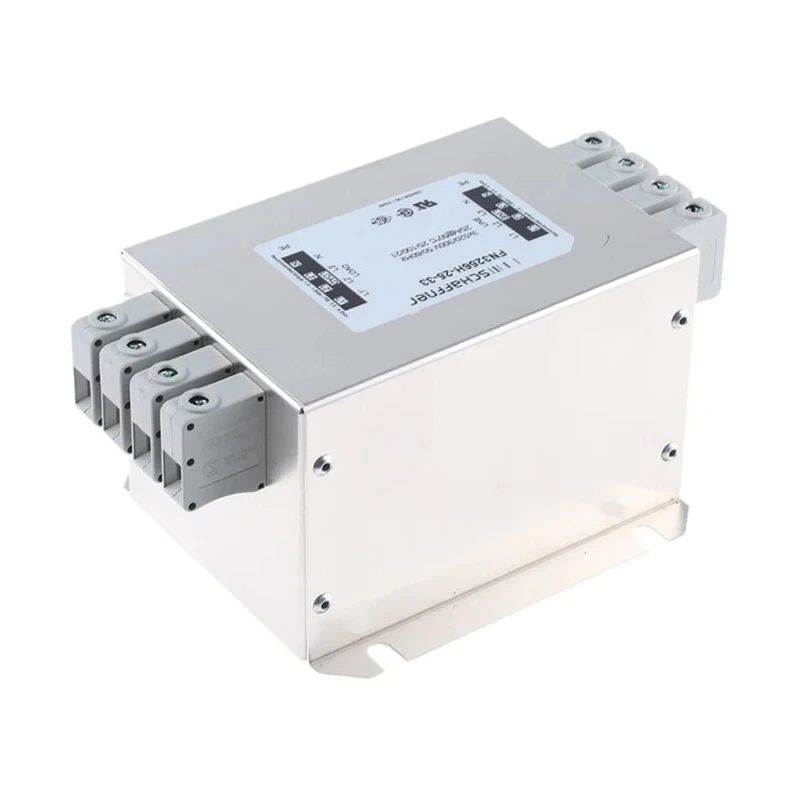

Schaffner Chassis Mount 3-Phase 25 A 520V AC 60Hz EMI Filter Terminal Block FN3256
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 85mm |
| Length | 130mm |
| Model | FN3256 |
| Depth | 118mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3256 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1500kΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 3 |
| Leakage Current | 1mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 9.8W |
Key Features
- Compact and lightweight design suitable for installations requiring minimal space.
- Chassis mount type ensures stable and secure installation.
- Terminal block termination style facilitates easy and safe electrical connections.
- Operates reliably across -25°C to 100°C temperature range.
- Low leakage current of 1 mA enhances energy efficiency and safety.
- Resistance rating of 1500 kΩ ensures effective filtering performance.
- Power loss is limited to 9.8 W for reduced energy waste.
- Designed for industrial applications including motor drives, variable speed drives, frequency inverters, and servo motors.
Product Description
Schaffner FN3256 EMI Filter is a chassis mount, 3-phase filter designed for industrial and electronic applications requiring power line filtering at 25 A maximum current and 520 V AC voltage. This unit operates at 60 Hz and is built to perform reliably under varying environmental conditions with operating temperatures from -25°C up to 100°C.
The compact and space-saving design of the FN3256 series enables quick and simple installation in cabinets or systems with limited space availability. The terminal block type termination ensures secure and touch-safe connections, facilitating ease of wiring with automatic or manual tools.
This EMI filter features a leakage current of only 1 mA, minimizing power loss which is rated at 9.8 W, thus optimizing energy use during operation. The resistance of 1500 kΩ adds to its filtering effectiveness by attenuating unwanted signals with high efficiency.
Typical applications of the Schaffner FN3256 include use in variable speed drives, motor drive systems for industrial machinery, frequency inverters, and servo motor controls. Its robust design and compact size make it an ideal choice for enhancing power quality and reducing electromagnetic interference across diverse industrial sectors.
Compact, space-saving chassis mount design. High attenuation coupled with low leakage current of 1 mA. Safe and solid terminal block connections. Operates within a wide temperature range of -25°C to 100°C. Power loss minimized at 9.8 W during typical use.
Dimensions: 130 mm length × 85 mm height × 118 mm depth. Rated for 25 A maximum current and 520 V AC maximum voltage. Industry applications include electrical power drive systems and motor controls. Manufactured in Thailand, ensuring quality and reliability.
Explore more offerings in EMI Filters and power line filters by Schaffner and other top brands available on EnvMart to enhance your electronics and electrical component projects with trusted industrial-grade quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3256 EMI filter has a maximum current rating of 25 A.
This model operates at a maximum voltage of 520 V AC.
It operates reliably within a temperature range of -25°C to 100°C.
The leakage current for this EMI filter is rated at only 1 mA.
The power loss is limited to 9.8 W during typical use.
The dimensions of this unit are 130 mm in length, 85 mm in height, and 118 mm in depth.
It features a terminal block termination style for secure and safe electrical connections.
The resistance rating is 1500 kΩ, which enhances its filtering performance.
This EMI filter is designed for industrial applications including motor drives, variable speed drives, frequency inverters, and servo motors.
The FN3256 supports a 3-phase configuration.
The FN3256 is manufactured in Thailand.
The FN3256 operates at an operating frequency of 60 Hz.
