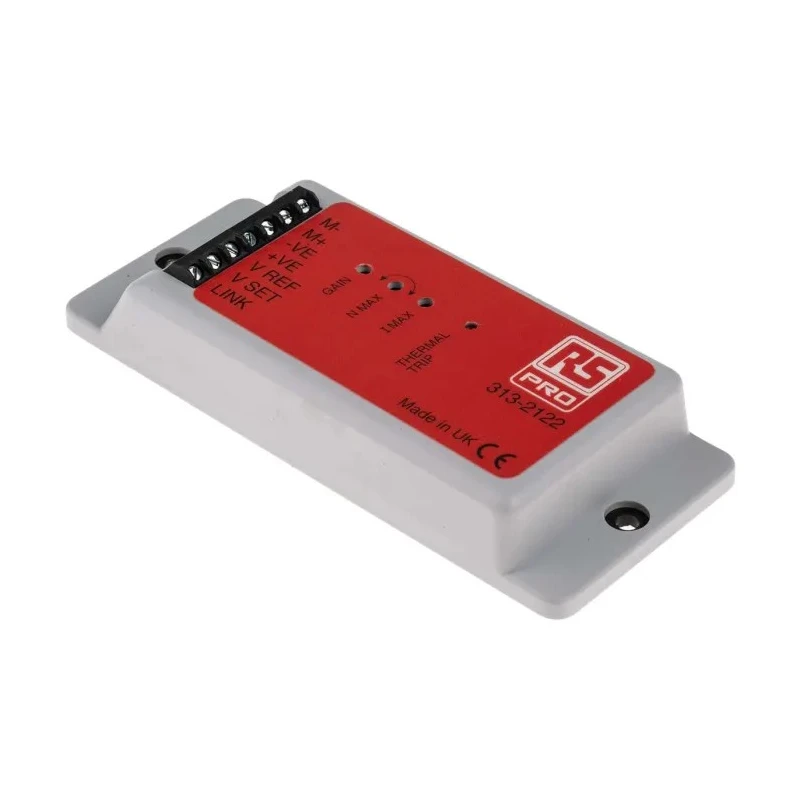

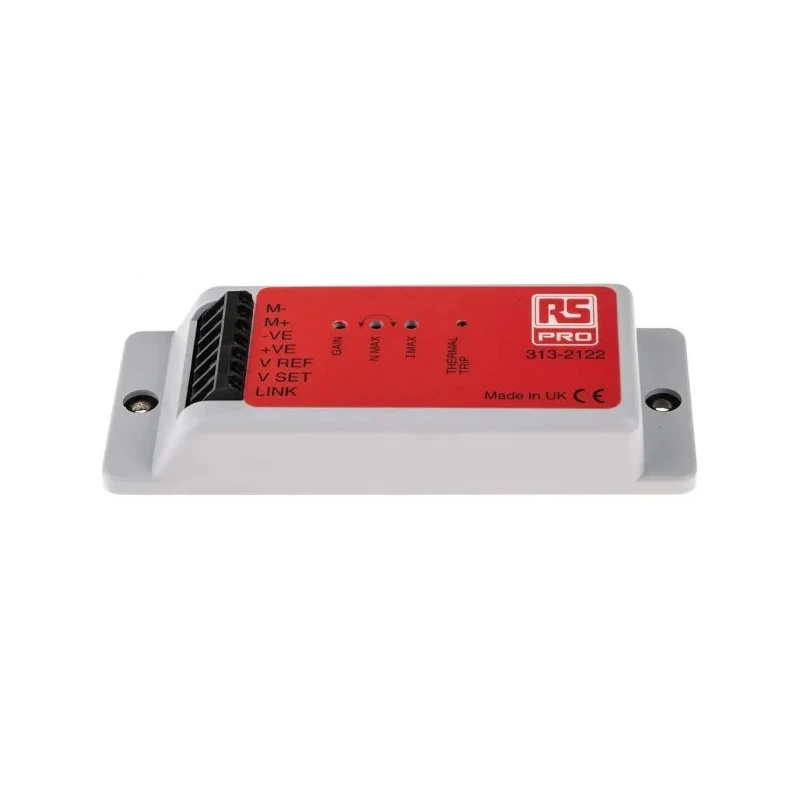

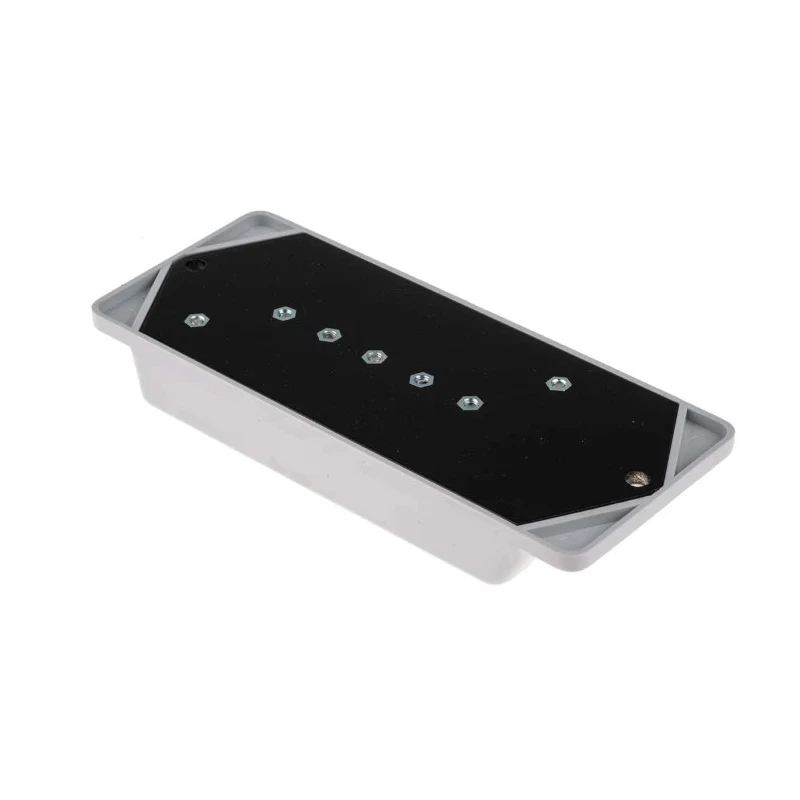

NEUTRAL 1 Phase 10V to 35V, 2.2A DC Motor Controller with Potentiometer Function 313-2122

Free Delivery in India | Lowest Global Shipping Charges

NEUTRAL 1 Phase 10V to 35V, 2.2A DC Motor Controller with Potentiometer Function 313-2122

Name: NEUTRAL 1 Phase 10V to 35V, 2.2A DC Motor Controller with Potentiometer Function 313-2122
Brand: NEUTRAL
SKU: 140737
Price: 262.95 USD
Availability: InStock



Category Motor Controllers Brand NEUTRAL Condition New

Specifications

Country of Origin	United Kingdom
Brand	NEUTRAL
Model	313-2122
Overall Length	133.5mm
Current Rating	2.2A
Overall Width	54mm
Number of Phases	1
Output Voltage	27.5V
Supply Voltage	10, 35V
Standards/Approvals	CE
Overall Depth	20mm
Control Function	Potentiometer
2A SERVO DRIVE UNITBrand	NEUTRAL
Electromen OY, 30V dc DC Motor Controller, Potentiometer FunctionBrand	Electromen OY
CONTROL MODULEBrand	NEUTRAL
Electromen OY 80 W, 20V dc, 34 V dc, 4.2A DC Motor ControllerBrand	Electromen OY

Key Features

Designed for 1 phase DC motor operation with 2.2A maximum current rating.
Supports output voltage of 27.5V suitable for motors up to 60W.
Equipped with potentiometer for accurate voltage control and speed regulation.
Compact dimensions with length 133.5 mm, width 54 mm, and depth 20 mm.
Features thermal protection and current limit adjustment for safety and reliability.
Compatible with linear output motors including geared types.
Four-quadrant motor control enables forward and reverse rotation and dynamic braking.
Suitable for industrial automation, packaging machinery, and medical equipment applications.

Product Description

RS Pro 313-2122 is a high-quality 1 phase DC motor controller designed to regulate speed precisely using a potentiometer function. It operates efficiently within a supply voltage range of 10 to 35 V DC and provides an output voltage capacity of 27.5 V. The controller supports a maximum current rating of 2.2 A, making it ideal for small and geared DC motors rated up to 60 W.

This motor controller employs armature feedback control and four-quadrant operation, allowing it to drive motors in both directions and provide controlled deceleration. Unlike simple controllers, it uses a single polarity voltage supply for enhanced energy efficiency and directional control. Built-in thermal safeguards protect the controller from overheating, and the adjustable current limit adds a layer of protection against short circuits.

The compact unit measures 133.5 mm in length, 54 mm in width, and 20 mm in depth, facilitating easy integration into a variety of applications. It is compatible with linear output motors, widely used in industrial automation systems, packaging machinery, and medical equipment.

Designed for 1 phase DC motor operation with 2.2 A current rating. Voltage control via potentiometer enables fine speed regulation. Supports output voltage of 27.5 V suitable for small motors up to 60 W. Four-quadrant control allows forward/reverse rotation with dynamic braking.

Includes thermal protection and current limit adjustment for enhanced safety. Compact dimensions enable versatile installation in various equipment. Reliable operation with armature feedback control technique. Applicable in industrial automation, packaging, and medical devices.

This RS Pro motor controller exemplifies high standards of quality and reliability for engineers requiring precise DC motor speed control. Its design supports diverse industrial and laboratory environments where efficient motor control is crucial.
