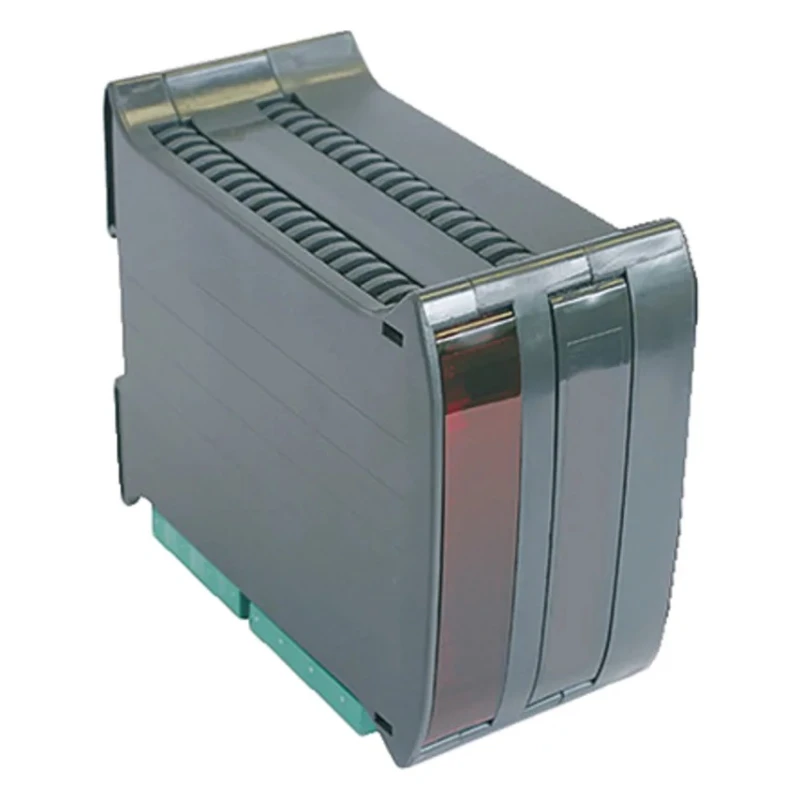

Sprint Electric 24V DC Motor Controller Speed Controller Function 1200XLV-24V

Sprint Electric 1200XLV-24V DC Motor Controller is a robust speed controller designed specifically for use with permanent magnet brushed DC servo motors within the 4 to 12 amp range. The controller operates with a 24V DC supply and supports a rated current of 12A, making it ideal for precise speed and torque control in various applications.

Housed in a compact DIN rail mount package, this motor controller offers versatility and ease of installation in industrial and automation control systems. It supports both current (torque) and speed control modes. For applications demanding high dynamic response, a shaft-mounted DC tacho-generator is recommended to provide accurate speed feedback, whereas in less demanding scenarios, armature voltage feedback (Avf) can be used effectively.

The controller accepts bipolar (±10V) or unipolar (0 - 10V) reference signals for control, enabling forward and reverse motor operation with precise speed adjustment. An adjustable current limit coupled with a fast-acting current control loop safeguards both the motor and controller from sustained overload conditions, providing enhanced durability and safety.

This 12A variant of the Sprint Electric XLV range features an overall length of 105mm, width of 69mm, and depth of 120mm, making it compact yet powerful. It is designed to operate reliably within a temperature range of 0°C to 40°C, suitable for various industrial settings.

Typical use cases include automation equipment, manufacturing machinery, robotics, and other systems requiring fine motor speed regulation. The product’s United Kingdom origin underscores its adherence to quality manufacturing practices.

This DC motor controller supports speed control functionality for dynamic motor applications. It features an output and supply voltage of 24V DC ensuring compatibility with standard DC motors. The compact DIN rail mounting design facilitates easy installation in control panels.

Operational temperature range is from 0°C to 40°C for reliable performance in varied environments. The controller includes adjustable current limit and fast-acting current control to protect motors from overload. Suitable for torque or speed control modes with selectable bipolar or unipolar reference signals.

Applications include industrial automation, electric motor speed regulation, and servo motor control. Manufactured in the United Kingdom ensuring quality and reliability standards. Explore other advanced motor control solutions in our Motors & Pumps catalog at EnvMart for comprehensive automation and control gear needs.
