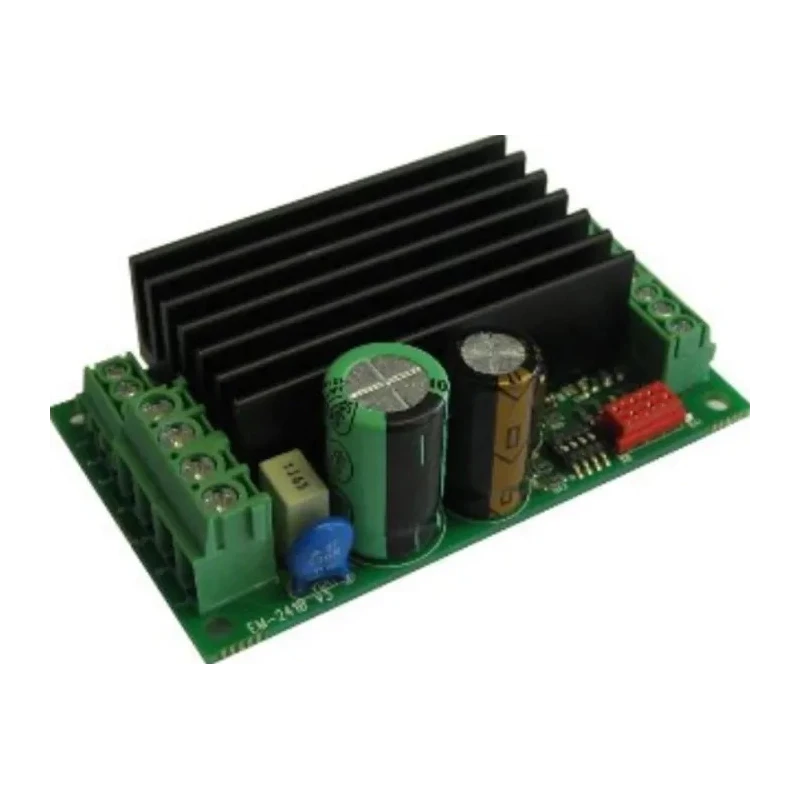

Electromen OY DC Motor Controller 10V - 35V 15A PWM DIN Rail Mount EM-241B-PLI
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | Electromen OY |
| Model | EM-241B-PLI |
| Overall Length | 42mm |
| Current Rating | 15A |
| Overall Width | 72mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 35V |
| Supply Voltage | 10, 35V |
| Standards/Approvals | EN - 55022B |
| Overall Depth | 25mm |
| Control Function | PWM |
| C-version includes wo new parameter | freewheel options for release the rotor of motor, selectable pwm frequency (16kHz pwm being inaudible though current handling capacity is reduced) |
Key Features
- Supports DC supply voltage from 10V to 35V for versatile installation options.
- Provides up to 15A continuous output for high current applications.
- PWM control ensures efficient and precise motor operation.
- Compatible with full bridge brushed DC motors.
- Features adjustable acceleration and deceleration ramps for smooth starts and stops.
- Pulse counter input enables programmable end stops and positioning.
- Flexible control modes include impulse and continuous operation.
- DIN rail mountable for easy industrial integration.
Product Description
Electromen OY EM-241B-PLI is a DC Motor Controller designed for precise and reliable control of brushed DC motors in industrial automation applications. Operating within a wide 10V to 35V DC supply range, it delivers continuous 15A current output and uses PWM (Pulse Width Modulation) function for efficient motor management.
This controller features a full bridge design, supporting both forward and reverse directions, and offers adjustable acceleration and deceleration ramps for smooth motor starts and stops. Its advanced protection mechanisms include current limit (0.1 - 20A, up to 30A at startup), overcurrent shutdown, and overvoltage braking, safeguarding both the motor and the drive circuit.
The EM-241B-PLI version includes a built-in pulse counter for programmable end stops, enabling highly accurate positioning in automated systems. Two settable speeds are available, which can be activated via control input or an analogue speed signal (0 - 5V). Basic motor commands such as forward, backward, and stop can be issued through control inputs, while limit switch inputs help define mechanical end stops.
The device supports flexible control modes: continuous (motor runs as long as command input is active) and impulse (motor responds to momentary command pulses). Special settings for start-up kick and auto-reverse further enhance application flexibility. Fault outputs indicate trip, overcurrent, or zero current conditions - these can also deactivate the drive if needed.
A DIN rail mount facilitates easy installation in industrial control cabinets, and programmable parameters may be set via dedicated interface units or software. With its compact dimensions (42mm length, 72mm width, 25mm depth), EM-241B-PLI is suitable for diverse environments where space and reliability are critical.
Industrial use cases include robotics, conveyor systems, laboratory automation, water treatment valve control, and precision manufacturing where accurate motor positioning and robust performance are required.
Browse more Motor Controllers and automation products by Electromen OY on EnvMart for seamless integration and advanced motion control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a DC supply voltage range from 10V to 35V, allowing for versatile installation options in various applications.
The EM-241B-PLI provides up to 15A continuous output, making it suitable for high current applications.
It employs PWM (Pulse Width Modulation) control for efficient and precise motor operation.
The overall dimensions of the EM-241B-PLI are 42mm in length, 72mm in width, and 25mm in depth.
The EM-241B-PLI operates within a temperature range of -40°C to 60°C.
It includes adjustable acceleration and deceleration ramps, as well as a built-in pulse counter for programmable end stops and positioning.
Yes, this controller is compatible with full bridge brushed DC motors, supporting both forward and reverse directions.
This model is designed for DIN rail mounting, facilitating easy installation in industrial control cabinets.
It complies with the EN - 55022B standards, ensuring a level of electromagnetic compatibility.
The EM-241B-PLI supports flexible control modes, including continuous operation and impulse operation based on command inputs.
It features current limit protection, overcurrent shutdown, and overvoltage braking to safeguard the motor and drive circuit.
This motor controller is suitable for applications such as robotics, conveyor systems, laboratory automation, and precision manufacturing.
