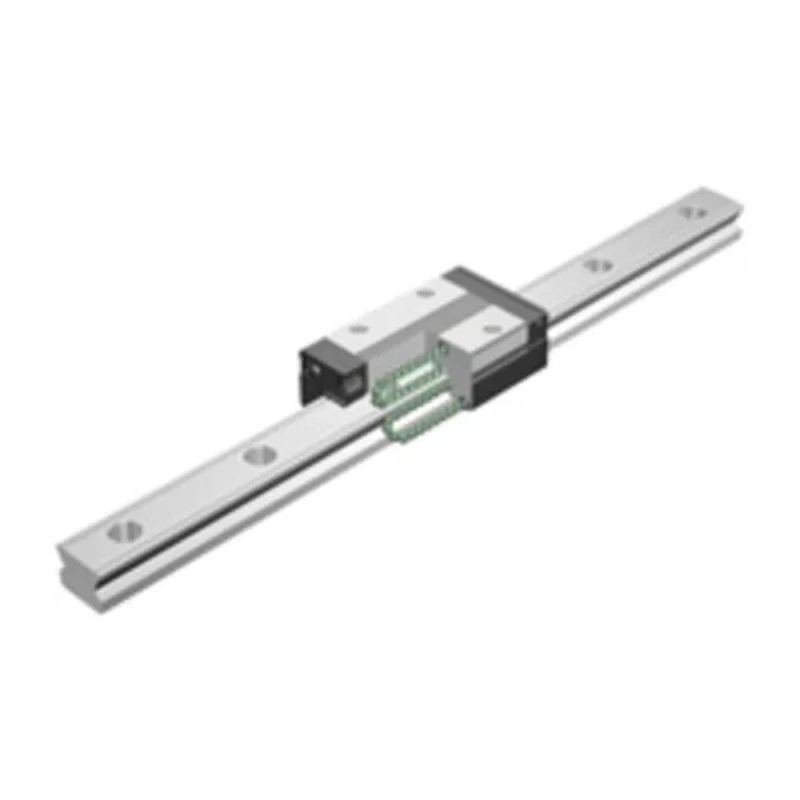

THK Linear Guide Carriage SSR Series 14700 N Dynamic Load SSR15XW1SSC1(GK)
Specifications
| Country of Origin | France |
|---|---|
| Brand | THK |
| Model | SSR15XW1SSC1(GK) |
| Series | SSR |
| Dynamic Load Rating | 14700N |
| Carriage Length | 56.9mm |
| Carriage Width | 34mm |
| Acceptable Rail Width | 15mm |
Key Features
- The carriage length measures 56.9 mm, and the width is 34 mm for precise fit.
- Acceptable rail width is 15 mm, accommodating various linear guide rails.
- Caged ball design reduces friction, enables high-speed rotation, and extends service life.
- Balls run in four precision-ground raceways ensuring smooth and uniform load distribution.
- The block supports loads in all four directions with a contact angle of 45° for enhanced rigidity.
- Manufactured in France meeting quality standards for industrial applications.
- Ideal for use in mechanical machinery, automation, and linear motion systems.
Product Description
THK SSR15XW1SSC1(GK) Linear Guide Carriage SSR Series offers superior performance for industrial linear motion applications, supporting a dynamic load rating of 14700 N. Its compact carriage length of 56.9 mm and width of 34 mm is compatible with a 15 mm rail width, enabling easy integration into precision machinery and automation systems.
This guide carriage incorporates a caged ball design that enhances high-speed rotation capabilities, reduces noise, and significantly extends operational life, minimizing maintenance and downtime. The balls circulate through four precisely ground raceways along the LM rail within the block and endplates, ensuring stable, low-friction movement.
Each ball row is set at a 45° contact angle, facilitating uniform load support in radial, reverse-radial, and lateral directions, thereby increasing rigidity and reliability under varying mechanical stresses. This design decreases friction and improves the precision of motion control in manufacturing, robotics, and assembly line equipment.
Manufactured in France, the SSR series linear guide carriages are built to withstand rigorous industrial conditions, delivering consistent and dependable performance for various mechanical power transmission needs.
Applications include mechanical machinery spares, precision automation equipment, and mechanical power transmission systems that demand reliable and accurate linear motion components.
The carriage length measures 56.9 mm, and the width is 34 mm for precise fit. Dynamic load rating of 14700 N ensures robust performance. Caged ball design reduces friction and noise while enhancing durability. Compact design allows quick interchangeability and problem-free maintenance.
Uniform ball contact angle of 45° provides load support in multiple directions. Manufactured in France under strict quality standards. Explore additional THK Linear Guide Blocks and components at EnvMart for your industrial automation and precision machinery requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this model is 14700 N, ensuring robust performance for various applications.
The carriage length measures 56.9 mm and the width is 34 mm, providing a compact design for precise fit.
This unit is compatible with an acceptable rail width of 15 mm, allowing for easy integration into existing systems.
The caged ball design reduces friction and noise while enhancing high-speed rotation capabilities, which extends the operational life of the carriage.
The ball rows are set at a uniform contact angle of 45°, which facilitates load support in multiple directions.
This model is manufactured in France, adhering to strict quality standards for industrial applications.
It is ideal for mechanical machinery, automation, and linear motion systems that require reliable and accurate components.
The four precision-ground raceways ensure smooth and uniform load distribution, enhancing the stability and performance of the carriage.
It supports loads in all four directions due to its design, which increases rigidity and reliability under varying mechanical stresses.
While specific maintenance intervals are not provided, the design minimizes maintenance needs by extending operational life and reducing friction.
The caged ball design and the precision-ground raceways contribute to the durability of the SSR series by reducing friction and wear during operation.
Its compact dimensions, high dynamic load rating, and reduced friction make it well-suited for precision automation applications.
