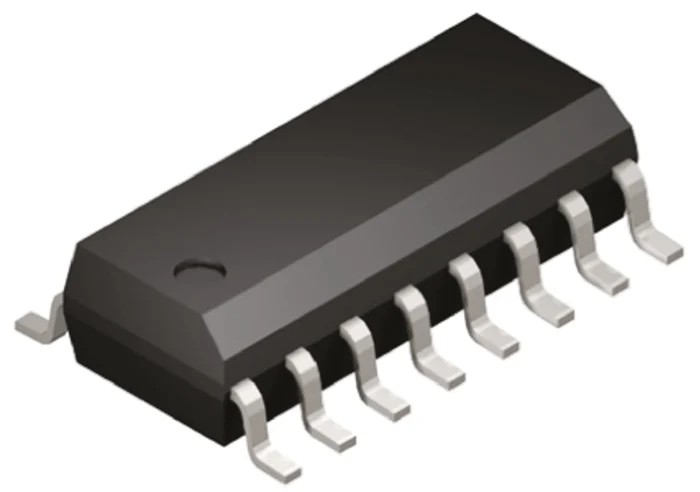

MaxLinear 2-Channel Line Transceiver TTL/CMOS RS232 Inverting 16-Pin SOIC SP232ACN-L/TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.75mm |
| Length | 9.9mm |
| Model | SP232ACN-L/TR |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | TTL/CMOS, RS232 |
| Series | SP232A |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Standards/Approvals | RS-232F, RoHS, ITU V.28, EIA/TIA-232 |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | 1mA |
| Maximum Propagation Delay Time @ CL | 3.0μs |
| Supply Current | 5mA |
| Maximum Low Level Output Current | 3.2mA |
Key Features
- Features 2 channels suitable for line driver and receiver applications.
- Built on CMOS technology ensuring low power consumption.
- Supports inverting polarity with single-ended input type.
- Operates with a supply voltage range between 4.5V and 6V.
- Maximum supply current is 5mA, enabling efficient operation.
- Designed for surface mount use with a SOIC package type.
- Wide operating temperature range from -40°C to 85°C for robustness in various environments.
- Conforms to industry standards including RS-232F, RoHS, ITU V.28, and EIA/TIA-232.
Product Description
MaxLinear SP232ACN-L/TR is a 2-Channel Line Transceiver IC designed for interface applications requiring conversion between TTL/CMOS and RS232 voltage levels. Housed in a compact 16-Pin SOIC surface mount package, this device utilizes CMOS technology to offer low supply current and reliable signal integrity.
The transceiver supports single-ended input with inverting polarity, facilitating effective serial communication in a wide range of electronic equipment. Operating within a voltage supply range of 4.5V to 6V and drawing a maximum supply current of 5mA, the device provides power-efficient performance suitable for embedded systems, industrial controls, and communication interfaces.
Its small form factor with precise dimensions (9.9mm length, 3.9mm width, and 1.75mm height) integrates seamlessly onto PCBs where space constraints are critical. The operating temperature range of -40°C to 85°C ensures dependable operation in harsh environmental conditions commonly encountered in industrial, commercial, and automotive electronics.
The SP232ACN-L/TR conforms to multiple stringent standards including RS-232F, RoHS compliance, ITU V.28, and EIA/TIA-232, making it apt for a variety of serial communication tasks requiring signal line level shifting and line driving/receiving capabilities.
Two channel line transceiver suitable for RS-232 serial interface applications. TTL/CMOS compatible output with inverting polarity supports diverse logic standards. Low power CMOS design optimizes battery life in portable devices.
Surface mount SOIC package simplifies automated PCB assembly. High noise immunity and extended operating temperature range ensure robust performance.
This component is ideal for electronic manufacturers and system integrators seeking a reliable line transceiver IC for serial communications in consumer electronics, industrial controls, and automotive applications.
Explore more high-quality semiconductor components and Line Interface ICs in the Electronics & Electricals category on EnvMart.
