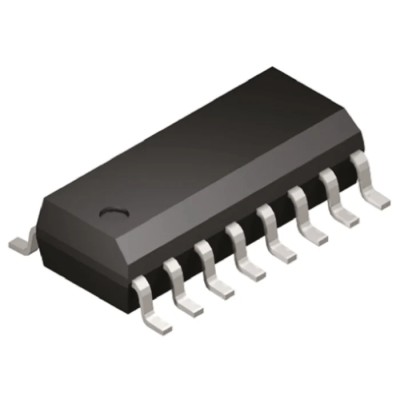

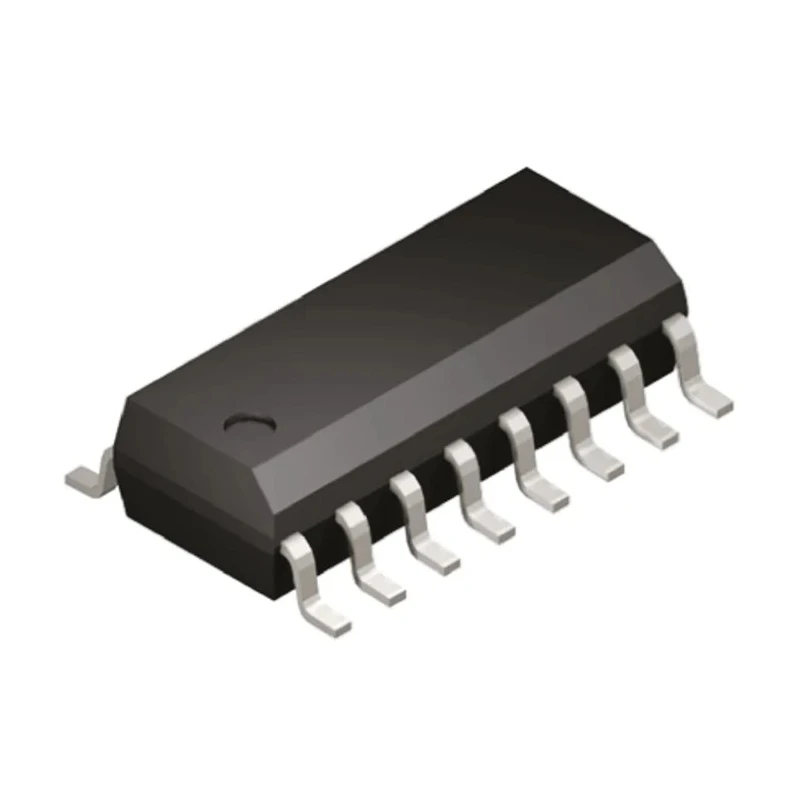

MaxLinear 2-Channel Line Transceiver TTL Inverting 16-Pin SOIC SP3232EBCN-L

MaxLinear SP3232EBCN-L is a high-quality 2-channel line transceiver integrated circuit designed for line interface applications requiring reliable TTL level communication. Packaged in a compact 16-pin SOIC form factor, this device provides inverting TTL outputs and supports single-ended inputs, making it ideal for RS-232 communication protocols in industrial, laboratory, and embedded system environments.

The device operates from a low supply voltage starting at 3V and can support up to 5.5V, enabling flexible usage with various power supply designs. Its low supply current of 1mA helps minimize power consumption, making it suitable for energy-efficient electronic equipment.

Designed with robust propagation delay characteristics (maximum 150ns at typical load capacitance), the SP3232EBCN-L ensures timely data transmission in communication setups. The product features inverting polarity functionality to enhance signal integrity and manage data flow efficiently.

This line transceiver IC is surface-mounted on PCBs via its SOIC package, which measures 6.5mm in length, 5.6mm in width, and 2mm in height, providing a compact and convenient footprint for circuit designers. Operating temperature ranges from 0°C to 70°C support use in standard industrial and commercial environments.

MaxLinear's SP3232EBCN-L is compatible as a drop-in replacement for popular RS-232 line driver and receiver devices, providing reliable electrical interfacing in serial communication circuits.

Operates at voltage range of 3V to 5.5V for versatile power supply compatibility. Low supply current of 1mA ensures energy-efficient operation. Compact 16-pin SOIC surface-mount package suitable for dense PCBs. Supports RS-232 line driver/receiver functionality for serial data transmission.

Inverting TTL outputs and single-ended inputs for signal control. Maximum propagation delay of 150ns provides high-speed data communication. Operational temperature from 0°C to 70°C suitable for general industrial use. Package dimensions: 6.5mm length x 5.6mm width x 2mm height for space-saving design.

Typical applications include industrial automation, laboratory instrumentation, and embedded system communication interfaces. This product helps ensure robust and efficient line transmission in electrical and electronic circuits requiring RS-232 protocol compliance.

Explore more semiconductor Line Interface ICs and transceivers on EnvMart for reliable electronic solutions.
