MaxLinear 2-Channel Line Transceiver CMOS/TTL Inverting 16-Pin SOIC SP232EEN-L/TR

MaxLinear SP232EEN-L/TR is a highly reliable 2-channel line transceiver designed for RS-232 serial communication. It operates with CMOS/TTL logic voltage levels and features an inverting polarity function, making it suitable for various industrial and commercial electronic communication applications.

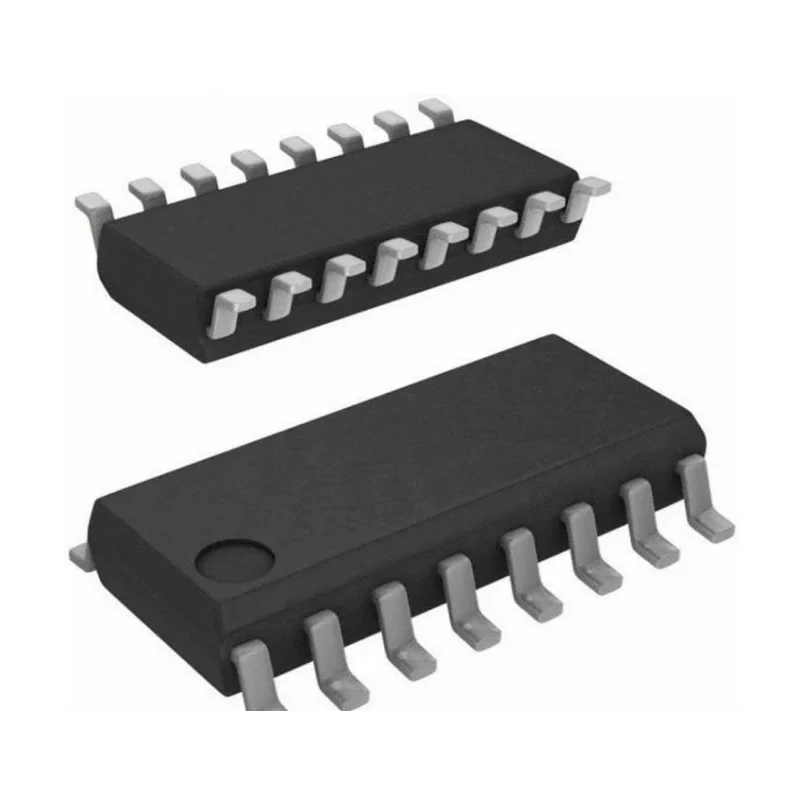

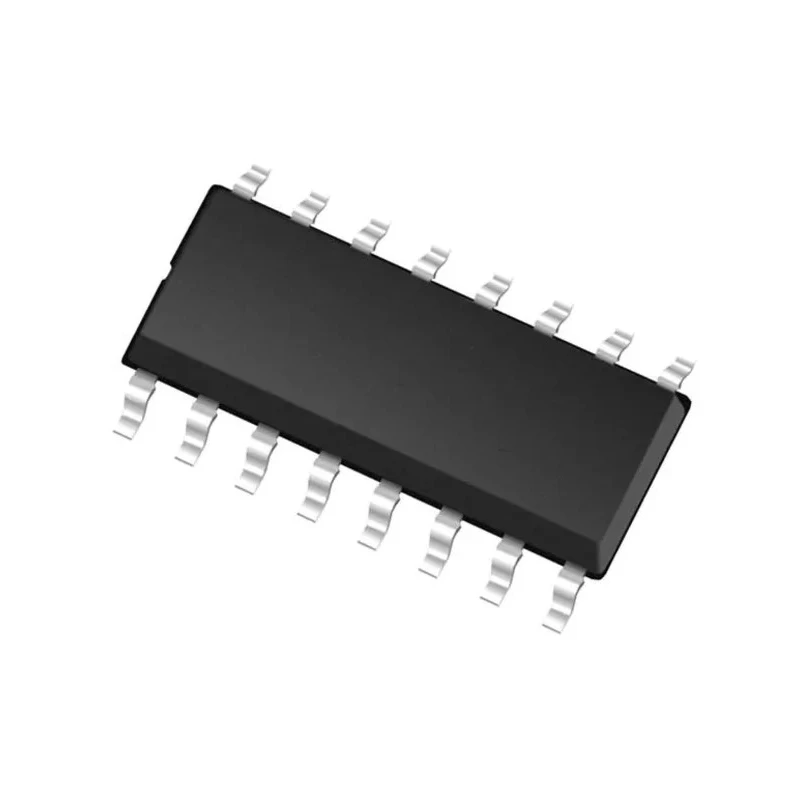

This device comes in a compact 16-pin SOIC surface mount package, offering easy integration into printed circuit boards. It operates efficiently within a supply voltage range of 5 to 6 volts while maintaining low power consumption at a 5mA supply current, thus ensuring energy-efficient system design.

The transceiver supports two channels allowing for simultaneous transmission and reception of signals, enhancing communication throughput. It can reliably operate under extreme temperatures ranging from -40°C to 85°C, suitable for demanding industrial environments.

The device has a maximum propagation delay of 3 microseconds at a capacitive load, ensuring fast and stable communication performance. With precise dimensions of 10.3mm length, 7.5mm width, and 2.65mm height, it occupies minimal PCB space while delivering robust function.

This MaxLinear model SP232EEN-L/TR transceiver is ideal for RS-232 line driver and receiver roles in embedded systems, industrial control, and communication equipment. Its CMOS/TTL compatible logic families ensure seamless interoperability with standard digital circuits.

Operates at 5 to 6 V supply voltage with minimal power consumption. Provides 2-channel line transceiver functionality to enable bidirectional communication. Inverting polarity for flexible signal processing. Compact 16-pin SOIC surface mount package for efficient PCB layout.

Wide operating temperature range from -40°C to 85°C for industrial use. Maximum 3µs propagation delay ensures timely signal transmission. Low supply current of 5mA conserves energy within systems. Exact dimensions: 10.3mm length, 7.5mm width, 2.65mm height.

Suited for RS-232 line driver and receiver applications. Non-automotive compliant but reliable for general electronics and industrial communication. Explore additional semiconductor products in the Line Interface ICs category at EnvMart for comprehensive solutions.
