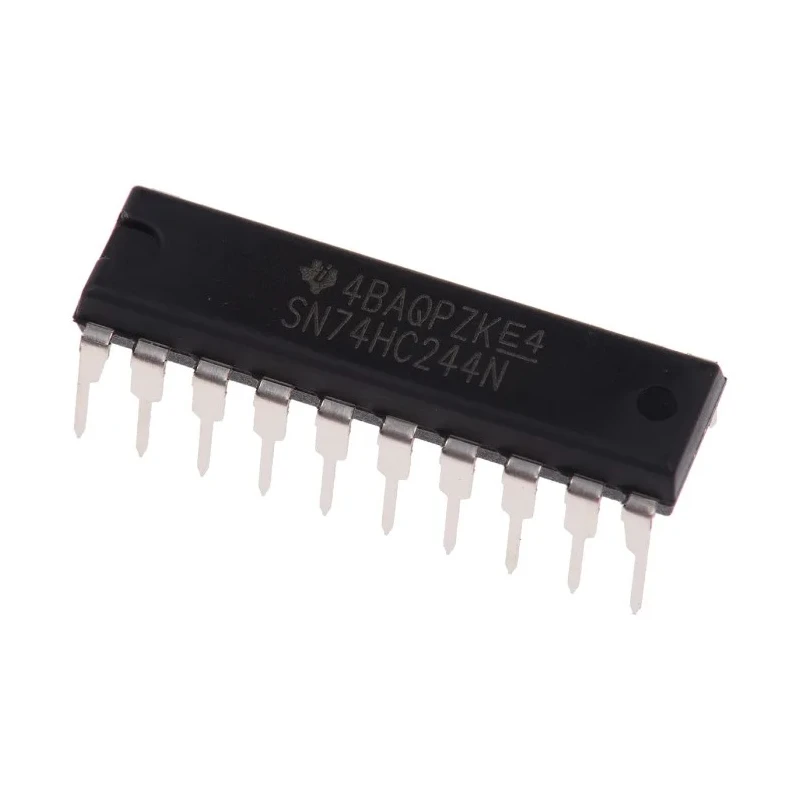

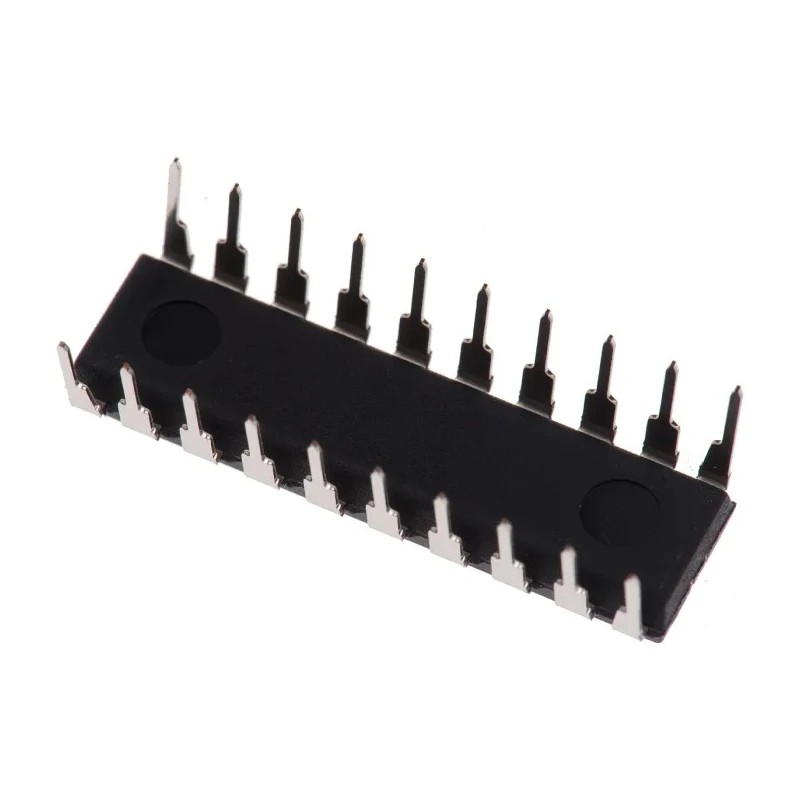

Texas Instruments 8-Channel Buffer & Line Driver IC, 3-State, Non-Inverting, 20-Pin PDIP, Through-Hole, HC Logic SN74HC244N
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.92mm |
| Model | SN74HC244N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Output type | 3 State |
| Series | SN74HC244 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Operating Voltage | 2 to 6 V |
| Pin Count | 20 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -7.8mA |
| Maximum Propagation Delay Time @ CL | 11ns |
| Supply Current | 80μA |
| Maximum Low Level Output Current | 7.8mA |
Key Features
- Provides 8-channel buffering and line driving with non-inverting 3-state outputs.
- Operates within a wide supply voltage range from 2 V to 6 V.
- Through-hole PDIP package with 20 pins is ideal for standard PCB mounting.
- HC logic family ensures compatibility and high-speed CMOS operation.
- Low power consumption and propagation delay optimized for digital applications.
- Supports automotive standard AEC-Q100 for extended reliability.
- Maximum operating temperature up to 85°C enables use in demanding environments.
- Wide input compatibility for single-ended signal interfacing.
Product Description
Texas Instruments SN74HC244N is an advanced 8-channel buffer and line driver IC designed for robust signal interfacing in electronic circuits, offering 3-state, non-inverting outputs housed in a 20-pin PDIP package. As part of the high-speed CMOS (HC) logic family, it seamlessly combines rapid data handling with reliable performance, making it a staple for industrial, automation, and embedded system applications.
The device features eight individual buffer/line driver channels, allowing efficient signal amplification and isolation between circuit stages. The non-inverting 3-state output architecture delivers precise digital logic levels while facilitating high-density bus systems with flexible output enablement.
With a supply voltage range of 2 V to 6 V, the SN74HC244N adapts to various voltage standards common in modern electronic subsystems. The 20-pin PDIP through-hole package is engineered for secure PCB insertion and manufacturing ease, supporting both prototyping and production deployments.
Offering a maximum propagation delay of 11 ns and a supply current of just 80 μA, this IC ensures fast, low-power signal transmission. The automotive standard AEC-Q100 certification highlights its reliability for automotive and industrial electronics, where robustness and high-temperature operation are required.
Its single-ended input configuration, non-inverting logic, output compatibility (CMOS), and current capabilities (-7.8 mA high level, 7.8 mA low level) allow optimal integration into a wide range of digital interfaces, including bus driving, memory interfacing, and microcontroller outputs. The IC supports operation across temperatures from -40°C to 85°C, with physical dimensions of 26.92 mm (length), 6.6 mm (width), and 5.08 mm (height).
These features make the SN74HC244N suitable for use in industrial control systems, laboratory instrumentation, manufacturing automation, and automotive electronic modules, where consistent digital signal transfer is critical. The device is also equipped with standard approvals, ensuring compliance with international reliability standards.
Explore Texas Instruments' complete range of logic ICs and high-speed interface devices in EnvMart’s Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN74HC244N operates within a supply voltage range of 2 V to 6 V.
This model features eight individual buffer and line driver channels.
The maximum operating temperature for this unit is 85°C.
It is housed in a 20-pin PDIP (Plastic Dual In-line Package) for through-hole mounting.
The maximum propagation delay time for the SN74HC244N is 11 ns.
The supply current for this model is 80 μA.
This unit supports single-ended input configuration.
The output type of this IC is 3-state, non-inverting.
The height of this model is 5.08 mm.
It complies with the automotive standard AEC-Q100 for extended reliability.
It is compatible with CMOS for both input and output.
The dimensions are 26.92 mm in length, 6.6 mm in width, and 5.08 mm in height.
