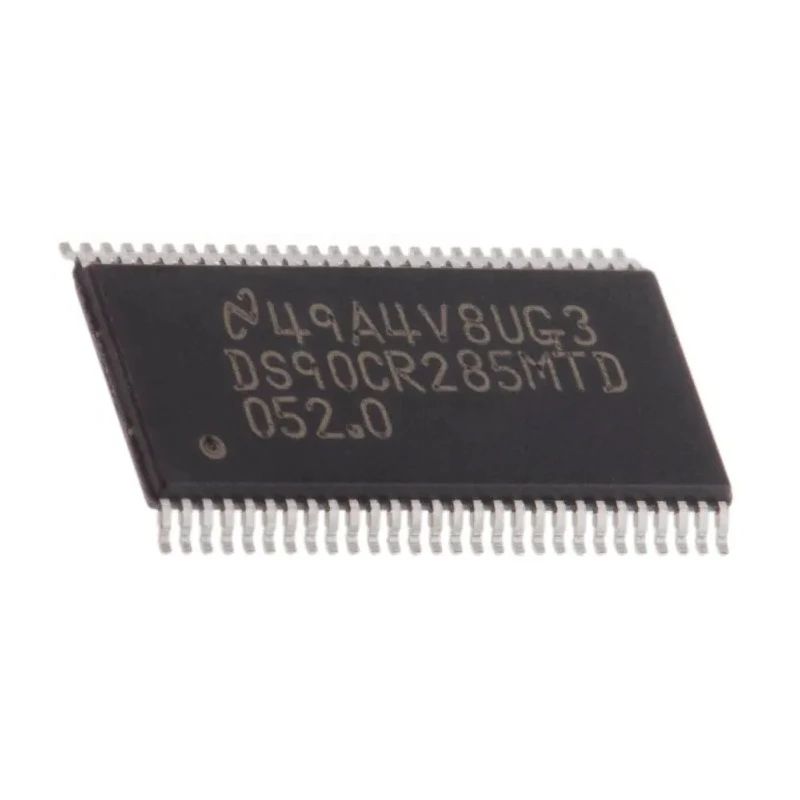

Texas Instruments Transmitter IC 4 LVCMOS, LVTTL LVDS, 56-Pin TSSOP DS90CR285MTD/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 14mm |
| Model | DS90CR285MTD/NOPB |
| Mount Type | Surface |
| Output type | LVDS |
| Series | DS90CR285 |
| Input Type | LVCMOS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 56 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 28 |
| Transmission Data Rate | 1848Mbps |
| Differential Input High Threshold Voltage | 0.1V |
| Differential Input Low Threshold Voltage | -0.1V |
Key Features
- Supports a transmission data rate up to 1848 Mbps.
- Includes 4 drivers and 28 receivers on the chip.
- Operates with minimum supply voltage of 3 V and maximum supply voltage of 3.6 V.
- Designed for surface mount use in compact electronic applications.
- RoHS compliant with ESD protection for reliable performance.
- Suitable for LVDS communication needing high-speed data transfer.
- Operating temperature range from -40°C to 85°C.
- Compact dimensions with 14 mm length and 0.9 mm height.
Product Description
Texas Instruments DS90CR285MTD/NOPB transmitter IC offers high-performance interface capabilities with 4 LVCMOS and LVTTL inputs and LVDS output signals housed in a 56-pin TSSOP surface mount package. It is engineered for high-speed data transmission applications with a transmission data rate of 1848 Mbps, making it suitable for advanced electronic devices requiring reliable and efficient signal interfacing.
This transmitter IC includes 4 drivers and 28 receivers per chip, supporting intricate channel link serialization and deserialization processes. With operation ranging from a minimum supply voltage of 3 V up to a maximum of 3.6 V, and designed for robust ESD protection, this device ensures reliable communication in demanding environments.
The product is RoHS compliant and operates efficiently within a wide temperature range from -40°C to 85°C, suitable for various industrial, automotive, and communication equipment applications. Its compact footprint with 14 mm length and 0.9 mm height fits modern PCB designs requiring space-saving components.
Typical applications include LVDS communication lines used in Firewire, SATA, and SCSI interface designs, emphasizing its utility in data-intensive electronic systems. The device supports dual-use LVCMOS and LVTTL input types ensuring compatibility with a broad range of logic systems.
This transmitter IC meets stringent performance standards and is an ideal component for engineers and designers in telecommunications, computing, and industrial automation sectors seeking efficient data transmission solutions.
Supports a transmission data rate up to 1848 Mbps. Includes 4 drivers and 28 receivers on the chip. Operates with minimum supply voltage of 3 V and maximum supply voltage of 3.6 V. Designed for surface mount use in compact electronic applications.
RoHS compliant with ESD protection for reliable performance. Suitable for LVDS communication needing high-speed data transfer. Operating temperature range from -40°C to 85°C. Compact dimensions with 14 mm length and 0.9 mm height.
Explore further electronic components and Interface ICs in the Electronics & Electricals section at EnvMart for advanced development needs.
