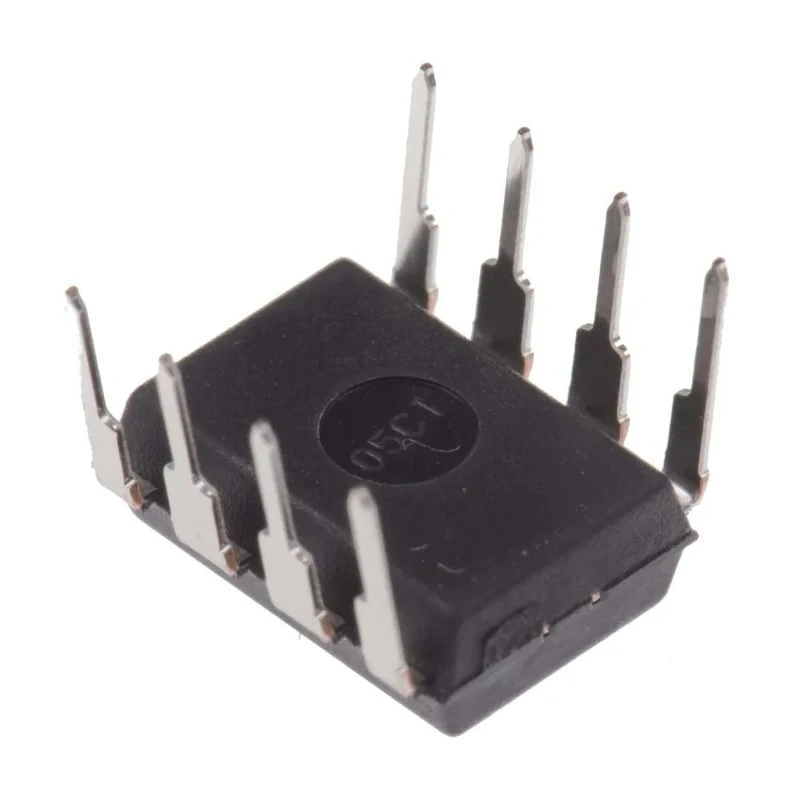

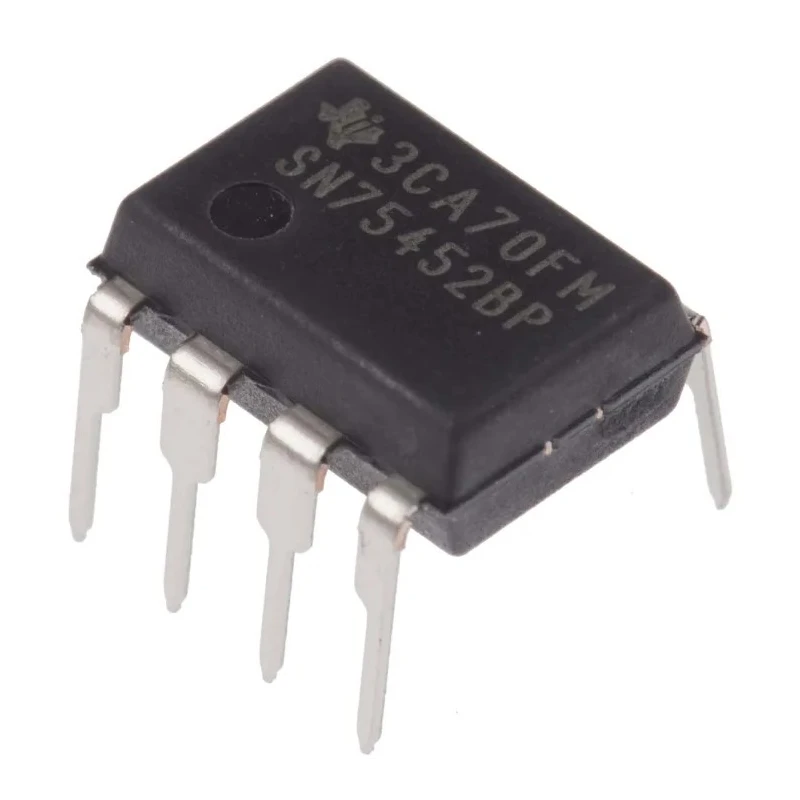

Texas Instruments 2-Channel Peripheral Driver, 8-Pin PDIP, Through Hole, SN75452BP
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | SN75452BP |
| Mount Type | Through Hole |
| Series | SN75452 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 7V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 71mA |
| Number of Drivers | 2 |
| Maximum Turn-On Delay Time | 8ns |
| Maximum Turn-Off Delay Time | 12ns |
Key Features
- Provides two Darlington transistor driver channels for peripheral control.
- Through hole mounting in 8-pin PDIP package for easy integration into standard PCB layouts.
- Supports supply voltage from 5.5V to 7V, suitable for diverse electronic circuit requirements.
- Fast switching times with maximum turn-on delay of 8ns and turn-off delay of 12ns.
- Maximum power dissipation of 1W allows reliable operation in demanding environments.
- Operates reliably within a temperature range from 0°C to 70°C.
- 71mA supply current ensures efficient performance in interface circuits.
- Commonly used in microprocessor peripheral driving, relay and lamp control, and industrial automation.
Product Description
Texas Instruments SN75452BP is a 2-channel peripheral driver IC designed with Darlington transistor configuration, aimed at reliable interface and switching applications in industrial, commercial, and laboratory electronics. The device features an 8-pin PDIP package for through hole mounting, making it compatible with standard PCB assembly processes.
Provides two independent peripheral driver channels, suitable for controlling relays, lamps, and other devices. Darlington transistor outputs enable high current switching while minimizing power loss. Supports supply voltages from 5.5V to 7V, allowing flexibility with various logic families and power rails.
Maximum turn-on delay of 8ns and turn-off delay of 12ns offer rapid response for high-speed switching requirements. Maximum power dissipation of 1W ensures stable function under continuous operation. Operable in ambient temperatures from 0°C to 70°C, suitable for laboratory and industrial environments.
71mA supply current delivers efficient power usage in interface circuits. 8-pin PDIP configuration facilitates easy plug-in and replacement in modular circuit designs.
Common use cases include driving peripheral devices in microprocessor systems, automation sensors, relay and solenoid actuation, and lamp or indicator control in industrial, laboratory, and commercial electronics. The SN75452BP fits applications requiring quick switching, reliable operation, and flexible voltage compatibility.
In industrial electronics and laboratory equipment, this driver IC is often used to interface between logic-level signals and larger loads that require higher current and voltage than typical microcontroller or processor outputs can provide.
Browse more Texas Instruments Interface ICs and peripheral drivers on EnvMart for innovative industrial automation and laboratory electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN75452BP supports a supply voltage range from 5.5V to 7V, making it suitable for various electronic circuit requirements.
It has a maximum power dissipation of 1W, allowing reliable operation in demanding environments.
The maximum turn-on delay time is 8ns and the maximum turn-off delay time is 12ns, providing fast switching capabilities.
This model operates reliably within a temperature range from 0°C to 70°C, suitable for industrial and laboratory environments.
It provides two independent driver channels, allowing for control of multiple peripheral devices.
The SN75452BP has a pin count of 8, designed for through hole mounting.
The dimensions of the SN75452BP are 4.57mm in height and 9.81mm in length.
This model comes in an 8-pin PDIP package, facilitating easy integration into standard PCB layouts.
The supply current for this model is 71mA, ensuring efficient performance in interface circuits.
It is commonly used in microprocessor peripheral driving, relay and lamp control, and industrial automation.
The SN75452BP is manufactured in Mexico.
This model belongs to the SN75452 series of peripheral drivers.
