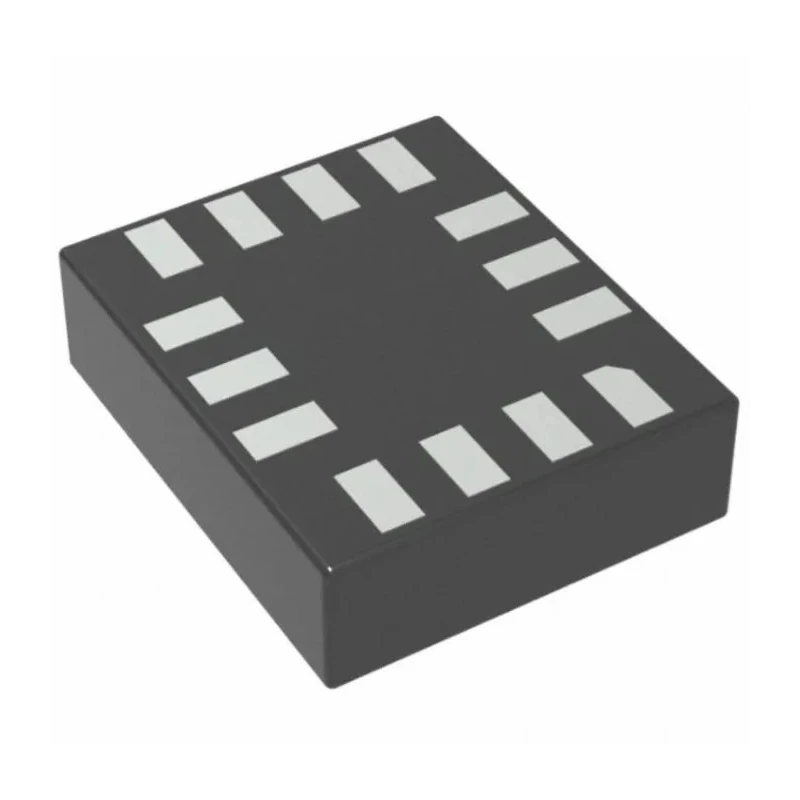

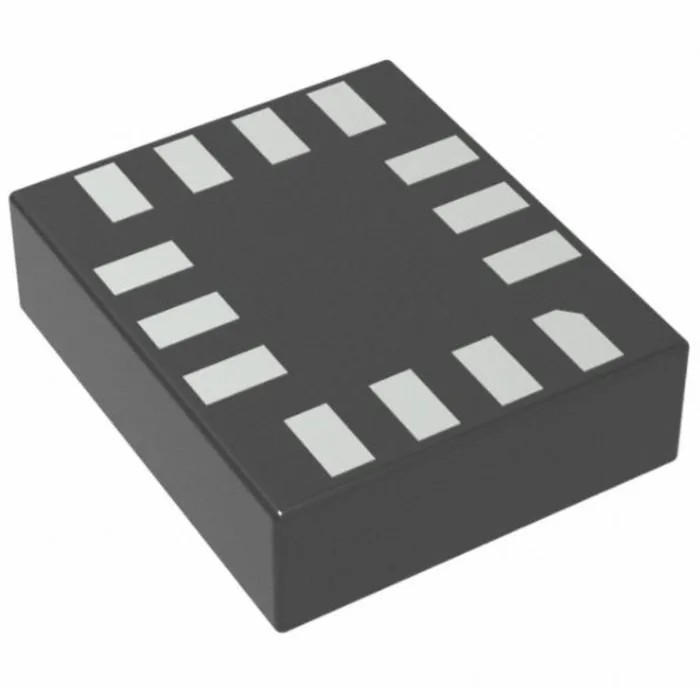

STMicroelectronics 6 Axis Surface Motion Sensor Module 1.71 V to 3.6 V I2C MIPI I3CSM SPI Interface LGA-14L LSM6DSOTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 6 Axis Surface Motion Sensor Module 1.71 V to 3.6 V I2C MIPI I3CSM SPI Interface LGA-14L LSM6DSOTR

Name: STMicroelectronics 6 Axis Surface Motion Sensor Module 1.71 V to 3.6 V I2C MIPI I3CSM SPI Interface LGA-14L LSM6DSOTR
Brand: STMicroelectronics
SKU: 176818
Price: 7.26 USD
Availability: InStock



Category Motion Sensor ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	830μm
Length	3mm
Model	LSM6DSOTR
SENSITIVITY	0.06mg/LSB
Technology	CMOS
Sensor Type	Gyroscope, Accelerometer
Width	2.5mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	LGA-14L
Minimum Operating Temperature	-40°C
Number of axis	6
Interface Type	I2C, MIPI I3CSM, SPI
Standards/Approvals	RoHS
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.71V

Key Features

Operates at a voltage range from 1.71 V to 3.6 V for flexible power supply integration.
Features a 6-axis sensor combining gyroscope and accelerometer functionality.
Incorporates CMOS technology ensuring efficient sensor performance.
Compact LGA-14L package measuring 3 mm x 2.5 mm x 0.83 mm suitable for surface mounting.
Advanced smart FIFO buffer up to 9 Kbyte enables dynamic data batching.
Includes embedded temperature sensor and supports Android compliance.
Supports auxiliary SPI for optimal OIS data output from gyroscope and accelerometer.
Extended operating temperature range from -40°C to 85°C for industrial robustness.

Product Description

STMicroelectronics LSM6DSOTR is a 6 Axis Surface Motion Sensor Module integrating a gyroscope and accelerometer using CMOS technology. This sensor module supports multiple industry-standard interfaces including I2C, MIPI I3CSM, and SPI, operating within a voltage range from 1.71 V to 3.6 V. The compact LGA-14L package (3 mm length, 2.5 mm width, 0.83 mm height) allows seamless surface mounting in compact electronics.

Designed for applications requiring precise motion tracking and sensing, the LSM6DSOTR features an advanced smart FIFO buffer up to 9 Kbyte enabling dynamic data batching suitable for modern OS requirements including Android. It delivers full-scale acceleration ranges of ±2/±4/±8/±16 g and gyroscope ranges up to ±2000 dps. The embedded temperature sensor enhances environmental compensation and accuracy during operation.

This module excels in industrial, consumer electronics, automotive, and wearable applications owing to its extended temperature stability (-40°C to 85°C) and compliance with RoHS environmental standards. Further features include an auxiliary SPI for optical image stabilization (OIS) data output, advanced pedometer, step detector, and significant motion detection capabilities, enabling sophisticated motion sensing algorithms.

The LSM6DSOTR sensor's low power consumption mode ensures an 'always-on' experience with only 0.55 mA in high-performance combo mode, ideal for battery-operated devices. Its small footprint and versatile interface options make it well suited for integration in mobile devices, game controllers, drones, and IoT applications.

Operates between 1.71 V and 3.6 V power supply. 6-axis sensing with integrated gyroscope and accelerometer. Supports multiple digital interfaces: I2C, MIPI I3CSM, SPI. Compact LGA-14L surface-mount package measuring 3 x 2.5 x 0.83 mm.

Low power consumption, suitable for wearable and mobile devices. Advanced embedded features for motion detection and pedometer functionality. Robust operation from -40°C to 85°C in industrial environments. RoHS compliant ensuring environmentally friendly manufacturing.
