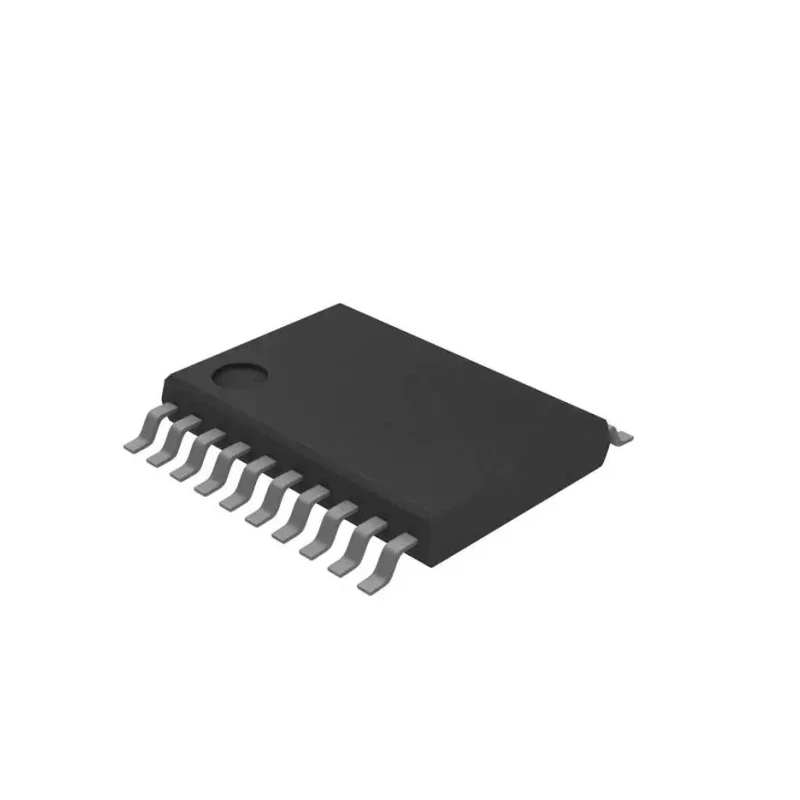

ams OSRAM Surface Mount Hall Effect Position Sensor Serial Interface TSSOP 20-Pin AS5311-ATST
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Height | 1.2mm |
| Length | 6.5mm |
| Model | AS5311-ATST |
| Technology | Hall Effect |
| Sensor Type | Position Sensor |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | AS5311 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 16mA |
Key Features
- Operates at a supply voltage range from 4.5 V to 5.5 V.
- Utilizes Hall Effect technology for contactless position detection.
- Features a 20-pin TSSOP surface mount package with compact size 6.5 mm x 6.4 mm x 1.2 mm.
- Supports operating temperature range from -40°C to 125°C for industrial applications.
- Consumes a supply current of 16 mA for efficient performance.
- Designed for incremental position sensing with serial interface communication.
- High reliability and durability suitable for harsh environmental conditions.
- Manufactured in Austria with new product condition.
Product Description
ams OSRAM AS5311-ATST is a high precision surface mount position sensor based on Hall Effect technology, designed for incremental linear and rotary off-axis position measurement. The sensor operates at supply voltages between 4.5 V and 5.5 V and features a serial interface for robust communication. It is housed in a compact 20-pin TSSOP package measuring 6.5 mm in length, 6.4 mm in width, and 1.2 mm in height, suitable for surface mounting on printed circuit boards.
The sensor delivers contactless motion and position sensing capabilities, ideal for industrial, automation, and motion control applications requiring precise measurements with high immunity to external magnetic stray fields. It can operate reliably across a wide temperature range from -40°C to 125°C, making it suitable for demanding environments.
With a supply current of 16 mA, the device provides an efficient solution without sacrificing performance. The series AS5311 maintains high reliability and durability, ensuring long-term operation in harsh environments. The sensor technology enables high-speed measurement and control of high-speed movements, reducing system material costs by eliminating mechanical components.
Operates on Hall Effect technology and supports serial interface communication for accurate position sensing. Compact TSSOP 20-pin surface mount package facilitating PCB integration. Wide operating voltage range from 4.5 V to 5.5 V.
Robust temperature range from -40°C to 125°C suitable for automotive and industrial applications. Low supply current of 16 mA for power-efficient operation. Ideal for use in industrial automation, robotics, water treatment, and HVAC systems.
High immunity against external magnetic interference ensuring measurement accuracy. Manufactured in Austria under new product conditions maintaining high quality standards. Set includes 1 piece of ams OSRAM AS5311-ATST position sensor. This product is listed under Electronics & Electricals > Sensors > Sensor ICs > Motion Sensor ICs.
Explore more high-quality sensor ICs and position sensors at EnvMart for advanced industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage range from 4.5 V to 5.5 V.
It supports an operating temperature range from -40°C to 125°C, making it suitable for industrial applications.
This unit utilizes a serial interface for communication, allowing for robust data transmission.
The sensor has a compact size with dimensions of 6.5 mm in length, 6.4 mm in width, and 1.2 mm in height.
It consumes a supply current of 16 mA for efficient performance.
This model is based on Hall Effect technology, enabling contactless position detection.
It is suitable for industrial automation, robotics, water treatment, and HVAC systems, requiring precise position measurements.
The sensor features a 20-pin configuration, suitable for surface mounting on printed circuit boards.
This product is manufactured in Austria under new product conditions.
The maximum operating temperature for the AS5311-ATST is 125°C.
This model supports surface mounting, making it easy to integrate into various applications.
It belongs to the AS5311 series, which is designed for high precision position sensing applications.
