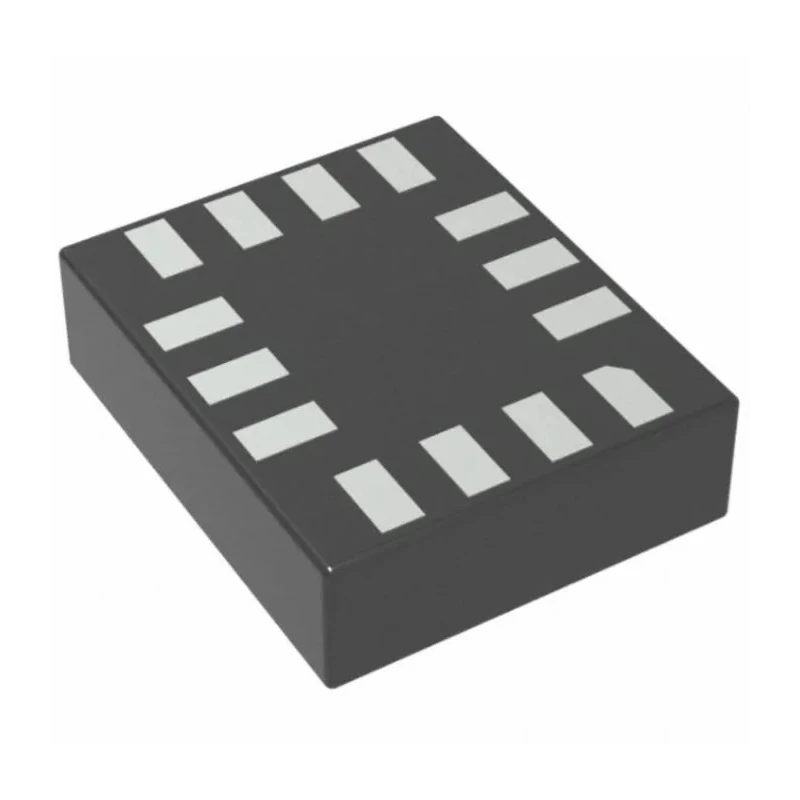

STMicroelectronics 6 Axis Surface Motion Sensor Module 1.71V to 3.6V I2C MIPI I3CSM SPI LGA-14L LSM6DSOTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 830μm |
| Length | 3mm |
| Model | LSM6DSOTR |
| SENSITIVITY | 0.06mg/LSB |
| Technology | CMOS |
| Sensor Type | Gyroscope, Accelerometer |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA-14L |
| Minimum Operating Temperature | -40°C |
| Number of axis | 6 |
| Interface Type | I2C, MIPI I3CSM, SPI |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
Key Features
- Combines gyroscope and accelerometer sensors with 6-axis motion detection.
- Supports multiple interfaces including I2C, MIPI I3CSM, and SPI for flexible connectivity.
- Operates over a wide voltage range from 1.71V to 3.6V.
- Compact LGA-14L package measuring 3mm x 2.5mm x 0.83mm.
- Wide operating temperature range of -40°C to 85°C.
- Low power consumption of 0.55 mA in high-performance combo mode.
- Includes embedded temperature sensor and advanced motion detection features.
- Smart FIFO buffer of 9 Kbytes for dynamic data batching.
Product Description
STMicroelectronics LSM6DSOTR 6 Axis Surface Motion Sensor Module is a high-performance MEMS sensor module integrating a gyroscope and accelerometer with 6-axis sensing capability. Designed for compactness and power efficiency, it operates across a voltage range of 1.71V to 3.6V and is packaged in a small 3mm x 2.5mm x 0.83mm LGA-14L form factor.
This sensor supports various digital interfaces including I2C, MIPI I3CSM, and SPI, enabling seamless integration with modern embedded systems. It features a low power consumption of 0.55 mA in combo high-performance mode, making it well-suited for applications requiring continuous monitoring and always-on sensing.
The module supports a wide operating temperature range from -40°C to 85°C, ensuring reliable performance in challenging industrial, automotive, and consumer electronics environments. It includes advanced embedded features such as an embedded temperature sensor, pedometer, step detector, step counter, significant motion detection, and tilt detection for enhanced motion analysis.
A smart FIFO buffer of up to 9 Kbytes enables dynamic data batching, significantly reducing power consumption and processor load. The sensor supports full-scale ranges of ±2/±4/±8/±16 g for the accelerometer and ±125/±250/±500/±1000/±2000 dps for the gyroscope, providing flexible measurement precision.
The product is RoHS compliant and fabricated using advanced CMOS technology, ensuring high reliability and durability. Its compact footprint and rich feature set make it ideal for use in industrial automation, laboratory instruments, navigation systems, robotics, smartphones, and wearable devices.
Integrate STMicroelectronics LSM6DSOTR 6 Axis Surface Motion Sensor Module in your designs for precise and efficient motion sensing. Environmentally compliant and manufactured to stringent quality standards, this module supports the development of innovative motion sensing solutions.
Combines gyroscope and accelerometer sensors with 6-axis motion detection. Supports multiple interfaces including I2C, MIPI I3CSM, and SPI for flexible connectivity. Operates over a wide voltage range from 1.71V to 3.6V.
Compact LGA-14L package measuring 3mm x 2.5mm x 0.83mm. Wide operating temperature range of -40°C to 85°C. Low power consumption of 0.55 mA in high-performance combo mode. Includes embedded temperature sensor and advanced motion detection features.
Smart FIFO buffer of 9 Kbytes for dynamic data batching. RoHS compliant with CMOS technology fabrication. Explore more products in the Motion Sensor ICs category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a voltage range from 1.71V to 3.6V.
It is packaged in a compact LGA-14L form factor measuring 3mm in length, 2.5mm in width, and 0.83mm in height.
This unit combines gyroscope and accelerometer sensors, providing 6-axis motion detection capabilities.
It supports multiple interfaces including I2C, MIPI I3CSM, and SPI for flexible connectivity.
The maximum operating temperature for the LSM6DSOTR is 85°C.
This model can operate in temperatures as low as -40°C.
It has a low power consumption of 0.55 mA in high-performance combo mode.
The sensitivity of this model is 0.06 mg/LSB.
Yes, it includes an embedded temperature sensor and advanced motion detection features such as a pedometer and step counter.
The smart FIFO buffer in this model has a capacity of 9 Kbytes for dynamic data batching.
The LSM6DSOTR is manufactured in India.
It is fabricated using advanced CMOS technology, ensuring high reliability.
