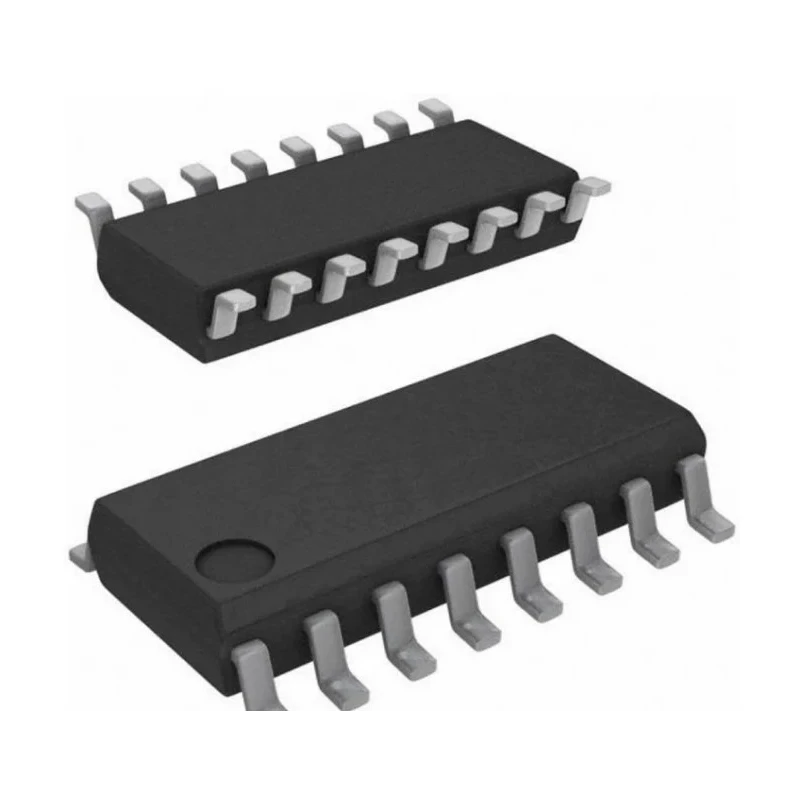

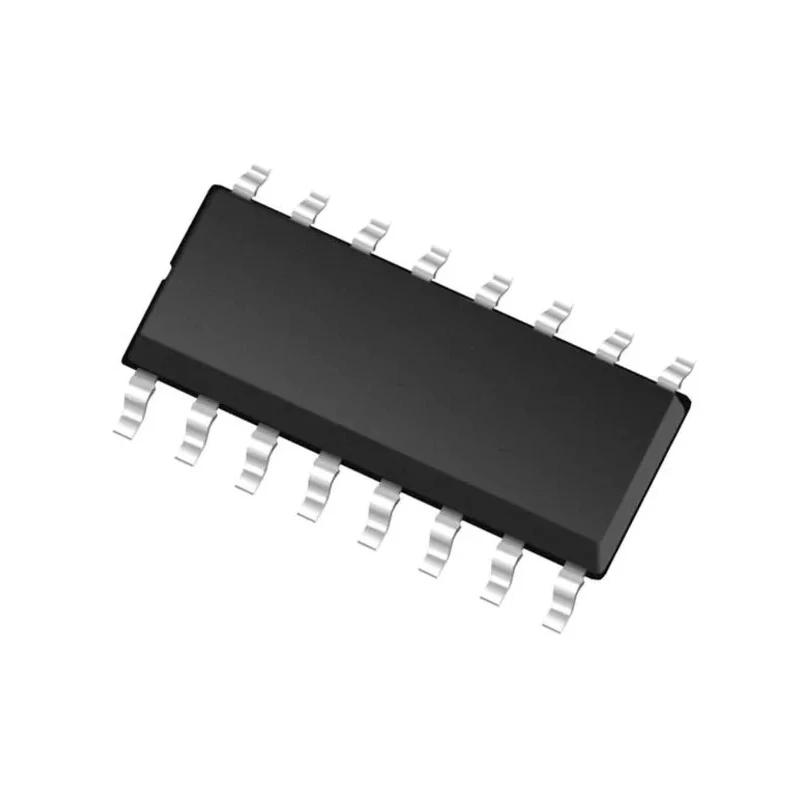

MaxLinear 2-Channel CMOS TTL Inverting Line Transceiver, 16-Pin SOIC SP232EEN-L/TR

MaxLinear SP232EEN-L/TR is a high-quality 2-channel line transceiver IC designed for RS-232 serial communication systems. This device supports CMOS/TTL logic families and operates from a single 5V supply to 6V, making it suitable for various power environments.

The 16-Pin SOIC surface-mount package allows for easy integration into compact electronic circuit designs. It features inverting logic outputs and inputs compatible with both CMOS and TTL levels.

Its maximum propagation delay time of 3 microseconds ensures reliable data transmission with minimal latency. The transceiver operates efficiently with a low supply current of 5mA, supporting energy-conscious electronics.

Suitable for industrial and communication applications, the device functions correctly across a broad temperature range from -40°C to 85°C. Its robust design is compatible with standard RS-232 protocol requirements, enhancing system interoperability.

Operates from 5V to 6V supply voltage. Compact 16-pin SOIC surface-mount package. Two channels supporting simultaneous transmit and receive functions. Inverting CMOS/TTL logic compatible. Low supply current of 5mA ideal for power efficiency.

Maximum propagation delay time of 3μs for fast operation. Wide operating temperature range (-40°C to 85°C) for industrial use. Physical dimensions: 10.3mm length, 7.5mm width, 2.65mm height. Not automotive certified; general electronic use.

This line transceiver is applicable for electronic interface designs in industrial, communications, and automation systems. Its compatibility with standard RS-232 serial communication protocol makes it a versatile choice for various interface IC needs.
