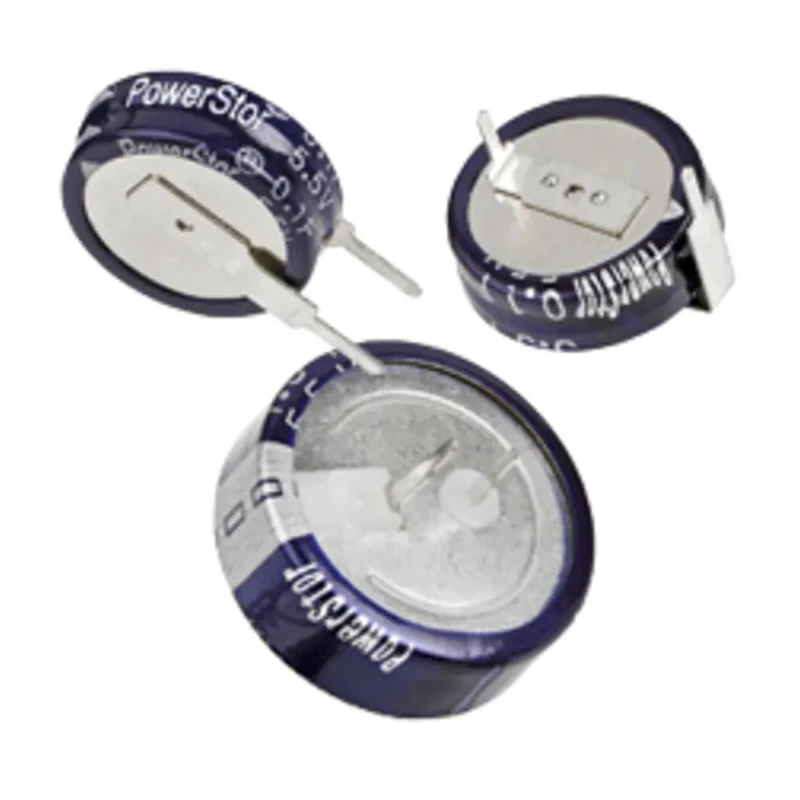

Eaton 0.22 F 5.5V dc Polar Through Hole Supercapacitor KR-5R5C224-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 5.5V dc |
| Diameter | 13.5mm |
| Brand | Eaton |
| Height | 6.5mm |
| Model | KR-5R5C224-R |
| Mount Type | Through Hole |
| Series | KR |
| Maximum Operating Temperature | 70°C |
| Tolerance | -20 to 80 % |
| Lifetime | 1000 h |
| Capacitance | 0.22F |
| Minimum Operating Temperature | -25°C |
| Polarity | Polar |
| Terminal type | Radial |
| Standards/Approvals | EN 60664-1, RoHS |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.4mm |
| Equivalent Series Resistance ESR | 75Ω |
| Capacitor Family | Supercapacitor |
Key Features
- Offers a capacitance of 0.22 Farads with a tolerance range from -20 to 80 percent.
- Operates at a rated voltage of 5.5 volts DC with polar radial terminal type.
- Features through hole mount type with lead diameter of 0.4 mm and pin count of 2.
- Compact dimensions include 13.5 mm diameter and 6.5 mm height for versatile PCB mounting.
- Designed for operating temperatures between -25°C and max 70°C with a lifetime of 1000 hours.
- Equivalent Series Resistance (ESR) is 75 ohms ensuring low power loss during operation.
- Complies with EN 60664-1 and RoHS standards ensuring safety and environmental compliance.
- Suitable for applications such as computers, network devices, HVAC controls, and utility meters.
Product Description
Eaton KR-5R5C224-R is a high-quality supercapacitor rated at 0.22 Farads capacitance and 5.5 volts DC voltage. Featuring a polar radial terminal design and through hole mount type, it provides excellent electrical performance with a capacitance tolerance range from -20 to 80 percent. With leads of 0.4 mm diameter and a pin count of 2, this compact component fits easily on circuit boards with a diameter of 13.5 mm and height of 6.5 mm.
The supercapacitor supports operating temperatures from -25°C up to a maximum of 70°C, offering a lifetime expectancy of 1000 hours. Its Equivalent Series Resistance (ESR) of 75 ohms ensures efficient energy storage and discharge with minimal losses. Eaton PowerStor series uses advanced EDLC electrochemical double-layer capacitor technology combined with high-performance materials, providing high specific capacitance, low leakage current, and long cycle life while maintaining eco-friendly compliance.
This supercapacitor is ideal for industrial and electronic applications such as computer peripherals, network switches and routers, utility meters, HVAC control systems, household appliances, office equipment, and real-time clock backup solutions. It meets the EN 60664-1 safety standard and RoHS environmental directive.
Capacitance tolerance range spans -20 to 80 percent ensuring flexibility in performance. Long cycle life and low leakage current suitable for reliable energy storage solutions. Radial pin terminal design for secure and easy installation on printed circuit boards.
Suitable for use in harsh temperature environments from -25°C to 70°C. Compliance with RoHS and EN 60664-1 for environmental and safety standards.
Manufactured in China, this Eaton KR series supercapacitor embodies quality and advanced technology tailored for a wide range of electronic uses. This product is new, reliable, and tested for demanding industrial environments.
Explore more Eaton Supercapacitors and electronics components on EnvMart for efficient and trustworthy solutions.
