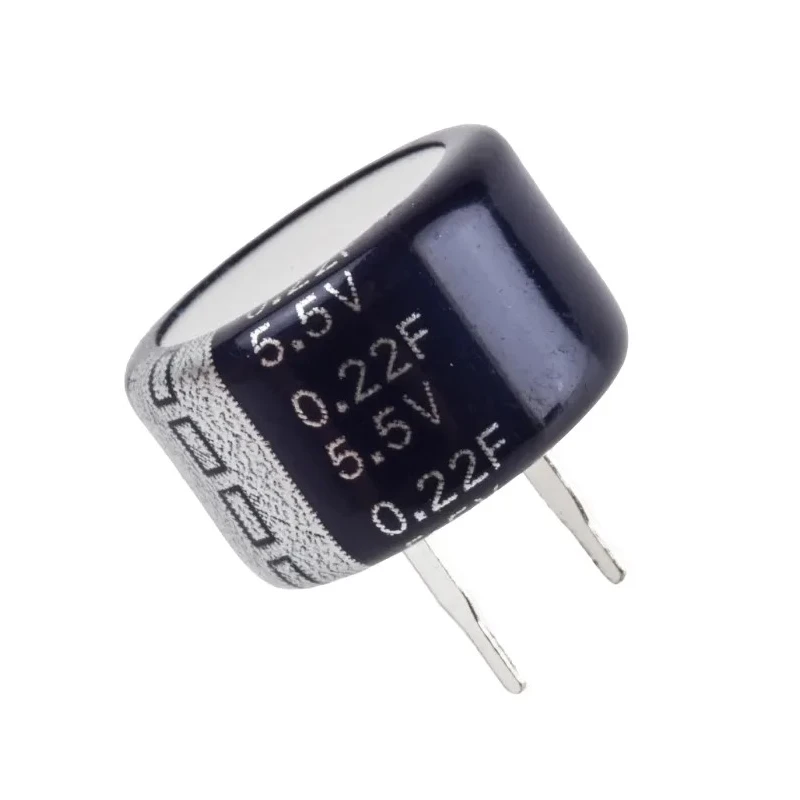

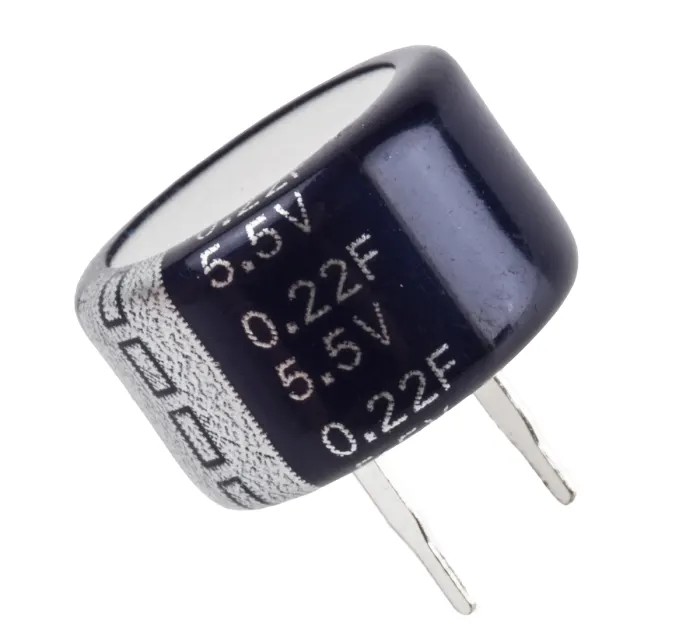

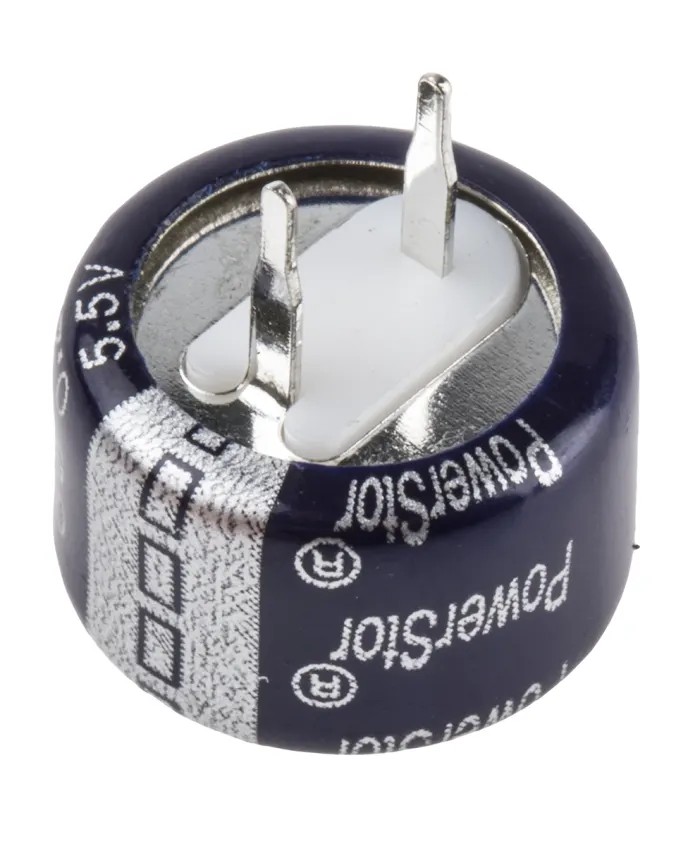

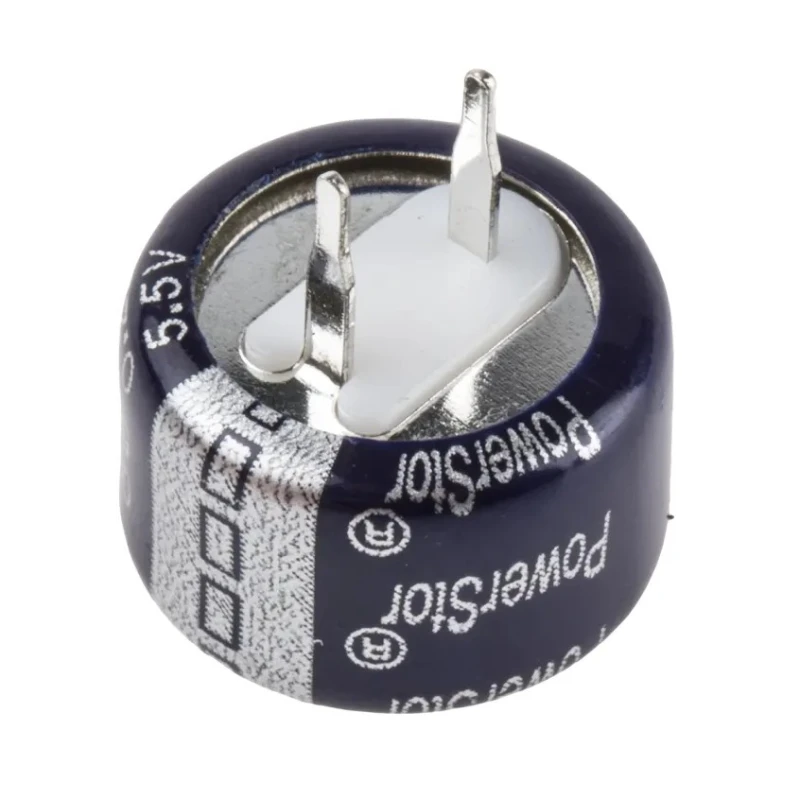

Eaton 0.22 F 5.5V dc Through Hole Supercapacitor, Polar, -20 to 80% Tolerance KW-5R5C224-R

Eaton KW-5R5C224-R 0.22 F Supercapacitor is a high-performance electrochemical double layer capacitor designed for applications requiring reliable energy storage and discharge. Rated for 5.5V dc and mounted through hole, it features a polar design with a capacitance tolerance range of -20 to 80%. With a compact coin case form factor measuring 13.5 mm in diameter and 8.3 mm in height, this supercapacitor is engineered for space-efficient board layouts.

The KW series uses advanced materials to offer ultra-high capacitance with a low equivalent series resistance (ESR) of 50Ω. Its leads have 0.8 mm diameter and 5 mm pitch with solder pin terminals for easy PCB installation. It operates reliably in harsh environments with a temperature range from -40°C to 85°C and supports a lifetime expectancy of 1000 hours, suitable for industrial and commercial electronics.

This supercapacitor complies with RoHS and UL standards, ensuring adherence to safety and environmental guidelines. It is ideal for industrial use cases such as real-time clock (RTC) backup power, electricity utility meters, and motor control units providing robust performance and longevity.

The packaging in bags facilitates handling and integration during automated assembly processes. Eaton, formerly known as Bussmann, ensures quality and innovation in this KW series supercapacitor which balances low leakage current with a long cycle life, suitable for eco-friendly applications.

Electrochemical double layer technology enables ultra-high capacitance. Compact coin case package with precise lead dimensions for mounting. Wide operating temperature range and extended lifetime specification. Conforms to RoHS and UL safety and environmental standards.

Application-oriented design for RTC backup, meters, and motor controls.

This product aids engineers in industrial electronics, power management, and embedded systems design to optimize performance and reliability. Explore more Supercapacitors and capacitor solutions in the Electronics Components category on EnvMart.
