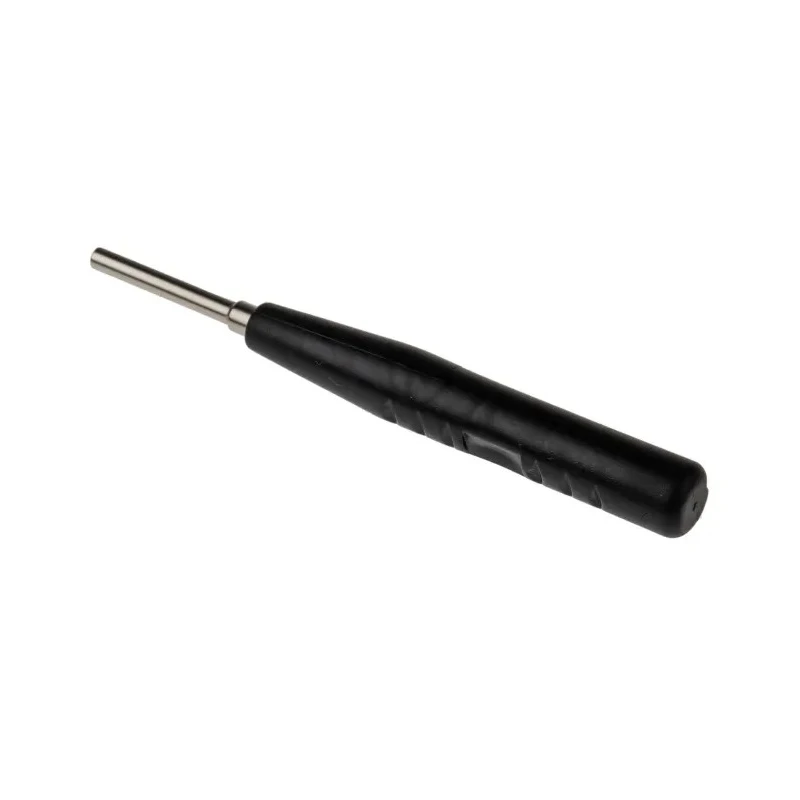

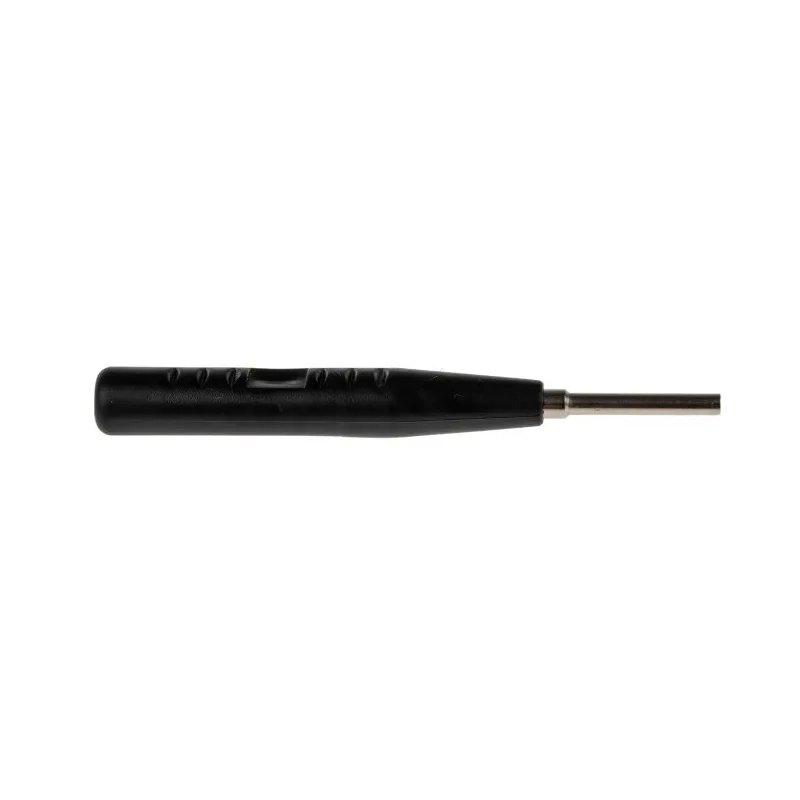

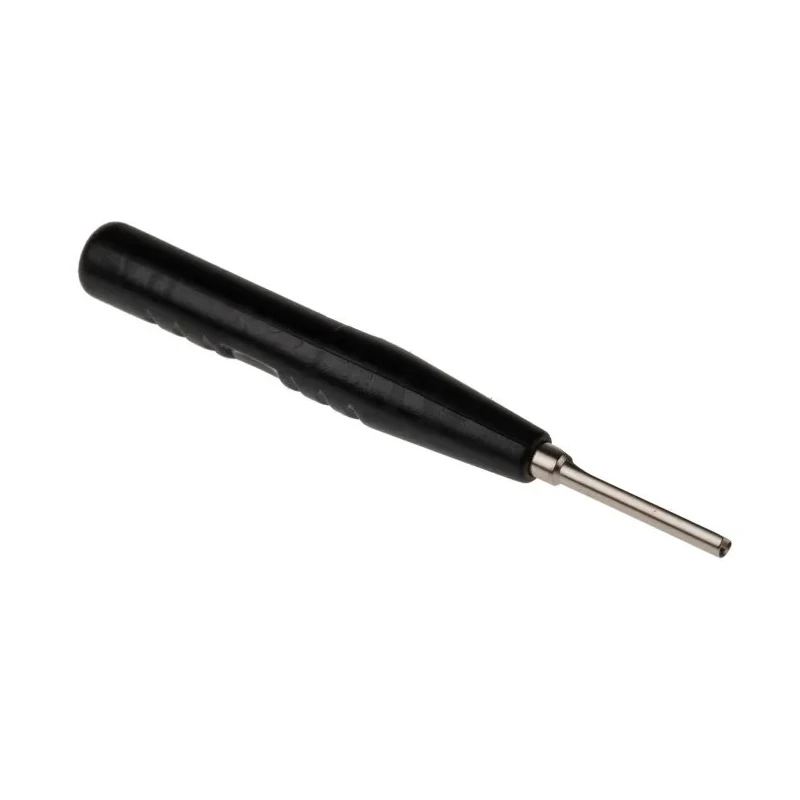

HARTING TB Series Insertion & Extraction Tool for Crimp Contacts 1.7mm Contact Size 63mm Overall Length 09990000171

HARTING 09990000171 insertion & extraction tool from the TB Series is a specialized hand tool designed to facilitate the installation and removal of crimp contacts in TB-series connectors. Featuring a contact size accommodation of 1.7mm and an overall length of 63mm, it ensures precise and controlled handling of terminal contacts used in industrial electrical and electronic assemblies.

The tool’s narrow tip profile, with a tip width of 2.2mm and tip length of 15mm, allows technicians to access confined connector cavities while minimizing the risk of damage or deformation to the contact terminals during extraction and insertion operations. Its robust build and ergonomic design support reliable use in various environments, including automation systems, electrical maintenance, and mechanical control panels.

Designed specifically for crimp-style contacts, this tool aligns perfectly with TB-series connector products to streamline wiring, reworking contact arrays, and maintenance tasks. Manufactured in Germany, it complies with IEC 60 807 standards ensuring high quality and long service life.

Narrow tip profile enables access into confined connector cavities. Compatible with crimp contacts ensuring secure engagement with terminals. Tip dimensions of 2.2mm width and 15mm length prevent contact deformation. Overall length of 63mm allows reach into recessed connector assemblies.

Ergonomic handheld design for ease of insertion and extraction. Suitable for automation, electrical maintenance, and control panel applications. Made in Germany ensuring quality and durability. Conforms to IEC 60 807 standards.

This tool is ideal for industrial, manufacturing, laboratory, and electrical sectors where precise contact insertion and extraction within connector assemblies are critical. It helps maintain and rework wiring within automation control cabinets, distribution modules, and junction blocks efficiently and safely.

Explore the range of HARTING hand tools at EnvMart to find compatible accessories and complementary products tailored for professional electrical assembly and maintenance tasks.
