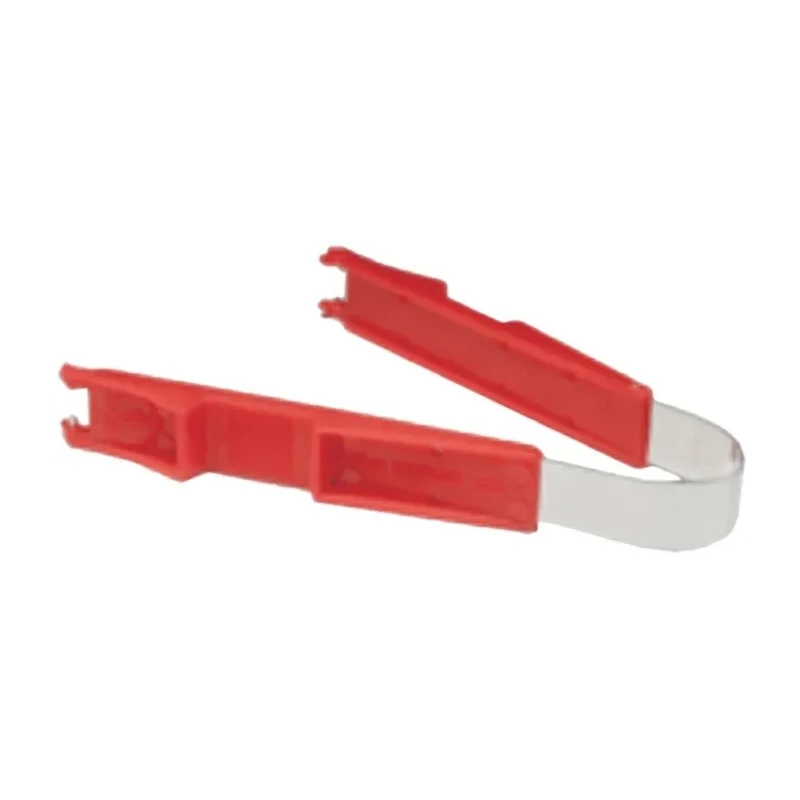

Molex HANDTOOL Series Insertion & Extraction Tool Crimp Contact for Picoflex Connectors 88.9mm 69008-1070
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Overall Length | 88.9mm |
| Series | HANDTOOL |
| Sub Type | Extraction & Insertion Tool |
| Contact Type | Crimp |
| For Use With | Picoflex Connectors |
Key Features
- The tool features a sturdy parallel action hand tool design for reliability.
- Precision engineered location nests and termination blades ensure quality termination.
- Overall length measures 88.9mm for ease of use in tight spaces.
- Specifically designed to terminate Picoflex housings for low to medium volume production.
- Compatible with IDT Picoflex PF-50 Series wire to board connectors.
- Highly suitable for automotive and consumer electronics industries due to vibration and shock resistance.
- Offers 50% space saving compared to traditional pitch connectors.
- Low profile design with 6.4mm mated height reduces assembly space requirements.
Product Description
Molex 69008-1070 HANDTOOL Series insertion & extraction tool is a crimp contact tool designed for use with Picoflex connectors. It is a precision-engineered hand tool with an overall length of 88.9mm, providing reliable quality termination of Picoflex housings, particularly suitable for low to medium volume production environments.
The tool integrates sturdy parallel action mechanics with precision location nests and termination blades, ensuring optimal crimping and extraction performance. It is specifically designed for the IDT Housings with typical stock numbers 324-8047 and compatible with Picoflex IDT connectors, including the PF-50 Series wire-to-board connectors.
The Picoflex Series by Molex is recognized for its high-density application suitability, offering 50% space savings compared to traditional pitch connectors. The pre-terminated cable assemblies and lower profile design of only 6.4mm mated height make this connector series ideal for automotive and consumer electronics industries subject to vibration and shock.
Additional design features include excellent polarization for error-proof assembly and integral strain relief to maintain mechanical stability under stress. This tool is essential for technicians and engineers working in industrial, manufacturing, automotive, and electronics assembly applications requiring dependable Picoflex termination solutions.
The tool design promotes accurate and repeatable terminations with enhanced durability. It supports a wire pitch of 1.27mm optimized for wire-to-board connections. Ergonomic design reduces operator fatigue during repetitive use.
Tool is compact and easy to handle for precise insertion and extraction operations.
EnvMart provides this Molex insertion and extraction tool for professionals seeking dependable and efficient hand tools for Picoflex connector applications. Browse our comprehensive Hand Tools category for related cable and crimping tools suitable for your industrial and commercial needs.
Explore more products in our Insertion & Extraction Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this tool is 88.9mm, which facilitates use in tight spaces.
It is specifically designed for use with Picoflex connectors, particularly the PF-50 Series wire-to-board connectors.
This model supports crimp contact type, ensuring reliable terminations for Picoflex housings.
It is highly suitable for the automotive and consumer electronics industries due to its vibration and shock resistance.
The tool features sturdy parallel action mechanics, precision location nests, and termination blades, ensuring quality termination.
Yes, the ergonomic design of this tool reduces operator fatigue during repetitive use, enhancing comfort.
This tool supports a wire pitch of 1.27mm, optimized for wire-to-board connections.
The mated height of the Picoflex connectors is 6.4mm, which helps reduce assembly space requirements.
The country of origin for this tool is India.
The tool promotes accurate and repeatable terminations, ensuring optimal crimping and extraction performance.
This tool is essential for technicians and engineers in industrial, manufacturing, automotive, and electronics assembly applications.
Additional features include excellent polarization for error-proof assembly and integral strain relief for mechanical stability under stress.
