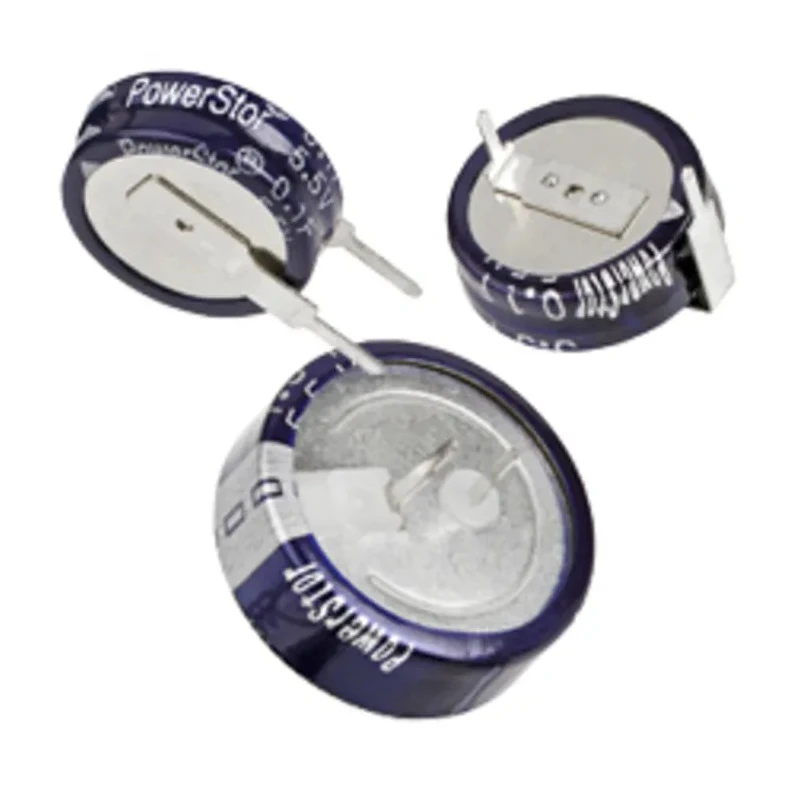

Eaton 0.1 F Supercapacitor 5.5V DC Through Hole Radial Terminal KR-5R5H104-R

Eaton KR-5R5H104-R is a 0.1 F supercapacitor designed to offer ultra-high capacitance and long lifetime with a rated voltage of 5.5 V DC. This through-hole mounted radial terminal capacitor features advanced electrochemical double layer capacitor (EDLC) technology combined with high-performance materials to deliver reliable energy storage and power stabilization.

This supercapacitor operates reliably within a wide temperature range from -25°C to 70°C, making it suitable for demanding industrial, laboratory, and commercial applications such as computers, network switches, utility meters, HVAC control systems, and office equipment. Its -20 to 80 % capacitance tolerance enables flexibility in circuit design.

The capacitor’s physical construction includes an 11.5 mm diameter and 5.2 mm height, with 10 mm lead pitch and 0.2 mm lead diameter, facilitating easy PCB assembly and integration. With an equivalent series resistance (ESR) of 75Ω and polar design with 2 pins, it balances performance and installation needs effectively.

High specific capacitance for efficient energy storage. Low leakage current supports extended service life. Long cycle life ensures durability in repetitive charge-discharge cycles. Eco-friendly materials contribute to environmental sustainability.

Conforms to EN 60664-1 and RoHS standards for quality and compliance. Wide application range across computing, network, HVAC, and utility sectors. Compact radial terminal design for through-hole PCB mounting. Polar capacitor with robust physical dimensions optimized for circuitry.

Manufactured in China adhering to high-quality processes.

This Eaton supercapacitor model KR-5R5H104-R is an essential component for designers requiring dependable energy backup and rapid charge-discharge cycles in compact form factors. It is suitable for industrial, scientific, and commercial use cases requiring stable and long-lasting power storage solutions.
