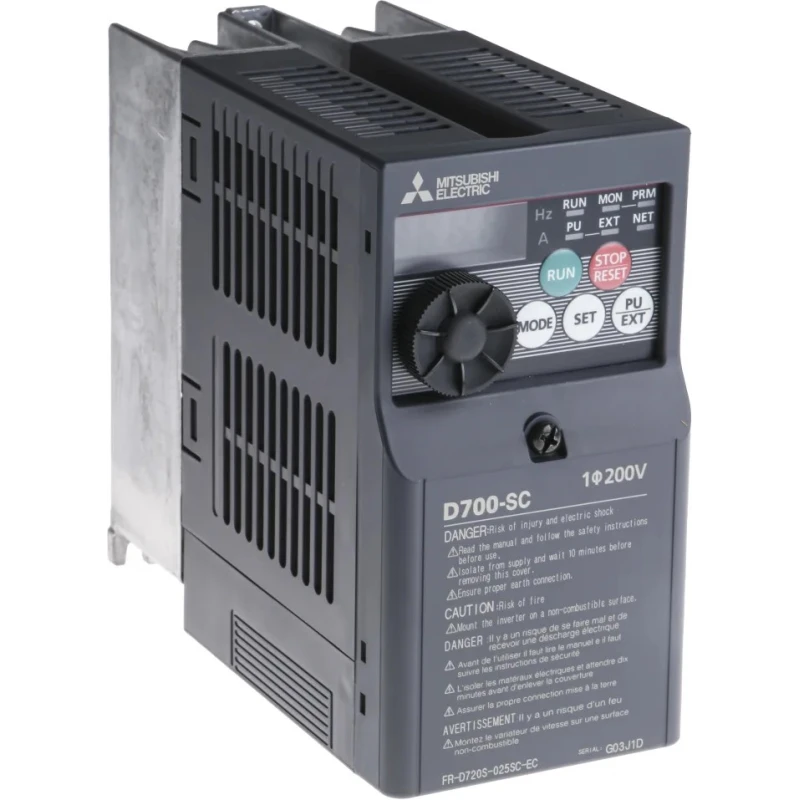

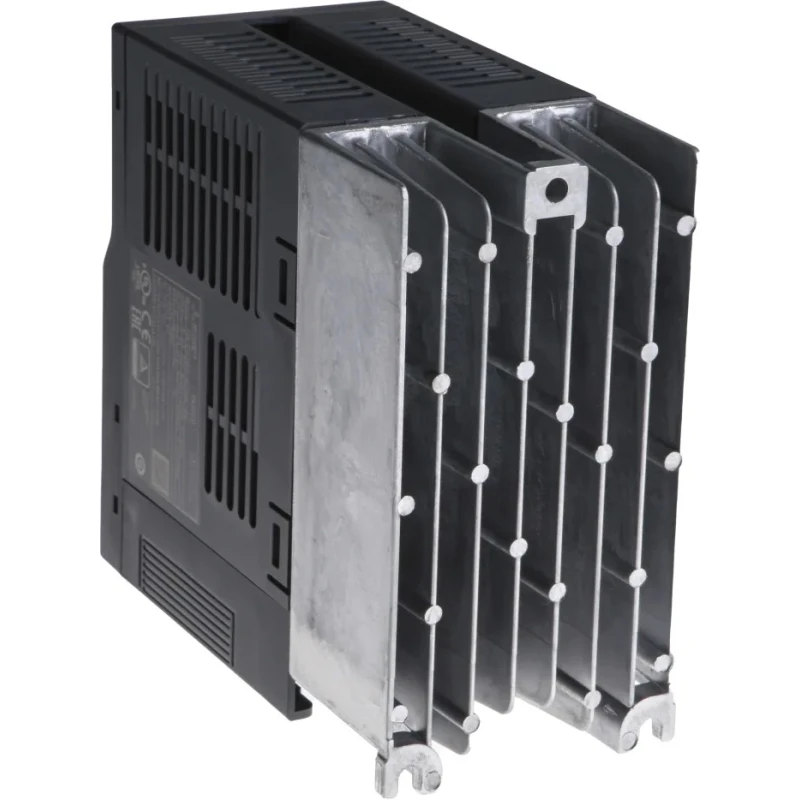

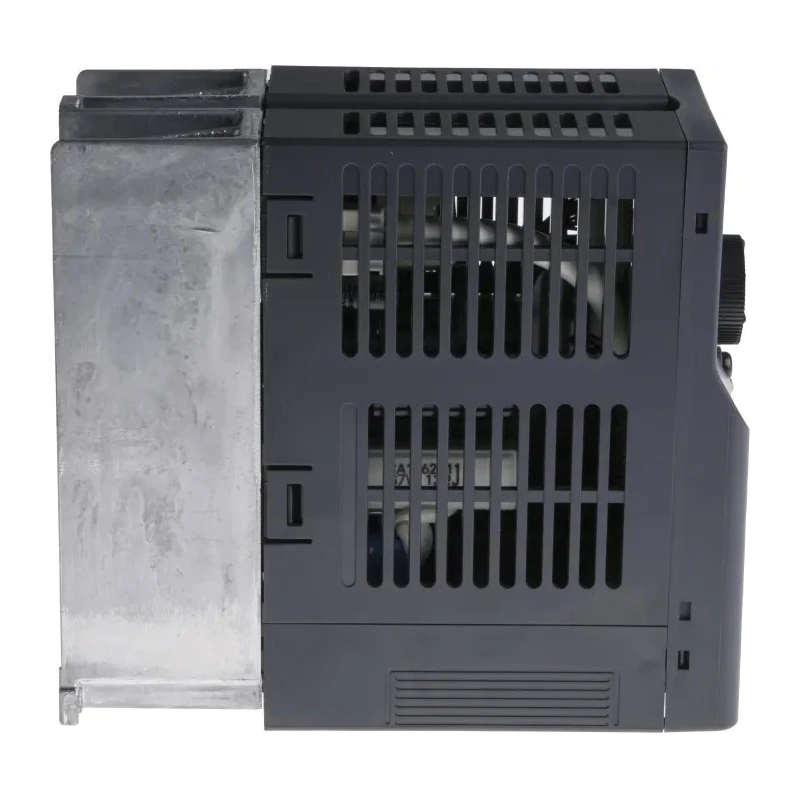

Mitsubishi Electric 400 W 1 Phase Wall Mount Variable Frequency Vector Control Inverter Drive FR-D720S-025SC-EC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-D720S-025SC-EC |
| IP Rating | IP20 |
| Drive Type | Variable Frequency, Vector Control |
| Mount Type | Wall |
| Overall Length | 128mm |
| Series | FR-D720S |
| Overall Width | 68mm |
| Power Rating | 400W |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 1 |
| Maximum Output Current | 2.5A |
| Standards/Approvals | CE, GOST, EC, EAC, RoHS, UL/cUL |
| Overall Depth | 142.5mm |
| Minimum Supply Voltage | 230V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Induction Motor |
Key Features
- The inverter drive offers compact dimensions with overall length 128 mm, width 68 mm, and depth 142.5 mm.
- Equipped with sensor-less vector control for exceptional speed and torque performance.
- Features easy installation through integrated spring clamp terminals for control and power lines.

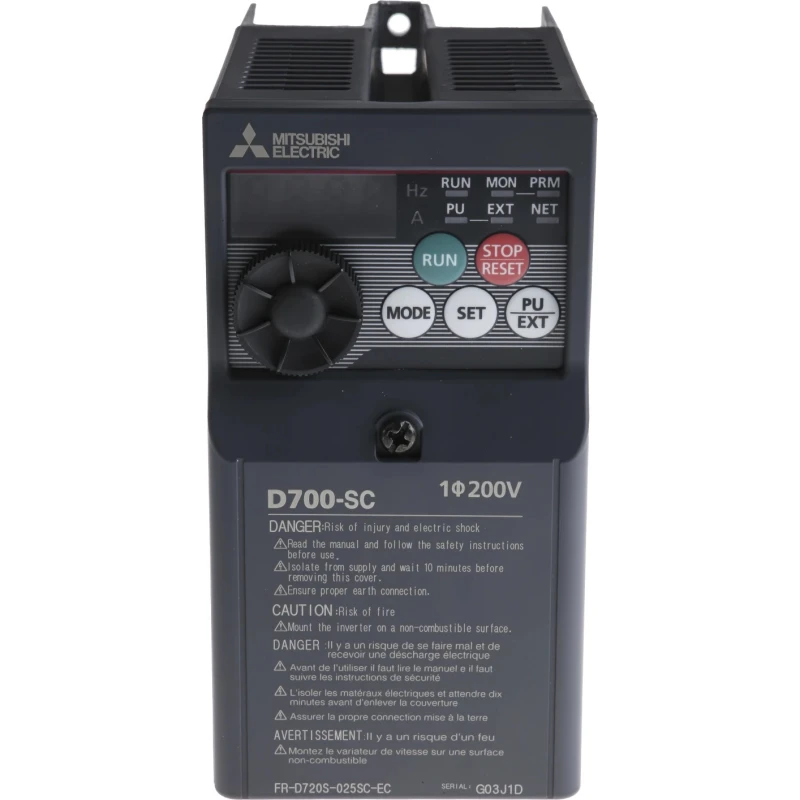

- Includes integrated digital dial and four-digit LED display for parameter access and status monitoring.
- Supports direct PLC connection with sink/source logic selectable transistor outputs.
- Built-in serial RS485 interface enables communication.
- Complies with CE, GOST, RoHS, UL/cUL standards.
- Designed for single-phase 230V supply voltage with a maximum operating temperature of +40°C and a minimum of -10°C.
Product Description
Mitsubishi Electric FR-D720S-025SC-EC is a 400 W single-phase inverter drive designed for precise variable frequency control with vector control technology. It operates on a 230V AC supply delivering a maximum output current of 2.5 A. The compact wall-mount unit measures 128 mm in length, 68 mm in width, and 142.5 mm in depth, featuring an IP20 protection rating for safe indoor use.
This inverter drives induction motors efficiently, making it ideal for industrial automation, including conveyor systems, machining tools, gates, doors, fans, and pumps. Its sensor-less vector control technology provides excellent speed control and torque performance.
The inverter is user-friendly with an integrated digital dial for parameter setting and a four-digit LED display to monitor operational status and alarms. Installation is simplified via integrated spring clamp connections for both power and control wiring, enhancing reliability.
Additional features include a sink/source selectable transistor output for safety input, direct PLC connection without the need for safety relays, serial RS485 interface for communication, and a maximum short-term overload capacity of 200% for 0.5 seconds. It also supports automatic restart after power failure and allows direct connection of an external braking resistor for improved stopping power.
The device meets multiple international standards including CE, GOST, RoHS, UL/cUL, ensuring quality and safety compliance. Operating temperature ranges from -10°C to +40°C, suitable for varied industrial environments. Country of origin is China.
This Mitsubishi Electric Inverter Drive is part of the FR-D720S series, designed for compactness, energy saving, and reliable operation in automation and control gear applications.
The inverter features sensor-less vector control for high-performance motor control. Simple and reliable wiring with integrated spring clamp connectors. Easy parameter setting through the FR-Configurator software and integrated digital dial.
Compliance with multiple international standards for safety and performance. Supports emergency safe stop input compliant with EN 61800-5-2. Maximum short term overload capacity is 200% for 0.5 seconds. Automatic restart capability after power failures enhances operational reliability.
Explore more products in the Automation & Control Gear category at EnvMart for comprehensive industrial automation solutions.
