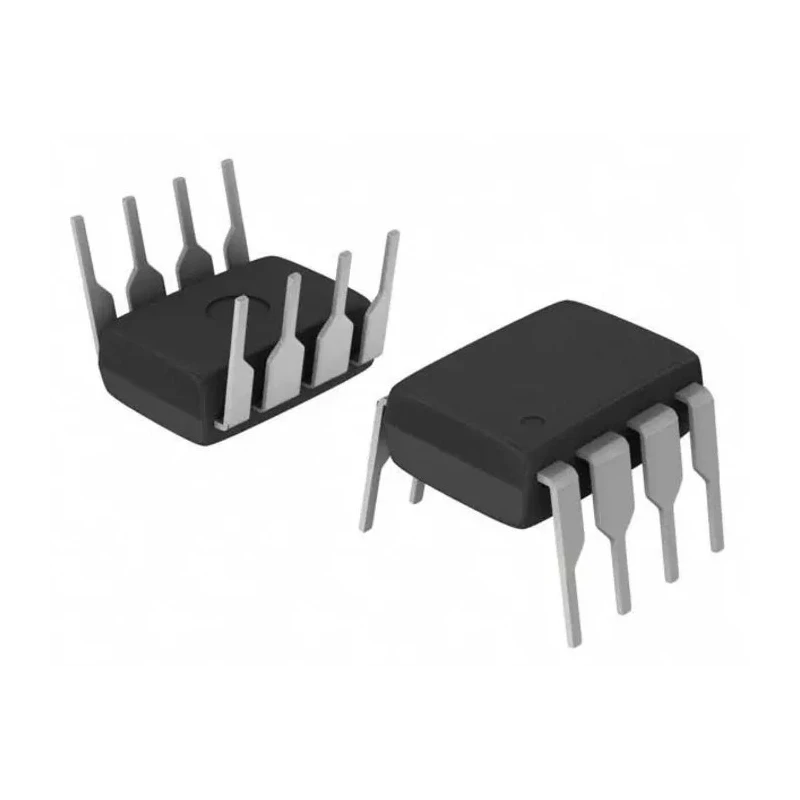

Power Integrations 1-Channel DC/DC Converter IC Fixed 8-Pin DIP-B 36-75V Input 425kHz DPA424PN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 3.68mm |
| Length | 9.83mm |
| Model | DPA424PN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | DPA-Switch |
| Maximum Operating Temperature | 150°C |
| Package Type | DIP-B |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 75V dc |
| Maximum Switching Frequency | 425kHz |
| Standards/Approvals | RoHS, ETSI |
| Minimum Input Voltage | 36V dc |
| Pin Count | 8 |
Key Features
- The device features a through-hole DIP-B package with 8 pins for reliable mounting.
- It operates in a temperature range from -40°C to 150°C, suitable for harsh environments.
- Hysteretic thermal shutdown and built-in auto-restart enhance protection and reliability.
- Includes lossless integrated current limit and input under-voltage/over-voltage shutdown for safe operation.
- The output is fixed type with a single channel output configuration.
- Ideal for telecom, industrial controls, PoE devices, and network equipment power regulation.
- Compact dimensions of 9.83mm length, 6.6mm width, and 3.68mm height facilitate space-saving PCB design.
- Complies with RoHS and ETSI standards ensuring environmental and industry regulation adherence.
Product Description
Power Integrations DPA424PN is a high-performance 1-channel DC/DC Converter IC designed for power management applications requiring 36V to 75V DC input voltage. It offers a fixed output in an 8-pin DIP-B through-hole package, supporting efficient energy conversion with a maximum switching frequency of 425kHz.
This IC features advanced protections such as integrated current limit with lossless sensing, hysteretic thermal shutdown, and input under-voltage/over-voltage shutdown, ensuring safe and reliable operations in demanding industrial, telecom, network, and PoE powered device environments.
The operating temperature range of -40°C to 150°C allows effective use in both industrial and harsh ambient conditions, while the compact package dimensions enable flexible PCB layouts. Through-hole mounting aids in robust mechanical stability and easy replacement during manufacturing.
The DPA424PN is part of the DPA-Switch series, known for tight tolerances on critical parameters like current limit and switching frequency, which simplify circuit design and enhance performance consistency.
Standards compliance includes RoHS and ETSI, demonstrating adherence to environmental and technical requirements critical in professional and industrial applications. The DIP-B package has 8 pins and dimensions of 9.83 mm (L) x 6.6 mm (W) x 3.68 mm (H).
Supports single output fixed voltage configuration ideal for regulated power supply circuits. Designed for use in telecommunications, network line cards, servers, routers, VoIP phones, industrial controllers, and PoE powered devices.
Features integrated protections ensuring long-term reliability and system safety. Wide operating temperature range expands usability for outdoor and industrial applications. This product is categorized under Power Management ICs and specifically DC/DC Converter ICs suitable for industrial and electronics professionals.
Explore more DC/DC converters and Power Integrations products on EnvMart for advanced power management solutions.
