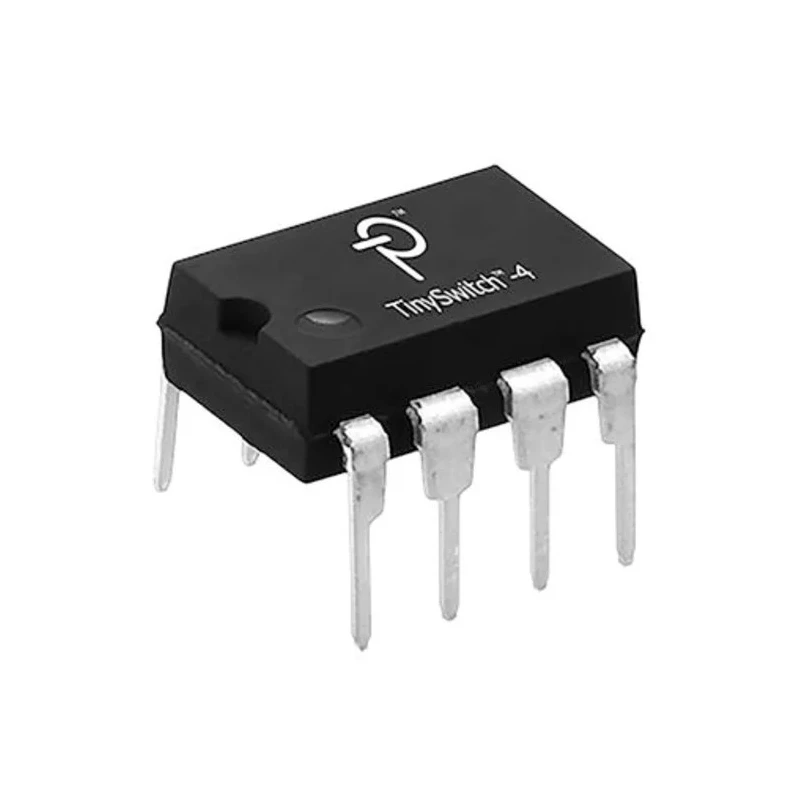

Power Integrations AC/DC Converter 750 mA, 50 V DC, 8-Pin DIP Package TNY284PG

Power Integrations TNY284PG AC/DC Converter is an advanced, energy-efficient solution designed for a broad range of power management applications. Featuring a robust 8-pin DIP package, this converter is equipped to handle a maximum output current of 750 mA and provides output voltages up to 50 V DC.

Compact form factor enables straightforward incorporation into industrial and electronic PCBs. Wide input voltage range from 85V AC up to 265V AC offers flexible integration possibilities for global power requirements. The TinySwitch-4 series employs a high-voltage power MOSFET combined with an ON/OFF flyback controller, ensuring optimal efficiency at no-load and light-load conditions.

Switching frequency of 132 kHz ensures quick transient response suitable for demanding power designs. Through-hole mounting provides stable connectivity for extended operational lifetimes. Integrated frequency jittering minimizes EMI and reduces costs for filtering hardware.

All devices in this series are RoHS compliant, supporting environmentally safe manufacturing practices. No bias winding or additional bias components are required due to self-bias architecture. Accurate hysteretic thermal shutdown protection and auto-restart features deliver reliable operation under adverse conditions.

Applications range from industrial controllers, power management ICs, consumer electronics, and instrumentation, to manufacturing and laboratory automated systems. The converter’s flyback topology and selectable current limit through BP/M capacitor make it ideal for situations requiring precise overload and safety management.

This converter supports mounting in printed circuit boards, commonly used in manufacturing machinery, HVAC controls, laboratory devices, and commercial power supplies. All critical approvals and compliance standards, including RoHS, are maintained.

Suitable for use in industrial, laboratory, and commercial settings. Engineers designing with this converter can take advantage of its wide voltage compatibility, robust protection features, and space-saving package to improve performance and reliability in their designs.

Energy efficient, line-compensated overload power architecture reduces variation across input voltages. Fast transient response and simple ON/OFF operation reduce design complexity. Thermal protection and auto-restart ensure reliability in high-demand environments.
