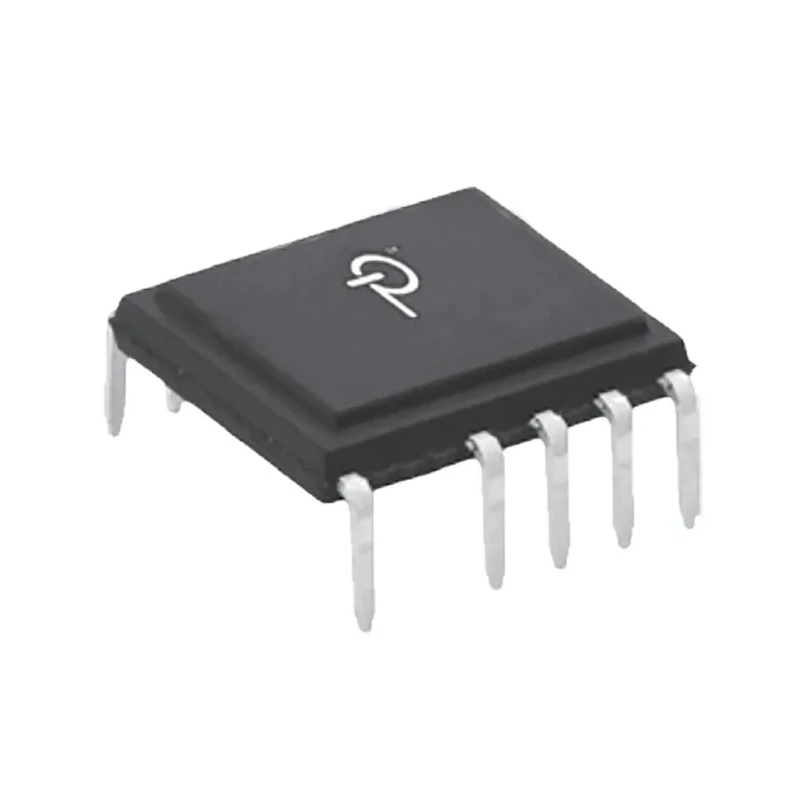

Power Integrations AC/DC Converter, 2.5A, 12V DC, 15W, Flyback, eDIP-12B, 12-Pin, LinkSwitch-HP Series LNK6773V

Name: Power Integrations AC/DC Converter, 2.5A, 12V DC, 15W, Flyback, eDIP-12B, 12-Pin, LinkSwitch-HP Series LNK6773V
Brand: Power Integrations
SKU: 91407
Price: 1.16 USD
Availability: InStock



Category AC/DC Converter Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	2.34mm
Length	10.16mm
Model	LNK6773V
Width	8.89mm
Output Power	15W
Mount Type	Through Hole
Maximum Duty Cycle	66%
Series	LinkSwitch-HP
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	eDIP-12B
Minimum Operating Temperature	-40°C
Switching Frequency	32kHz
Maximum Input Voltage	265V ac
Maximum Output Current	2.5A
Maximum Output Voltage	12V dc
Minimum Input Voltage	85V ac
Pin Count	12
Supply Current	1.3mA

Key Features

Designed for efficient conversion of AC to DC power.
Maximum output current of 2.5A and maximum output voltage of 12V DC.
Employs flyback topology for compact and reliable operation.
Operates with a wide input voltage range from 85V AC to 265V AC.
Provides output power up to 15W.
Features robust protection including over-voltage, under-voltage, and over-temperature safeguards.
Incorporates primary side regulation with ±5% CV accuracy.
12-pin through-hole mounting in eDIP-12B package simplifies PCB integration.

Product Description

Power Integrations LNK6773V AC/DC Converter is an efficient solution for converting mains AC voltage to regulated DC output, offering up to 2.5A at 12V DC and 15W output power. The device is housed in a 12-pin eDIP-12B through-hole package, facilitating easy PCB assembly and heat management for industrial and electronic applications.

With a wide input voltage range between 85V AC and 265V AC, the LNK6773V is suitable for diverse power supply scenarios, especially in environments where voltage stability is critical. Its flyback topology ensures reliable and space-saving operation.

The LinkSwitch-HP family integrates a primary side regulated controller and high-voltage MOSFET, reducing component count and simplifying design. It features ±5% output voltage tolerance, selectable current limit, and comprehensive protection against over-voltage, under-voltage, and over-temperature conditions. The converter supports fast AC reset and programmable shutdown delay, offering flexibility for custom applications.

Designed for efficient conversion of AC to DC power. Maximum output current of 2.5A and maximum output voltage of 12V DC. Employs flyback topology for compact and reliable operation. Operates with a wide input voltage range from 85V AC to 265V AC.

Provides output power up to 15W. Features robust protection including over-voltage, under-voltage, and over-temperature safeguards. Incorporates primary side regulation with ±5% CV accuracy. 12-pin through-hole mounting in eDIP-12B package simplifies PCB integration.

This converter is suitable for use in industrial control, automation systems, embedded power supplies, and electronic equipment requiring reliable AC-DC conversion. Its efficient operation makes it ideal for energy-conscious designs where no-load consumption and high conversion efficiency are required.
