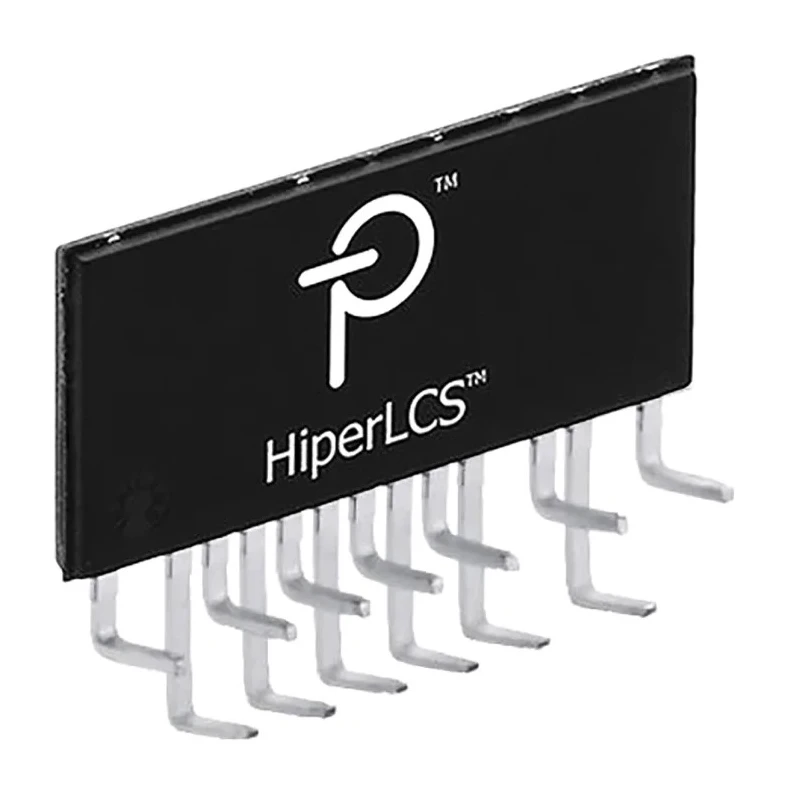

Power Integrations AC/DC Converter 7.7 A 530 V -1.3 V 16-Pin eSIP-16K LCS701LG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 8.25mm |
| Length | 16.59mm |
| Model | LCS701LG |
| Width | 2.06mm |
| Output Power | 170W |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 50% |
| Series | HiperLCS |
| Topology | LLC Half Bridge |
| Maximum Operating Temperature | 150°C |
| Package Type | eSIP-16K |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 15V |
| Maximum Output Current | 7.7A |
| Maximum Output Voltage | 530V |
| Minimum Input Voltage | 11.4V |
| Pin Count | 16 |
| Supply Current | 5.4mA |
| Minimum Output Voltage | -1.3V |
Key Features
- High efficiency offline AC/DC conversion with LLC half bridge topology.
- Supports maximum input voltage of 15 V and output power of 170 W.
- Operates reliably in temperatures ranging from -40°C to 150°C.
- Compact dimensions of 16.59 mm length, 8.25 mm height, and 2.06 mm width.
- Incorporates multiple protections including under-voltage, over-voltage, over-current, short-circuit, and over-temperature.
- Features programmable brown-in/out thresholds and programmable soft-start timing.
- Includes integrated high-side and low-side gate drivers and two power MOSFETs in half-bridge configuration.
- Designed for simplified PCB layout and reduced external component count.
Product Description
Power Integrations LCS701LG is a high-performance AC/DC converter designed for efficient power management in electronic systems. This component integrates a resonant half bridge LLC topology within a compact eSIP-16K package, offering high integration with a multifunction controller, gate drivers, and power MOSFETs.
Operating at a maximum input voltage of 15 V and delivering up to 7.7 A output current and 170 W output power, the LCS701LG is ideal for medium power offline conversion applications. Its operational temperature range from -40°C to 150°C ensures reliability in harsh industrial environments.
The device features programmable brown-in/out thresholds and hysteresis, under-voltage and over-voltage protections, programmable over-current and soft-start settings, as well as over-temperature and short-circuit protections, enhancing system robustness.
Compact dimensions and through-hole mount type facilitate easy integration and efficient PCB layout. This series supports a maximum duty cycle of 50% and nominal steady-state switching at up to 500 kHz.
Applications include industrial power supplies, electronic equipment requiring isolated power conversion, and other scenarios demanding high efficiency and reliability in power management ICs.
High integration reduces external component count and PCB area. Advanced protections improve device and system safety. Compact eSIP-16K package suitable for through-hole mounting. High switching frequency enables efficient power conversion.
Designed for power supply designs up to 400 W. Explore more power management solutions and AC/DC Converters from Power Integrations in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LCS701LG has a maximum output power of 170 W.
It operates reliably in temperatures ranging from -40°C to 150°C.
The maximum input voltage for this model is 15 V.
This unit can deliver a maximum output current of 7.7 A.
The dimensions of this model are 16.59 mm in length, 8.25 mm in height, and 2.06 mm in width.
It supports through-hole mounting type.
This AC/DC converter utilizes an LLC half bridge topology.
It incorporates under-voltage, over-voltage, over-current, short-circuit, and over-temperature protections.
The maximum output voltage is 530 V.
The supply current for this model is 5.4 mA.
The maximum duty cycle is 50%.
It is suitable for industrial power supplies and electronic equipment requiring isolated power conversion.
