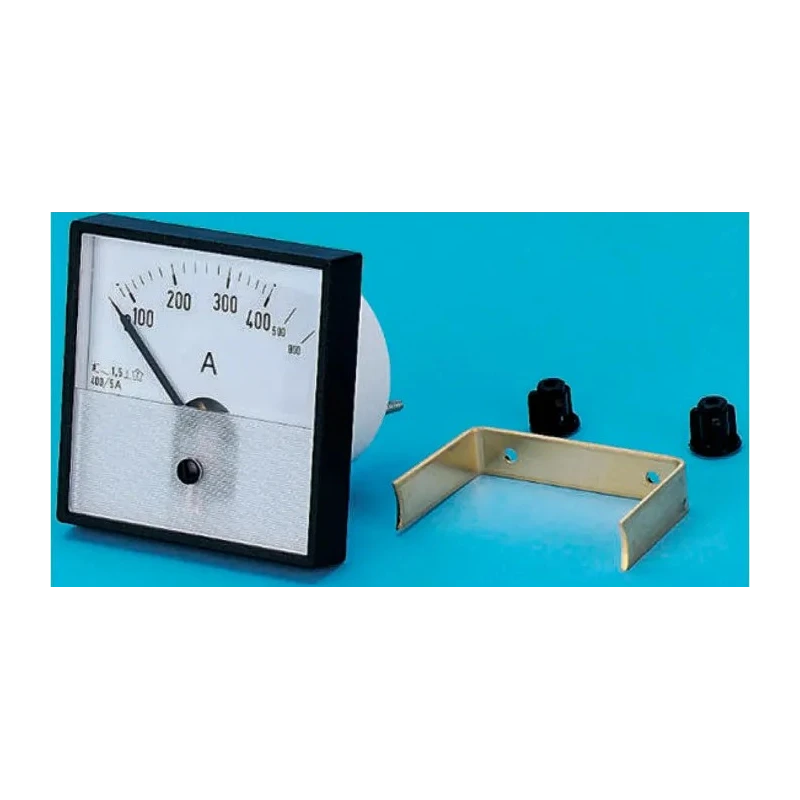

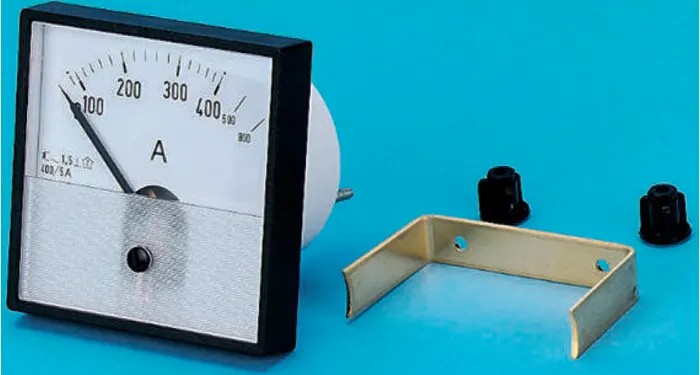

HOBUT Analogue Panel Ammeter AC/DC 100 A with Horizontal Scale PD72MIS5A2/2-001 0/1000/2000A

HOBUT PD72MIS5A2/2-001 0/1000/2000A Analogue Panel Ammeter is a robust electrical measurement instrument designed for industrial and commercial panel applications. This AC/DC ammeter supports current measurement up to 100 A and is designed to fit standard 72 x 72 mm DIN panel cutouts.

The meter features a horizontal 90° scale which is easily readable, making it well-suited for equipment monitoring and control tasks. It belongs to accuracy class 1.5 according to BS89 IEC51, ensuring reliable readings in various electrical environments.

Constructed with a flame retardant case conforming to UL94V0 standards, this instrument enhances operator safety in industrial settings. The protection class IP52 at the front panel safeguards against dust ingress and water splashes, suitable for challenging installation environments.

The device installs via a single hole fixing with a 'U' clamp and an anti-rotation pin for secure mounting. Alternatively, a 4-point M3 fixing option is available, offering flexibility for panel assembly.

The ammeter's overload capacity is twice its rated current, clearly marked within brackets on the scale to prevent damage from transient current spikes.

This product is ideal for usage in industrial automation, electrical control panels, process control environments, and laboratory equipment requiring dependable current measurement of AC and DC circuits.

Features a horizontal 90° scale and 72 x 72 mm DIN size panel mount. Accuracy class 1.5 for precise electrical current monitoring. Flame retardant UL94V0 case enhances safety compliance. Protection class IP52 front face prevents dust and splash damage.

Flexible mounting with 'U' clamp or 4-point M3 fixing options. Overload tolerance of twice the rated current supports durability. Designed for industrial and process control applications. Explore the range of HOBUT ammeters at EnvMart for reliable industrial measurement solutions.
