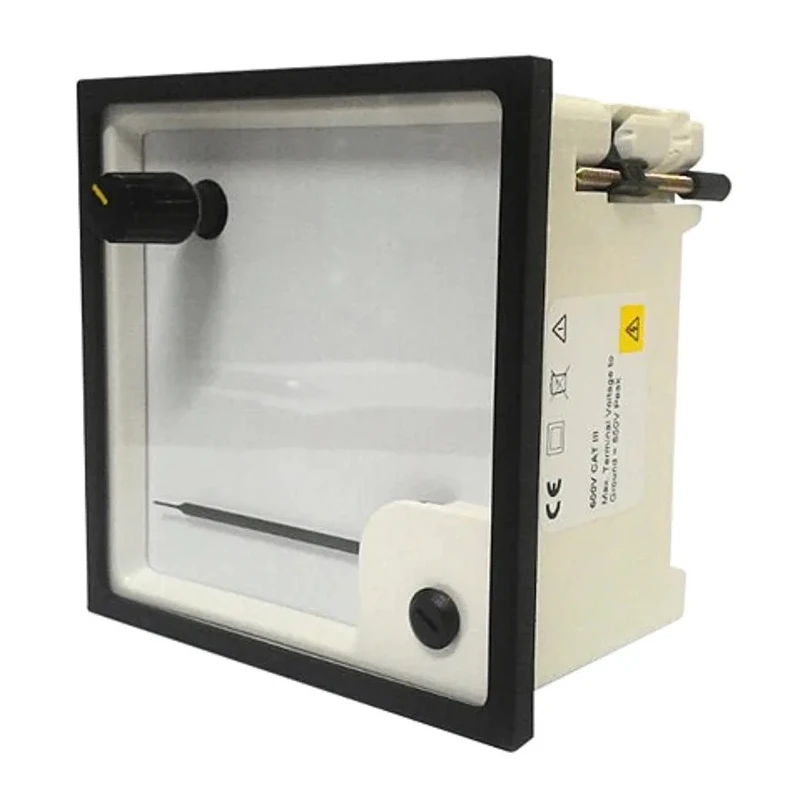

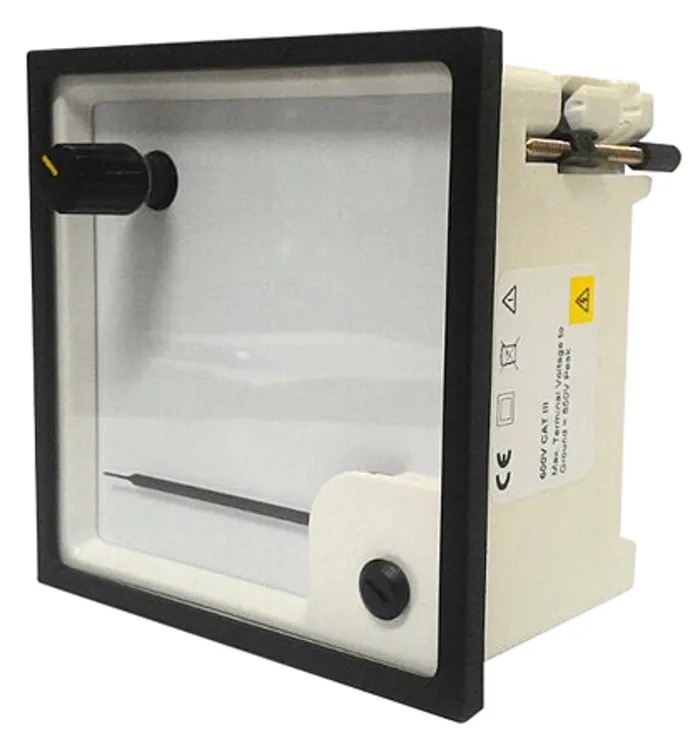

Sifam Tinsley Analogue Panel Ammeter 5 A AC Moving Iron 92.08 mm x 92 mm SS94-I0312N1CA40ST

Free Delivery in India | Lowest Global Shipping Charges

Sifam Tinsley Analogue Panel Ammeter 5 A AC Moving Iron 92.08 mm x 92 mm SS94-I0312N1CA40ST

Name: Sifam Tinsley Analogue Panel Ammeter 5 A AC Moving Iron 92.08 mm x 92 mm SS94-I0312N1CA40ST
Brand: Sifam Tinsley
SKU: 193288
Price: 36.08 USD
Availability: InStock



Category Analogue Panel Ammeter Brand Sifam Tinsley Condition New

Specifications

Country of Origin	India
Brand	Sifam Tinsley
Model	SS94-I0312N1CA40ST
Depth	53mm
Series	EQ 72/96
Maximum Operating Temperature	55°C
Current Type	AC
Minimum Operating Temperature	-10°C
Standards/Approvals	IEC 529, DIN 40050, IEC 51, 2004/108/EC, IEC 1010, DIN 43701, 2006/95/EC, DIN IEC 61554, DIN 43807, UL 94 V-0, VDE 0110, VDE 0410, DIN EN 60051, DIN 46200/46282, 93/68/EEC, DIN 43802, VDE/VDI 3540, DIN 43718
Cutout Height	92.08mm
Cutout Width	92mm
Maximum Measurement	600 V
Moving Element	Moving Iron
Maximum Ampere Value	5 A

Key Features

Designed for precise AC current measurement using moving iron technology.
Compact panel size with 92.08 mm height and 92 mm width cutout dimensions.
Robust polycarbonate housing suitable for industrial use.
Operating temperature range from -10°C to 55°C ensures reliability.
Complies with multiple international standards including IEC and DIN certifications.
Maximum current measurement capability of 5 A and voltage up to 600 V.
Easy installation with swivel screws and a clear linear scale for accurate readings.

Product Description

Sifam Tinsley SS94-I0312N1CA40ST is a high-quality analogue panel ammeter designed for reliable AC current measurement up to 5 A using moving iron technology. The instrument features a cutout size of 92.08 mm height by 92 mm width, making it suitable for panel mounting in industrial environments.

Housed in a durable glass-filled polycarbonate case, this ammeter withstands operating temperatures from -10°C to 55°C, supporting consistent performance. It offers near-linear scale readings with a knife edge pointer, facilitating ease of interpretation for operators in manufacturing, electrical, automation, and control gear applications.

The meter complies with numerous stringent international standards, including IEC 529, DIN 40050, IEC 51, and VDE norms, ensuring conformity and safety in demanding industrial settings. Its maximum measurement capacity is 600 V, further broadening its applicability across process control, electrical panels, and automation systems.

Installation is convenient with swivel screws enabling secure mounting. The selector switch panel meter design allows use in 3-phase, 3 & 4 wire voltage and current measurements across frequencies from 15 to 400 Hz, making it versatile for various industrial automation requirements.

Designed for precise AC current measurement using moving iron technology. Compact panel size with 92.08 mm height and 92 mm width cutout dimensions. Robust polycarbonate housing suitable for industrial use. Operating temperature range from -10°C to 55°C ensures reliability.

Complies with multiple international standards including IEC and DIN certifications. Maximum current measurement capability of 5 A and voltage up to 600 V. Easy installation with swivel screws and a clear linear scale for accurate readings.

This analogue panel ammeter fits well within various industrial, electrical, automation, manufacturing, and process control environments where accurate current measurement is critical. It is manufactured in India to high-quality standards and is suitable for panel integration requiring robust, consistent AC current monitoring.

Discover more products in the Analogue Panel Ammeter category for comprehensive solutions in industrial instrumentation at EnvMart.
