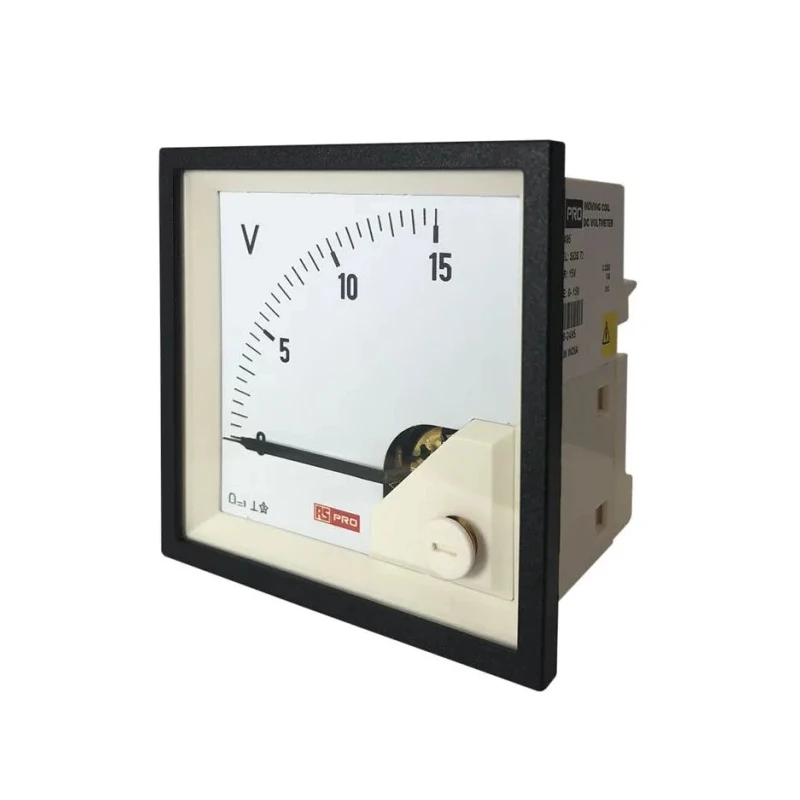

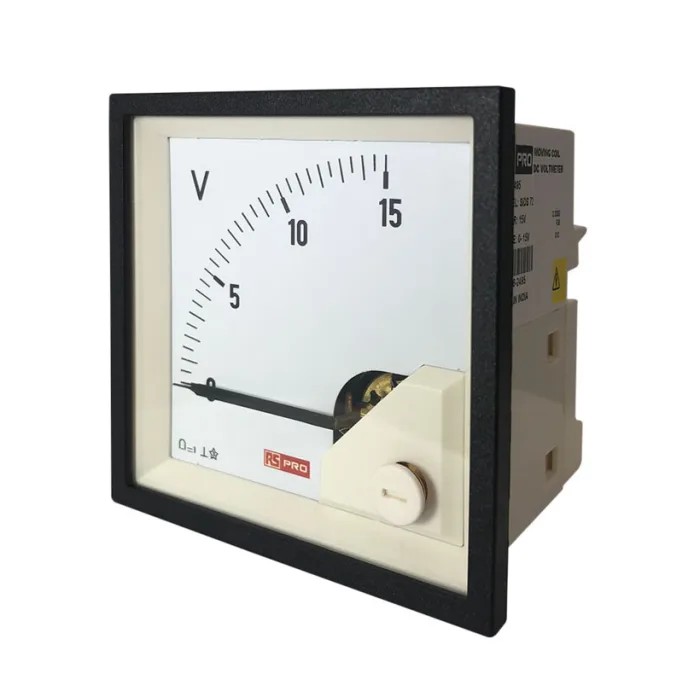

RS PRO Analogue Panel Ammeter DC 68mm x 68mm Cutout with Knife-Edge Pointer 186-2495

RS PRO 186-2495 Analogue Panel Ammeter DC is a reliable industrial instrument designed for accurate direct current measurement in a variety of applications such as electrical, process control, and industrial automation systems. Its 68mm x 68mm cutout size makes it compatible with standard panels and control consoles.

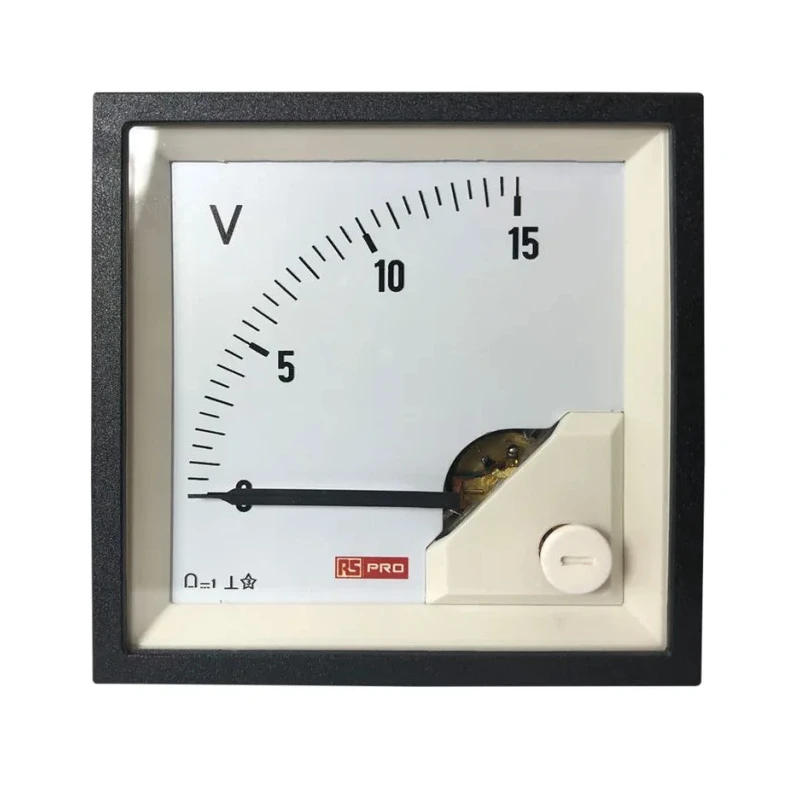

The meter employs a permanent magnet moving coil mechanism, incorporating an aluminium coil suspended on pivots with a hairspring and jewel mechanism to ensure consistent and precise pointer movement. The knife-edge type pointer deflects from 0° to 90°, providing clear and accurate readings on a linear scale calibrated down to zero.

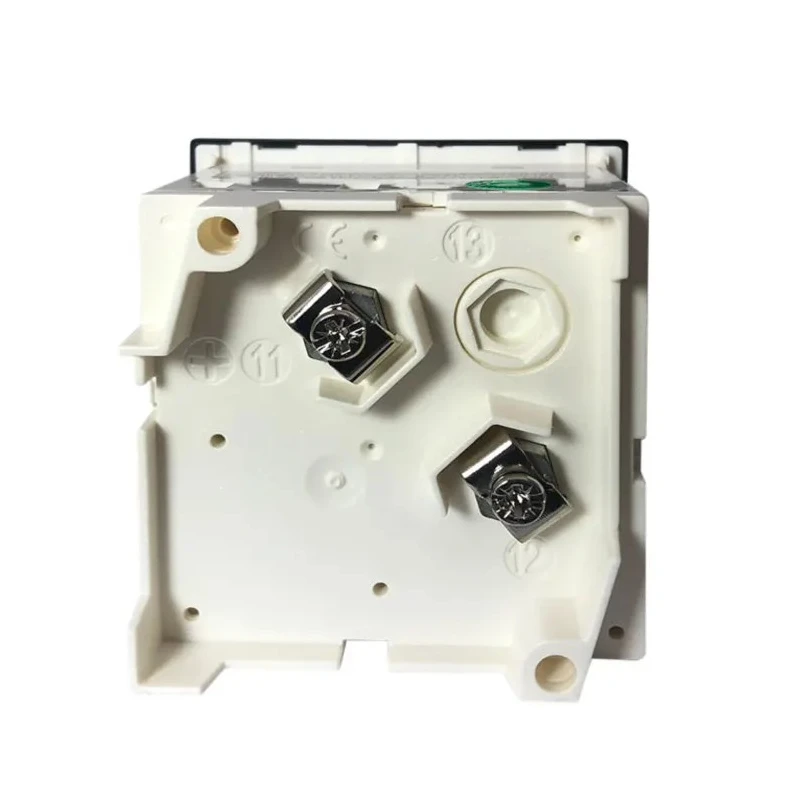

This panel ammeter supports DC voltmeter nominal use ranges from 15mV up to 600V, and higher currents can be measured using separate shunts mounted on the rear of the unit. The device withstands shock pulses up to 15g for 11 milliseconds, ensuring durability in industrial environments.

The moulded polycarbonate case offers a square design suitable for integration into machinery consoles and control gear panels while providing protection and safety. Operating temperature range from -10°C up to 65°C allows wide industrial deployment. It also features overload handling capability of 1.2 times the nominal voltage continuously, and relative humidity tolerance of less than 75% annual average, non-condensing.

This ammeter meets an array of international standards and approvals, including ISO 20653:2006-08, DIN IEC 61554, EN 61010, IEC 529, 2014/35/EC (low voltage directive), 2014/30/EC (EMC directive), VDE 0100-410:2018-10, UL 94 V-0, and IEC 61010 certification. The product is IP52 rated for ingress protection.

The RS PRO 186-2495 model is manufactured in India, confirming origin conformity. Its robust construction and compliance with multiple global standards make it a fitting choice for industrial, laboratory, manufacturing, and electrical automation applications where accurate DC current monitoring is critical.

Operates on direct current with a linear calibrated scale. Features durable permanent magnet moving coil mechanism. Equipped with a knife-edge pointer for precise readings. Cutout dimensions are 68mm height and 68mm width for standard panel mounting.

Designed for operating temperatures from -10°C to 65°C. Shock resistant to 15g pulses for reliable industrial use. Measures DC voltage ranges between 15mV to 600V nominal range. Overload capacity is 1.2 times nominal voltage continuously.
